All-weather design, phased-inverted low frequency radiated two-way loudspeaker system;
The surface of the speaker is sprayed with waterproof polyurea paint, and the back of the metal mesh is pasted with acoustic transparent cotton;
The top of the speaker is equipped with three hanging holes, which can be hung vertically with hanging rings and rope accessories in conjunction with the hanging holes on the back;
The speaker is equipped with two hanging holes on the back and sides, and can be wall-mounted with the D3A bracket;
The bottom of the speaker is equipped with a slot and can be wall-mounted with a D5A bracket or floor-mounted with a D6A tripod.

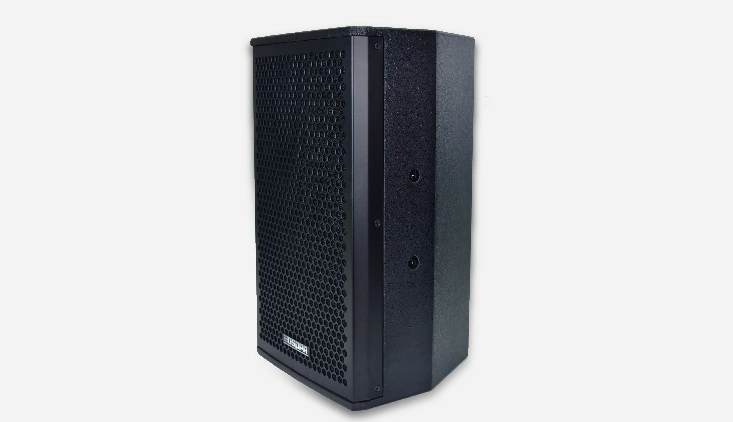

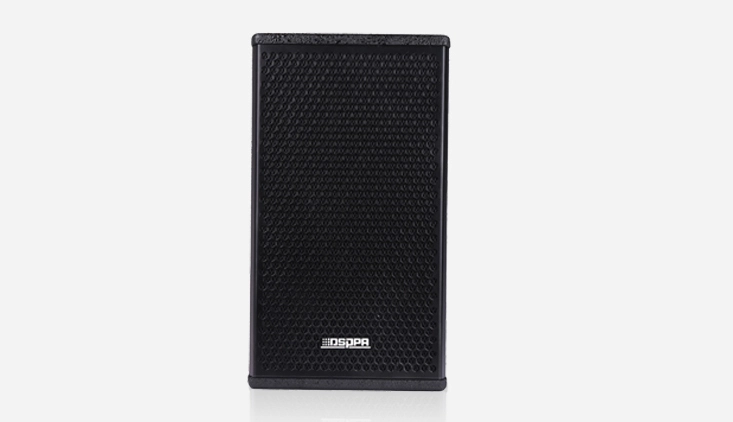

The D6563F is a professional 8" two-way loudspeaker designed for clear, powerful sound reinforcement. It features an all-weather, waterproof polyurea-coated cabinet with a phase-inverted design for enhanced low-frequency performance. Multiple mounting options (wall, ceiling suspension, or floor stand) provide flexible installation, while its high sensitivity and 90° × 40° coverage ensure strong, even sound distribution for various fixed installation applications.
Model | D6563F |
Unit | 8" Bass×1, 1.35" Treble×1 |
Frequency Response (±3dB) | 80 Hz -18,000Hz |
Sensitivity | 95±2dB |
Max. SPL | 117±2dB |
Input Impedance | 8Ω |
Rated Power | 150W |
Directivity (H×V) | 90°× 40° |
Dimensions (H×W×D) | 430×240×235mm |
Weight | 9.7kg |
