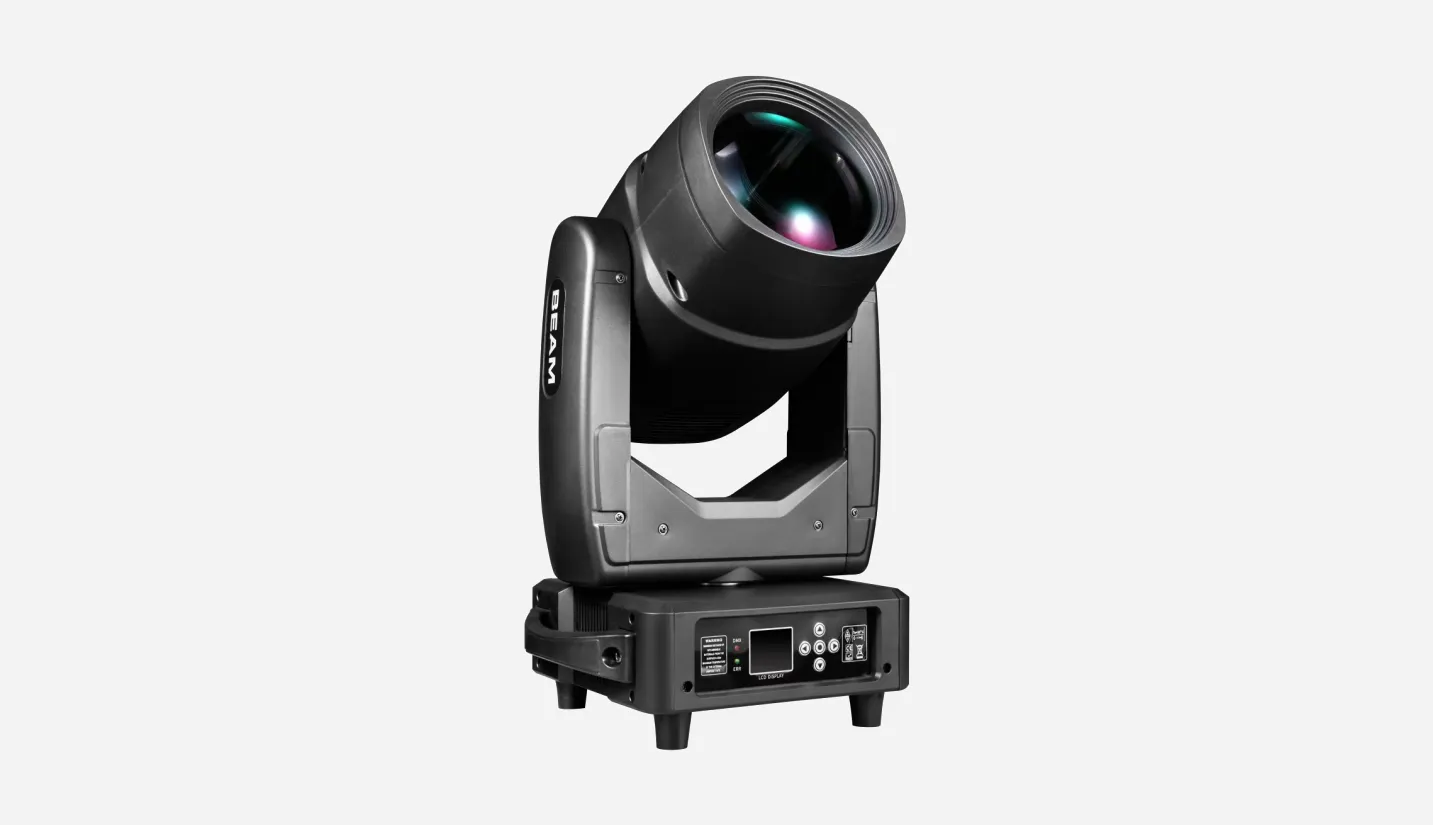

380W Beam Moving Head SL380E

Equipped with RDM protocol and a color touch screen, supporting both Chinese and English, with button/knob dual operation for easy handling.
X-axis 540° / Y-axis 270° 16-bit high-precision scanning, with automatic step-loss correction, ensuring accurate and stable beam positioning.
380W light source with 7800K color temperature, 2000-hour lamp life, providing bright and high-quality illumination.
13 pattern + 1 white circular pattern wheel, supporting chase and strobe effects; dynamic effects are rich and easily switchable.
14 color + white color wheel, supporting half/full color and rainbow chase; fine color adjustment allows precise color control.
Dual prism configuration: 8-facet prism + 8+16+24 honeycomb prism, bidirectional rotation and stacking for full beam splitting and layered effects.
1.5–60m high-definition focus, independent haze + six-color seven-color mirror; multiple optical effects adapt to different scenarios.
0–100% smooth dimming, multi-mode high-speed strobe (pulse/gradual/random), with freely adjustable speed.
Supports DMX / auto / sound / scene modes; 10 custom scenes can cycle automatically.
RDM remote address setting supported, enabling efficient batch commissioning of multiple units with stable signal transmission.
X/Y axis reversible / zero-point offset adjustment + fine-tuning channels to accommodate various installation layouts.
Real-time temperature monitoring + fan fault self-check, with automatic overheat protection for safer operation.
Intelligent lamp protection with start-stop intervals; three lighting modes suit different power environments.
Data hold without DMX signal; parameters are automatically saved, ensuring lighting effects remain intact during unexpected disconnections.
Multiple installation options: horizontal / tilted / inverted, with safety rope assistance for stable and flexible mounting.
Comprehensive self-diagnosis + history tracking; cumulative usage hours of light source and fixture can be checked for precise after-sales maintenance.
AC100–240V wide voltage compatibility, 550W power, suitable for various domestic and international venue power requirements.

Get Quotation

DETAILS

SPECS

The SL380E 380W Super Beam Moving Head is a professional stage lighting fixture equipped with the RDM protocol and a color display with touch control. With a total power consumption of 550W, it utilizes a dedicated 380W lamp source featuring an approximate 2,000-hour lifespan and a 7800K color temperature, making it suitable for a wide range of professional applications such as stage performances, venue illumination, and live events. The fixture supports both DMX512-A and RDM protocols and features a 16-bit high-precision X/Y scanning system. Combined with comprehensive optical components and flexible operating modes, it delivers diverse and precise beam effects. In addition, it incorporates complete self-diagnosis, position correction, and protection mechanisms. Offering user-friendly operation and flexible installation, the SL380E balances performance, reliability, and safety to meet the practical demands of professional stage lighting applications.

Specifications of Indoor 380W Beam Moving Head SL380E

Model	SL380E
Rated Voltage	AC100-240V, 50/ 60Hz
Power Consumption	550W
Light Source	380W Lamp
Lamp Lifespan	Approx. 2,000 Hours
Color Temperature	7800K
Fixed Gobo Wheel	13 Gobos + 1 Open White; Supports Rotation, Shake, and Bi-directional Effects
Color Wheel	14 Fixed Colors + White; Supports Half-Color, Full-Color, and Bi-Directional Rainbow Effects with Variable Speed
Prism	1 × 8-Facet Prism; 1 × 8+16+24 Honeycomb Prism; Bi-Directional Rotation with Dual-Prism Overlay
Beam Angle	0–1.8°
Frost	Independent Frost Effect + Six-Color Multicolor Mirror Effect
Focus	1.5–60m Adjustable High-Definition Focus
Strobe	High-Speed Strobe with Adjustable Speed
Dimming	0–100% Smooth Linear Dimming
Pan Range	540° with 16-Bit Precision Scanning
Tilt Range	270° with 16-Bit Precision Scanning
Position Correction	Automatic Pan/Tilt Position Correction for Step-Loss Errors
