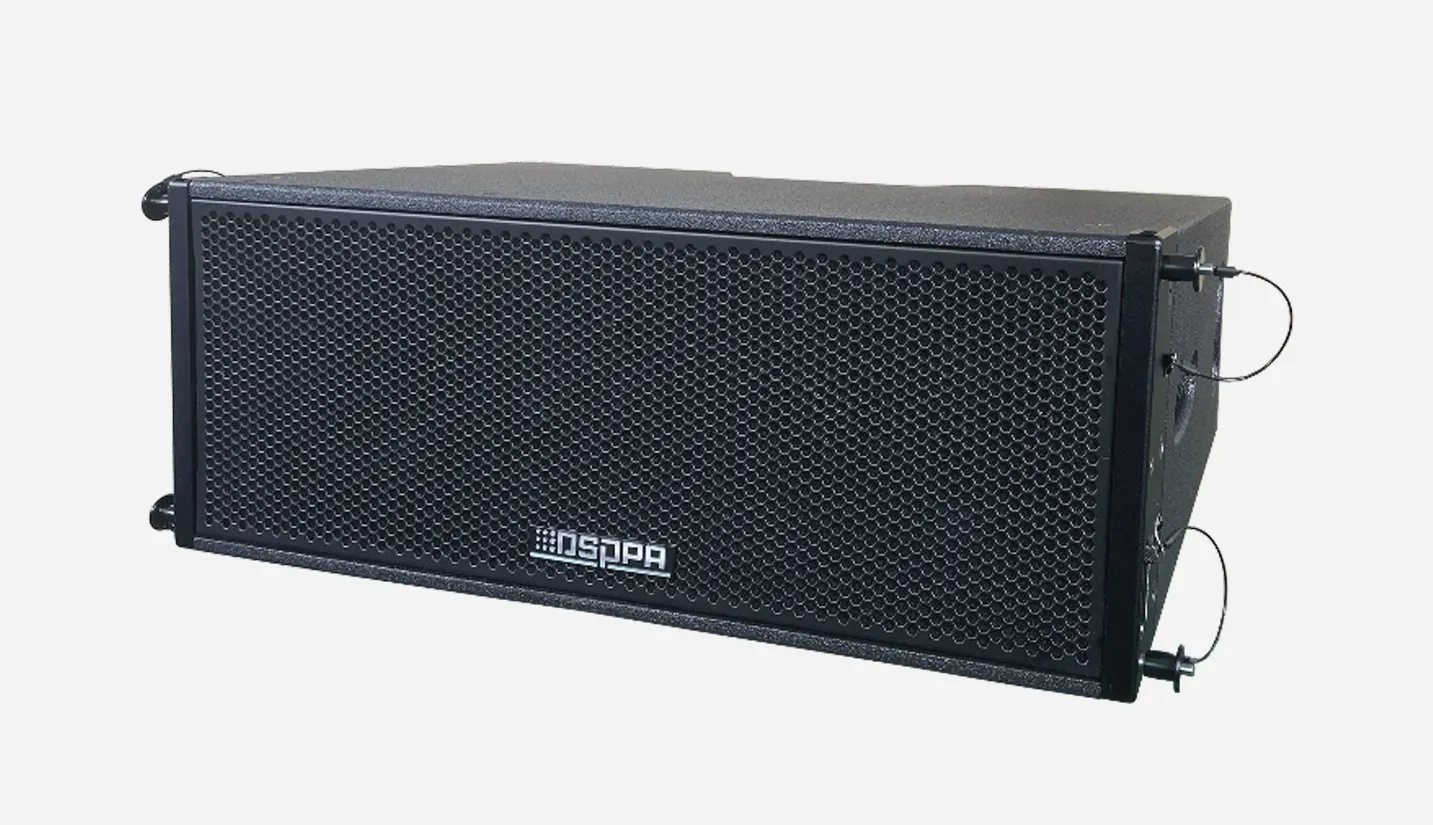

.webp "650W Passive Line Array Full-Range Speaker")
Features two high-power 10-inch woofers and one 75 mm compression driver, integrated with a precision crossover network for optimized acoustic performance.
The cabinet is made of professional-grade high-density plywood and finished with a wear-resistant polyurea coating, making it suitable for various indoor venues such as auditoriums and multifunction halls.
Quick angle-adjustment mechanisms on both sides of the cabinet enable fast flying or stacking of multiple units, forming continuous array coverage for long-distance and uniform sound distribution.
The PL210 is a compact yet powerful line array speaker, delivering clear and balanced sound across a wide frequency range (50 Hz–18 kHz). With 2×10" low-frequency units and 1×3" high-frequency unit, it achieves high sensitivity and a maximum SPL of 128 dB, with 650 W rated power, making it ideal for indoor venues such as auditoriums and multi-purpose halls. Its durable construction and flexible installation design ensure reliable performance in various professional applications.
Model | PL210 |
System Configuration | 2×10" LF, 1×3" HF |
Frequency Response (±3dB) | 50Hz–18kHz |
Sensitivity | 100±2dB |
MAX. SPL | 128±2dB |
Input Impedance | 8Ω |
Rated Power | 650W |
Coverage (H×V) | 120°×10° |
Dimensions (H×W×D) | 303×740×437mm |
Net Weight | 31kg |
