Ceiling Array Conference System D7702(D7702M+D7702P)

AI-powered immersive audio delivers natural and seamless sound reinforcement for a lifelike communication experience.
Adapts to different venues and noise conditions, ensuring consistently clear and full-bodied sound.
Supports seamless hybrid meetings with synchronized on-site and remote audio communication.
DNN-based AI noise reduction eliminates over 300 types of environmental noise for clean voice pickup.
Provides natural, full-range sound with smooth coverage and freedom of movement.
Delivers over 20 dB of gain to ensure clear speech even in large or acoustically challenging spaces.
AI feedback cancellation effectively prevents howling and distortion for stable system performance.
Ultra-low latency of less than 22 ms ensures real-time, perfectly synchronized audio.
Focuses on human voice while filtering out unwanted sounds for a clean communication environment.
Supports cascading deployment to easily expand coverage for medium to large venues.
Defines precise acoustic zones to enhance key speakers while suppressing irrelevant noise.
IP-based architecture enables flexible deployment, high-quality transmission, and unified management.
Automatically adjusts audio parameters to match different meeting scenarios and environments.
Offers versatile connectivity with multiple digital and analog interface options.
Built-in amplifier simplifies system design and reduces installation complexity.
User-friendly operation with remote control and clear status indication.
PC software enables easy configuration, monitoring, and system upgrades.
Fast plug-and-play deployment with minimal cabling and quick system setup.
Supports easy maintenance with remote management and online firmware updates.

Get Quotation

DETAILS

SPECS

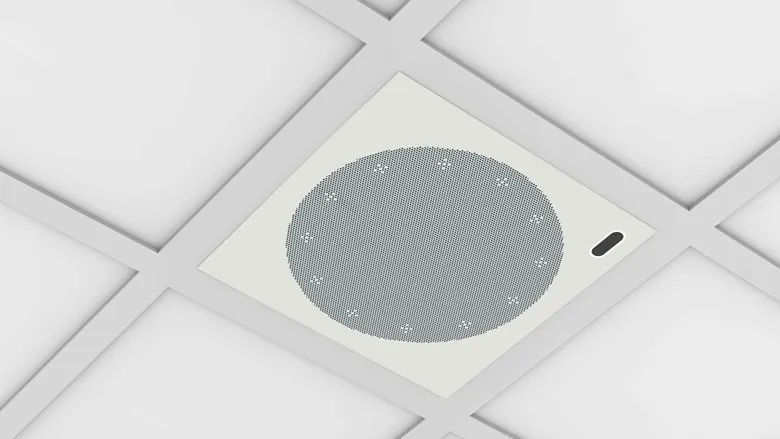

High-End Ceiling Microphone

The D7702 Ceiling Array Conference System is an innovative conferencing solution that simultaneously supports seamless on-site sound reinforcement, remote conferencing, and AI-powered meetings. It is designed to deliver clear, natural, and pleasant speech for a wide range of venues, including conference halls, meeting rooms, auditoriums, command and dispatch centers, lecture halls, and training centers. Built on an IP-based intelligent network architecture, the system is highly integrated, with all components powered by advanced AI voice processing and AI-powered seamless sound reinforcement technologies.

Unlike traditional public address systems, this system delivers an immersive and highly realistic audio experience. With ultra-low latency (<22ms), it ensures perfectly synchronized audio transmission, eliminating any perceptible delay that could distract participants. The system provides outstanding sound reinforcement gain (over 20 dB for local amplification), ensuring every word is heard clearly throughout the venue. Its microphone array captures sound from a distance with exceptional clarity, enabling highly detailed voice transmission both on-site and in remote meetings.

The D7702 Smart Conference System is designed for full-scenario adaptability. It easily accommodates a wide range of medium to large venues while effectively handling varying background noise conditions. With the ability to suppress and eliminate over 300 types of background noise, the system delivers rich, dynamic, and highly intelligible sound. With its full-bodied and natural sound reproduction, the system creates an experience as if the speaker were standing right beside you.

Specifications of Ceiling Array Conference System D7702

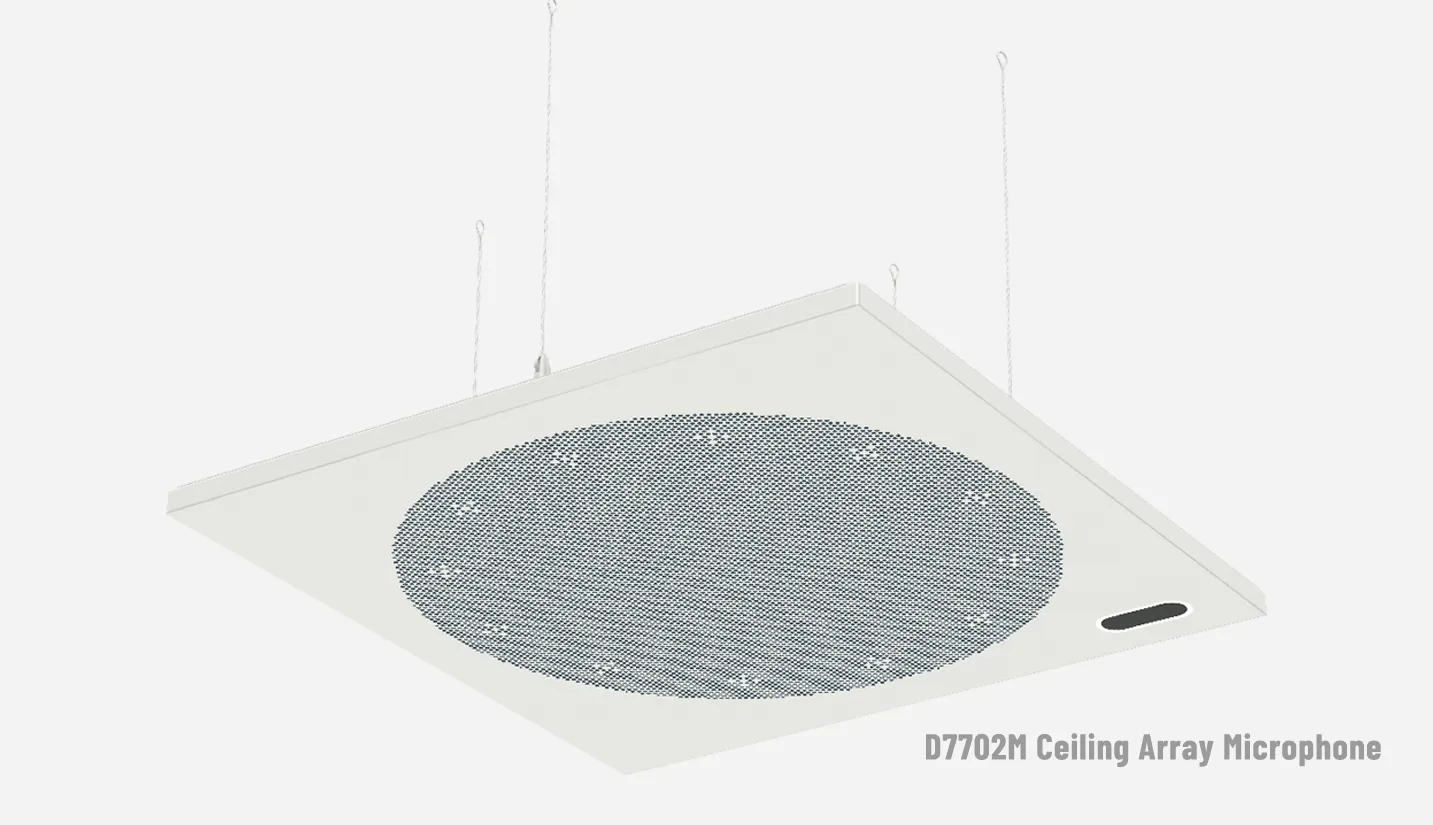

Model	D7702M
General Specifications	Built-in Microphones	104 Digital MEMS Microphones
	Optimal Pickup Radius	8m
	Intelligent Noise Reduction	Supports 300+ Noise Types
	Cascade	IP Cascade
	Acoustic Zone (Audio Fence)	User-configurable
	PC Control Software	Yes
	Infrared Remote	Yes
Voice Technical Parameters	AI Noise Reduction	Supported	Supports 300+ noise types
	AI Reverberation Suppression	Supported	RT60< 1.5s
	AI Echo Cancellation	Supported	65dB
	AI Full-Duplex	Supported
	AI Acoustic Zone	Supported	30 dB suppression outside zone
	AI Noise Suppression	Supported	40dB
	Intelligent Mixing	Support
Audio Parameters	Audio Characteristics	Distributed Intelligent Automatic Pickup And Mixing
	Sampling Rate	48KHz
	Max. Background Noise Suppression	40dB
Microphone	Sensitivity	-37dBv /94dB SPL @1KHz
	Microphone Type	104 MEMS Microphones Array
	Beamforming	Hundreds of Beams
	IP Audio	Supported
	Frequency Response	50Hz-22kHz
	SNR	66dB(20Db (SPL@ 94dB,-weighted)
Cascade	Cascade Quantity	Up to 8
	Cascade Method	Distributed Cascade Technology
Interface	Type-C Port	1
	Phoenix Balanced AUX Port	AUX IN / OUT
	RS232 Communication Port	1
	RJ45 Network Port	2
	DC54V Power Interface	1
Indicator Light	Operation Status Indicator	White LED Steady on for Normal Operation, Red LED Steady on for Microphone Mute
	Identification Indicator	White LED Steady on
Operating Temperature	0°C–50°C (in Operation)
Storage Temperature	-10～-50°C
Product Color	Elegant White
Product Dimension	596×596×52.5mm
Inner Package Dimensions	712×712×132mm
Outer Package Dimensions	730×730×160mm
Net Weight	4.34kg
Power Supply Mode	PoE or Power Adapter
Installation Method	Ceiling Mount / Suspended
Accessories	Remote Control ×1, User Manual ×1, USB-C Cable ×1 (1.5 m), RJ45 Cable ×1 (10 m), Suspension Kit ×1

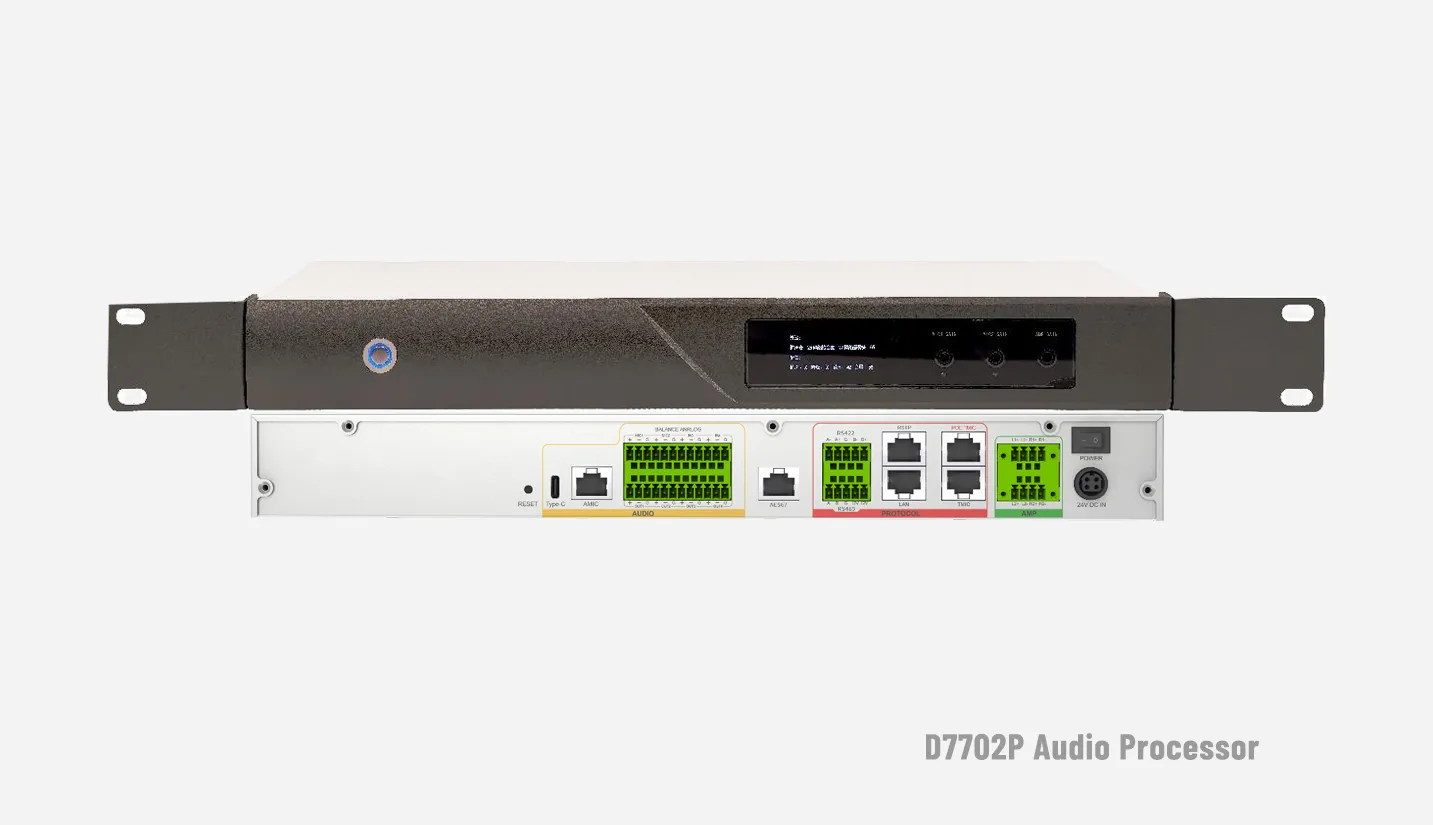

Model	D7702P
AI-AFC	Network Speaker Output < 22 ms
Amplification Delay	Amplification Delay < 20 ms; Full-Link Up/Down Delay < 70 ms
Amplification Transmission Gain	> 20 dB
AI Reverberation Suppression	RT60 < 1.5 s
AI Noise Reduction	Noise Types Eliminated > 300
AI-AEC	Echo Return Loss > 65 dB
Line In SNR	2 × Mic In (Adjustable Analog Gain), 2 × Line In; 105 dB
Line Out SNR	2 × Stereo Channels; 109 dB
Amplifier Output / Power	4 × 10 W @ 4 Ω or 2 × 20 W @ 4 Ω; Adjustable Analog Gain (-15 dB, 0)
Power Supply	DV24V / 5A
Max. Power Consumption	120 W (PoE + Full Amplifier Load)
Interfaces	RS422, RS485, USB-A, USB-C, Proprietary Protocol Network Port, Standard Protocol Network Port, Line In/Out
Product Dimension	1U, 330 × 217.3 × 44.5 mm (Excluding Foot Pads)
Net Weight	Approx. 2.62 kg
Operating System	Supports Linux (Buildroot) / Android 14
Operating Temperature	0 °C ~ +60 °C
Storage Temperature	-20 °C ~ +75 °C
Relative Humidity	≤ 65 %
ESD Protection	Air Discharge: 8 kV, Contact Discharge: 4 kV 4KV
