Complete Mobile Active Array Speaker Set LAM1432 LAM1432SA

  • A small line array speaker system with built-in processor (DSP).

  • Small in size, beautiful in shape, equipped with special flight case, with strong mobility.

  • With integrated design and installation, easy to use.

  • Adopt wear-resistant surface treatment, with all-aluminum hanging parts.

  • The system is suitable for small mobile performances, stadiums, theaters, bars, banquet halls and other places.


Datasheet
Get Quotation
DETAILS
SPECS
Complete Mobile  Active Array Speaker Set
Complete Mobile  Active Array Speaker Set
Complete Mobile  Active Array Speaker Set
Complete Mobile  Active Array Speaker Set
Complete Mobile  Active Array Speaker Set
Complete Mobile  Active Array Speaker Set

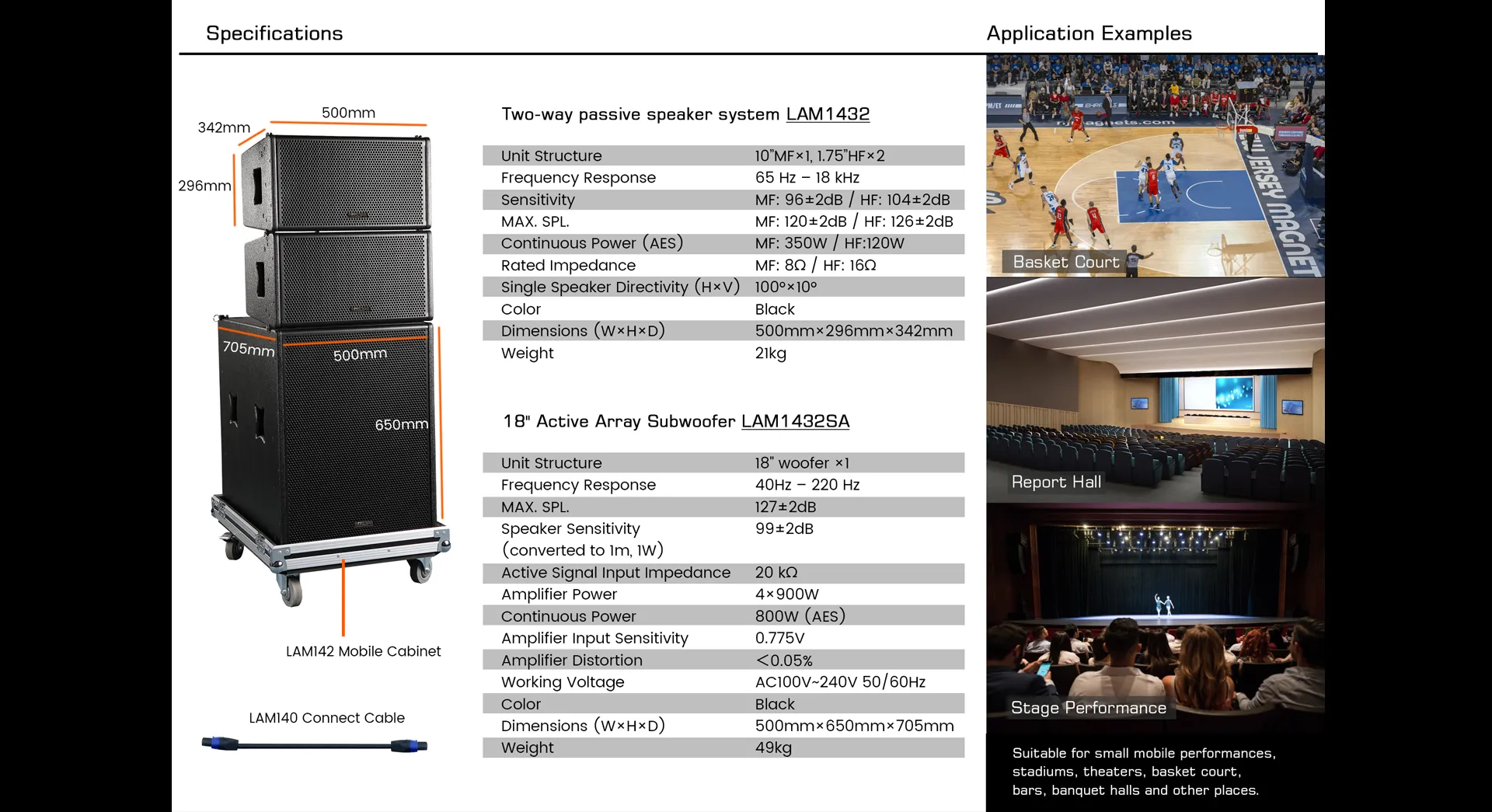

Specifications of  Mobile  Active Array Speaker System LAM1432 LAM1432SA

Model

LAM1432

Unit Structure

10”MF×1, 1.4”HF×2

Frequency Response

65Hz-18kHz

Sensitivity

MF: 96±2dB / HF: 104±2dB

MAX. SPL.

MF: 120±2dB / HF: 126±2dB

Continuous Power (AES)

MF: 350W / HF:120W

Rated Impedance

MF: 4Ω / HF: 16Ω

Single Speaker Directivity (H×V)

100°×10°

Color

Black

Dimensions (W×H×D)

500mm×296mm×342mm

Weight

20kg


Model

LAM1432SA

Unit Structure

18" woofer ×1

Frequency Response

38Hz-220Hz

Speaker Sensitivity (converted to 1m, 1W)

99±2dB

MAX. SPL.

127±2dB

Active Signal Input Impedance

20 kΩ

Amplifier Power

1500W+900W+900W@4Ω

Continuous Power

800W (AES)

Amplifier Input Sensitivity

0.775V

Amplifier Distortion

<0.05%

Working Voltage

AC220V~50/60Hz

Color

Black

Dimensions (W×H×D)

500mm×650mm×705mm

Weight

48kg
