Integrates multiple conference functions in one unit, including discussion and sign-in.
Comes with dedicated high-density cables, featuring one RJ45 plug and one RJ45 socket for daisy-chain connection between units.
Features an integrated square-column microphone stem with cardioid electret condenser microphone and dual-color indicator ring (red/green).
Excellent resistance to mobile phone interference.
3.5 mm stereo headphone jack for monitoring other units.
Independent adjustment of microphone volume and headphone monitoring volume, with support for 12-band EQ via control software.
Supports microphone noise reduction and automatic gain control (AGC), configurable through control software.
Supports main/backup switching: automatically switches to the backup unit if the main unit fails, enhancing system reliability.
Each conference unit has a unique ID number.
Supports camera auto-tracking when used with a conference host or control software.
Self-test function when connected to control host, including testing of buttons, microphones, and LED indicators.
Passive device powered by system host or PoE switch, with input voltage of +48V.

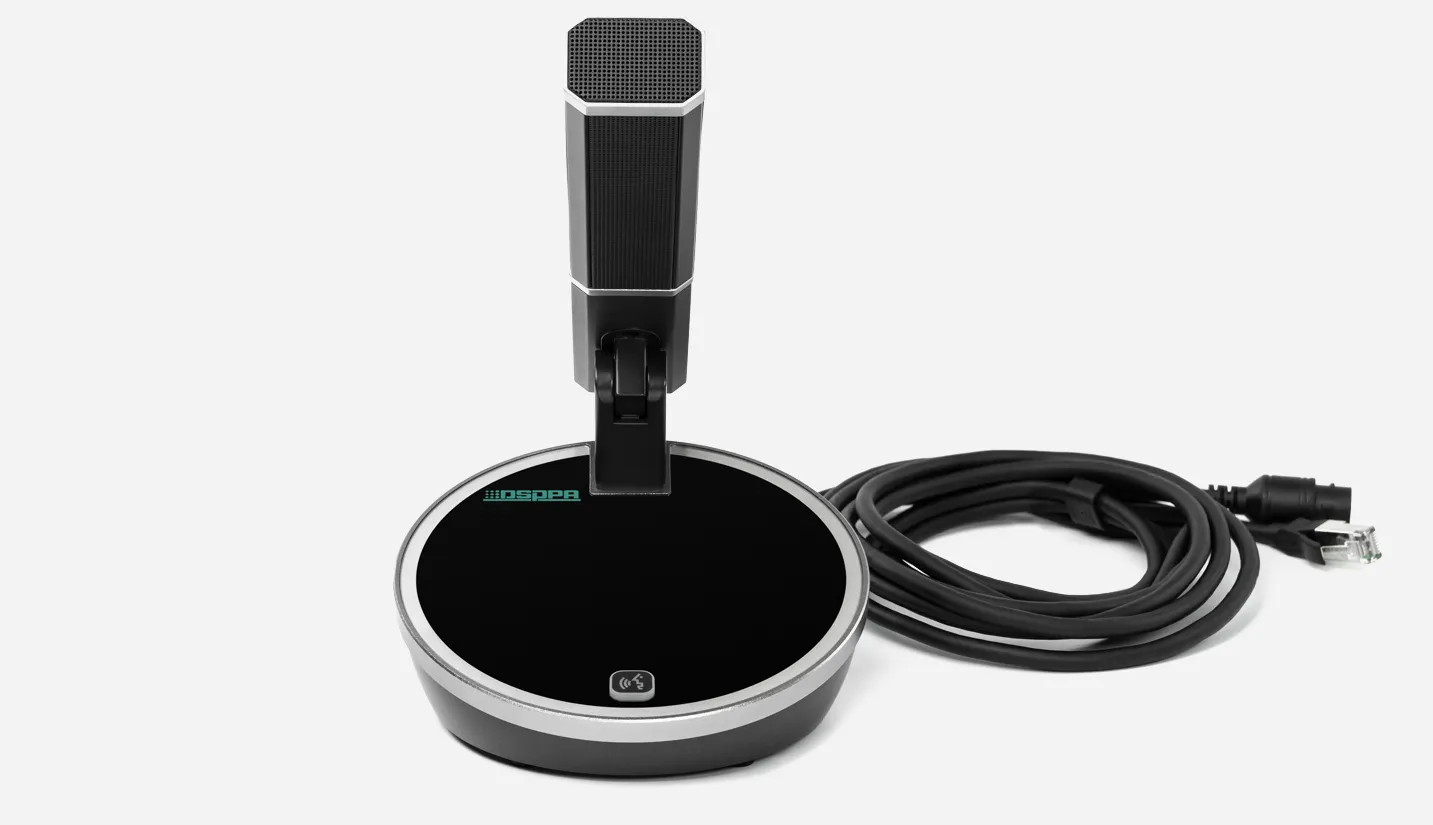

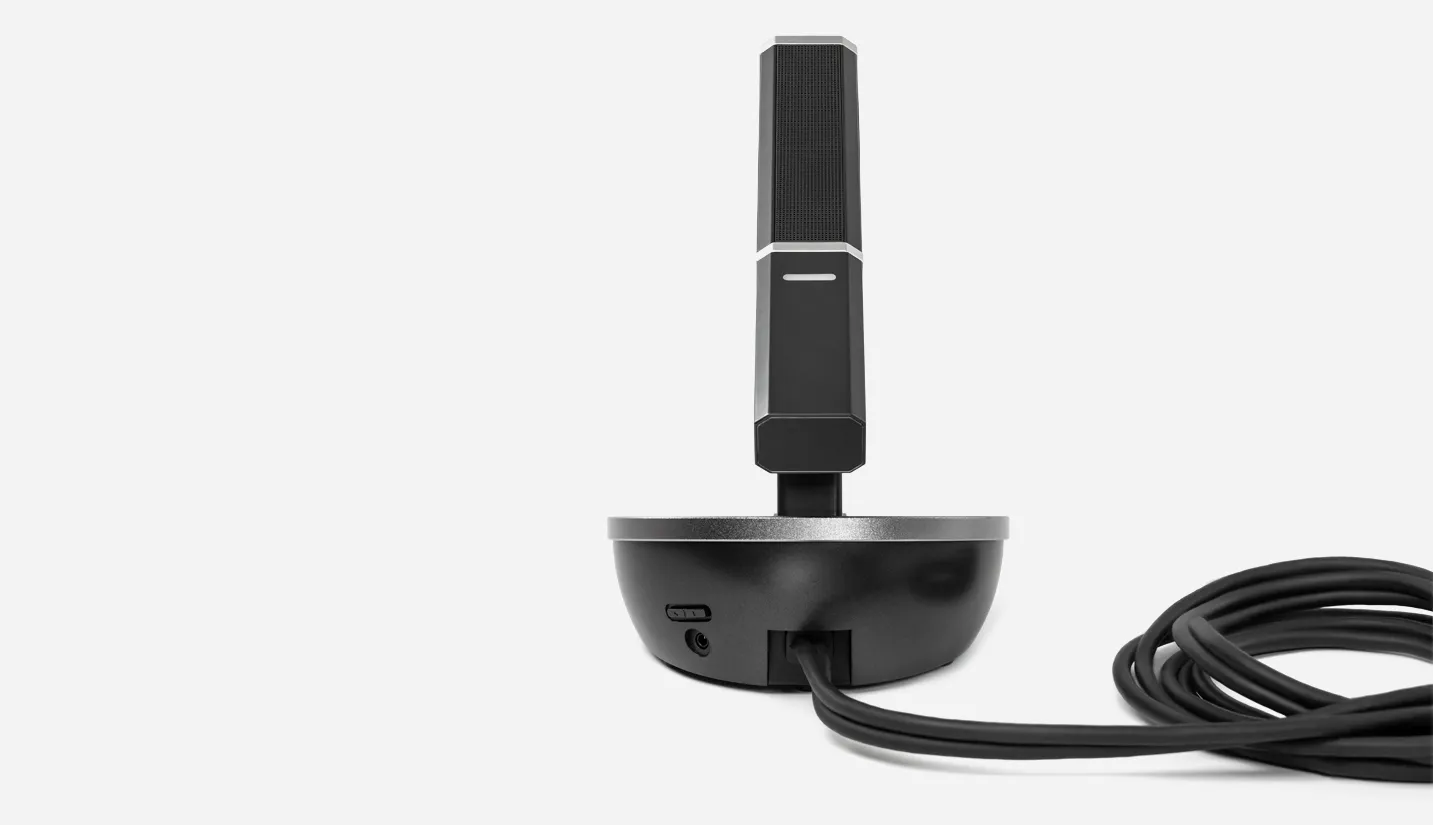

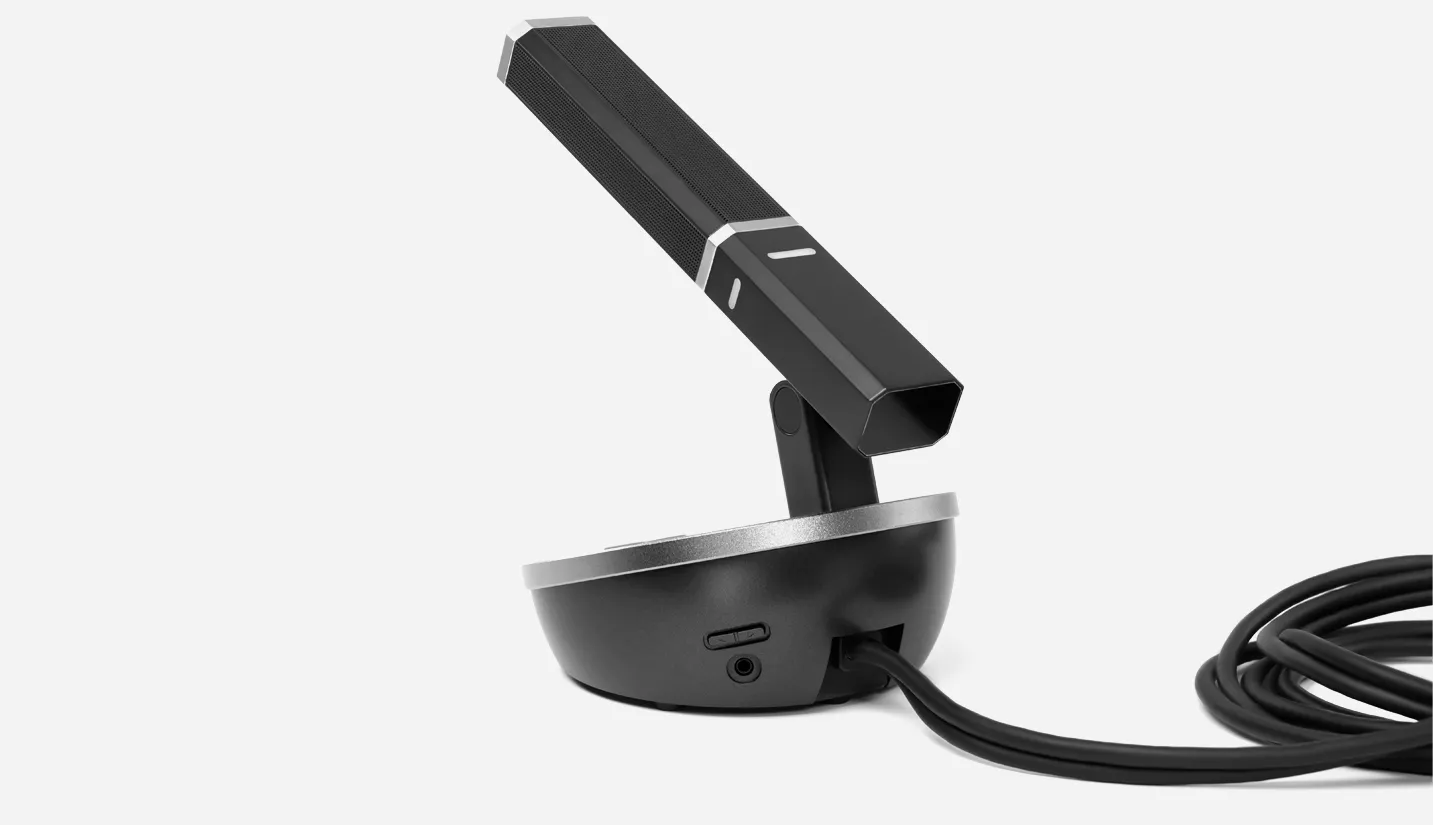

The D7158 Desktop Discussion Delegate Unit is a high-performance digital conference terminal designed for discussion and sign-in functions. Equipped with a cardioid condenser microphone, it delivers excellent sound pickup and strong resistance to interference, ensuring clear and stable audio transmission. The unit supports headphone monitoring, independent volume control, and software-based EQ adjustment, along with system self-test and main/backup switching functions. The chairman unit provides priority control and speaking management, making it suitable for various mid-to-high-end conference applications.
Model | D7157/D7158 | |
Structure Type | Desktop | |
Effective Frequency Range with Gain Limit (±3dB) | Unit A to Unit B | 80Hz–12kHz |
Host Line to Unit | 80Hz–16kHz | |
Unit to Host Line Output | 80Hz–16kHz | |
Static Power Consumption | <2W | |
Maximum Power Consumption | <2W | |
Harmonic Distortion | <0.3% | |
Headphone Output | 9dBu, 8–32Ω, 3.5mm | |
Operating Power | Host +48V or +48V PoE | |
Unit Interface | Network Interface | |
Microphone | Microphone Type | Cardioid electret condenser |
Input Sensitivity | -42 ±2 dBV/Pa | |
Frequency Response | 50Hz–20KHz | |
Maximum SPL | 125 dB | |
Product Dimensions (W × D × H) | 142 × 139 × 65 mm | |
Package Dimensions | 385 × 345 × 181 mm | |
Net Weight | 0.78 kg | |
Gross Weight | 2.4 kg | |
