Fixed Ports: 24×10/100/1000BASE Ethernet ports (PoE) and 2×10/100/1000BASE-T Ethernet ports
Ethernet Ports: 2×1000BASE-X SFP ports
Port Attributes: Supports 1000Mbit/s transmission rate in full-duplex mode, 24 ports support PoE functionality
Indicators: Per port: Link/Act, Speed
Forwarding Capacity: 35.71Mpps
Switching Mode: Store-and-forward mode
MAC (Media Access Control) Address: 8K
Enclosure Material: Anodized Metal SGCC
Input Voltage: 100~240V AC 50/60HZ
Product Dimensions (Width x Depth x Height): 440×395×44mm
Product Net Weight: 3.5kg, Gross Weight: 4.0kg
Installation Method: Rack mounting.

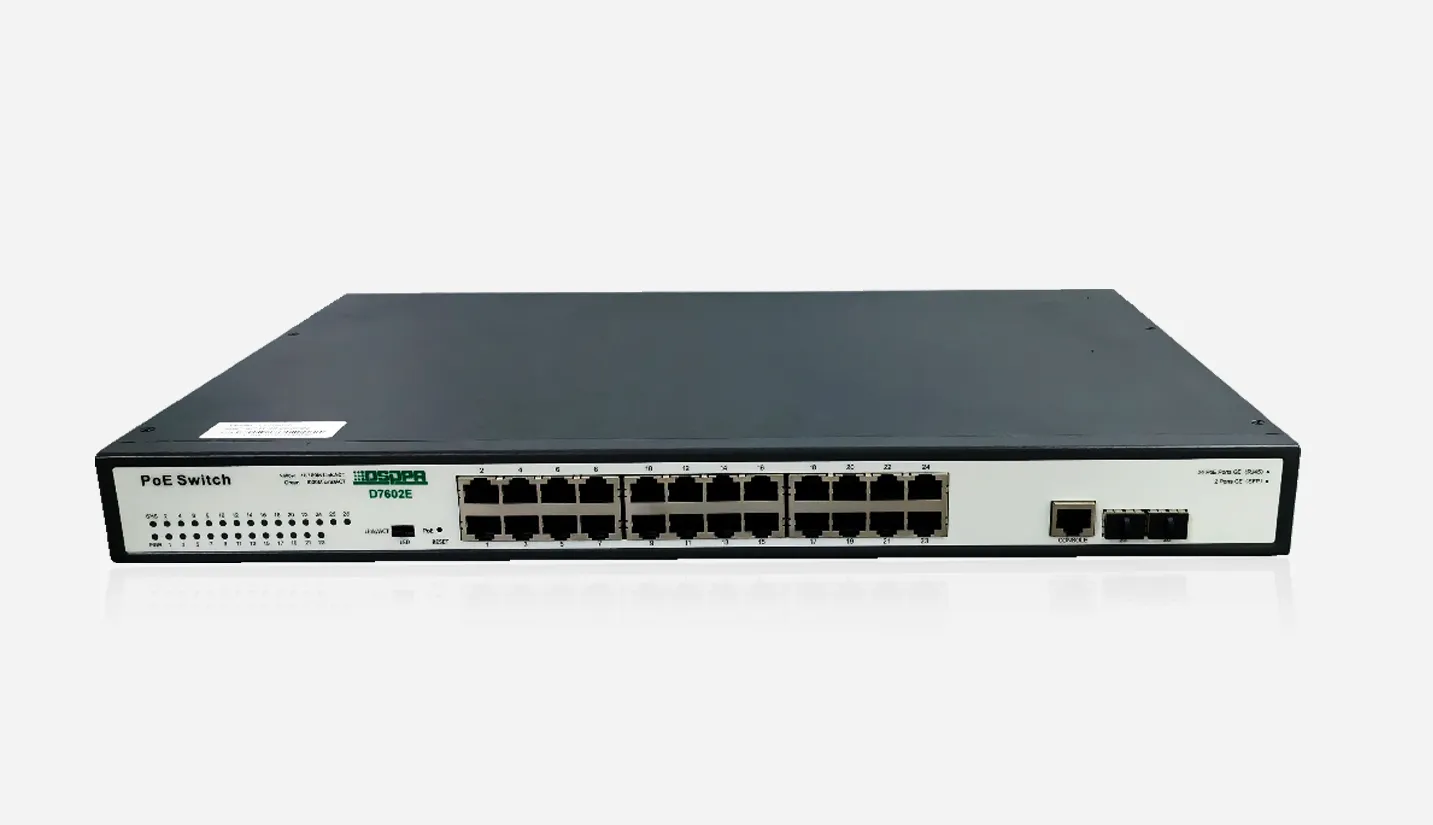

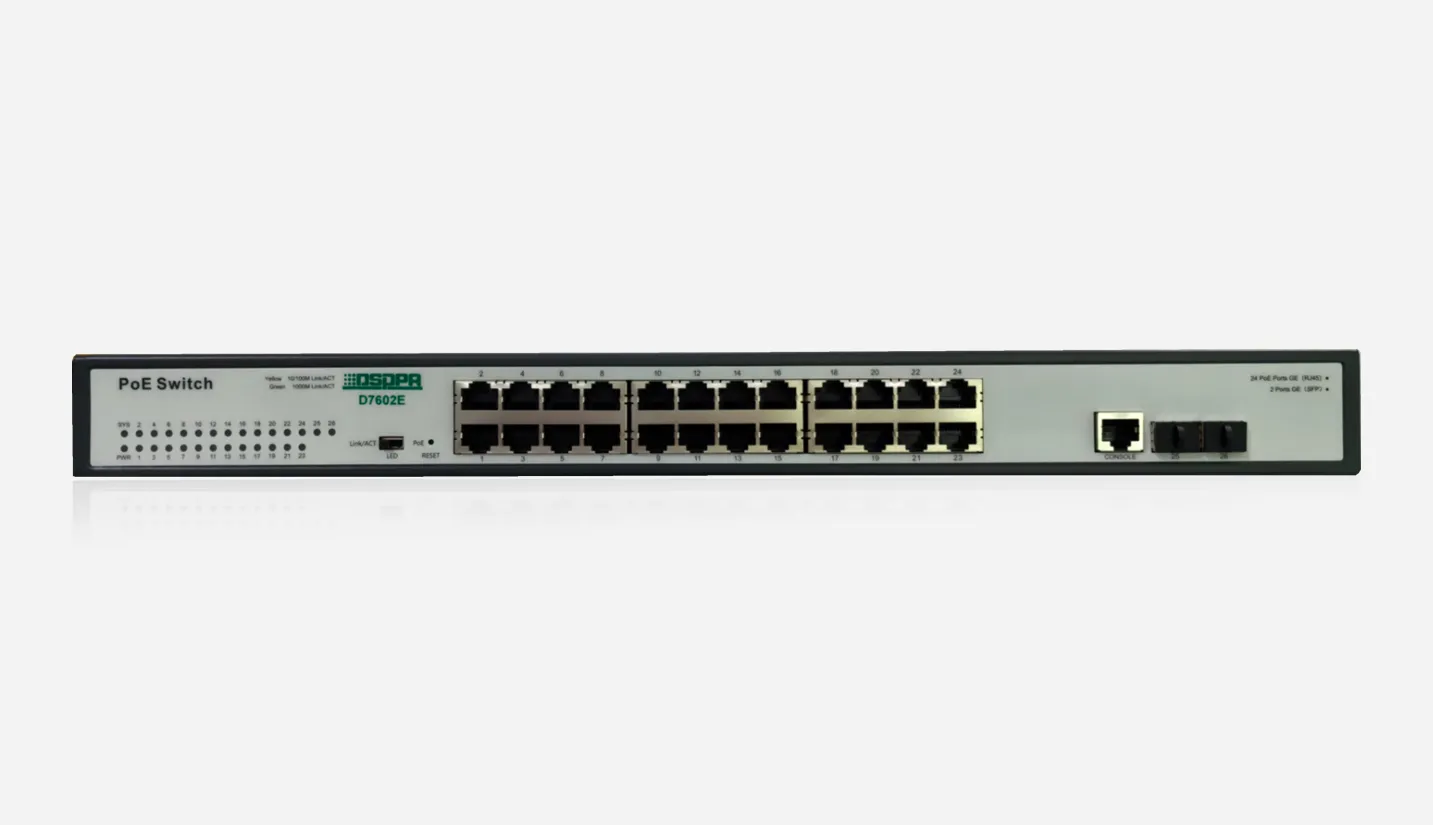

The 24+2G Gigabit PoE Switch provides 24 10/100Base-TX Ethernet ports, 2 10/100/1000Base-T Ethernet ports, and 2 multiplexed 1000Base-X Gigabit SFP ports. Ports 1–24 support IEEE 802.3af PoE (15.4W) standard power supply, with a total power budget of 250W and a maximum PoE output of 220W. Using standard Category 5 twisted-pair cables, it can simultaneously transmit power and data to APs, IP cameras, and IP phones. It supports star topology networking via Ethernet cables, enabling connection between the intelligent paperless conference server and all conference terminals as well as other networked devices in the conference room. The backplane bandwidth reaches up to 56Gbps with a non-blocking design, supporting full line-speed forwarding. The Gigabit SFP ports support long-distance transmission up to 80 km and can be directly connected to metropolitan area backbone networks. Powerful PoE functionality is supported.
Model | D7602E |
Ports | 24 × 10/100/1000BASE-T PoE ports; 2 × 10/100/1000BASE-T ports; 2 × 1000BASE-X SFP ports |
PoE Standard | IEEE 802.3af (15.4W Per Port) |
PoE Power Budget | 250W Total, 220W Max Output |
Switching Capacity | 35.71Mpps |
Backplane Bandwidth | Up to 56Gbps |
MAC Address | 8K |
Switching Mode | Store-and-forward, full line-speed forwarding |
Input Voltage | 100-240V AC, 50/60Hz |
Dimensions | 440 × 395 × 44 mm |
Net Weight | 3.5kg |
