Equipped with a 2.4-inch LCD display to provide visualized control of device functions and parameter adjustment, enhancing user operability.
With a jog dial to modify and configure device parameters.
Supports two channels of balanced output, unbalanced output, and mixed output, greatly improving user experience.
Built-in professional digital audio processing module to ensure lossless, stable, continuous, and low-latency transmission of wireless microphone audio signals.
Through the jog dial, users can view the status of each channel on the display and adjust channel volume.
Adopts digital audio algorithms to enable seamless switching between wireless microphone audio signals, meeting the transition requirements of PA systems.

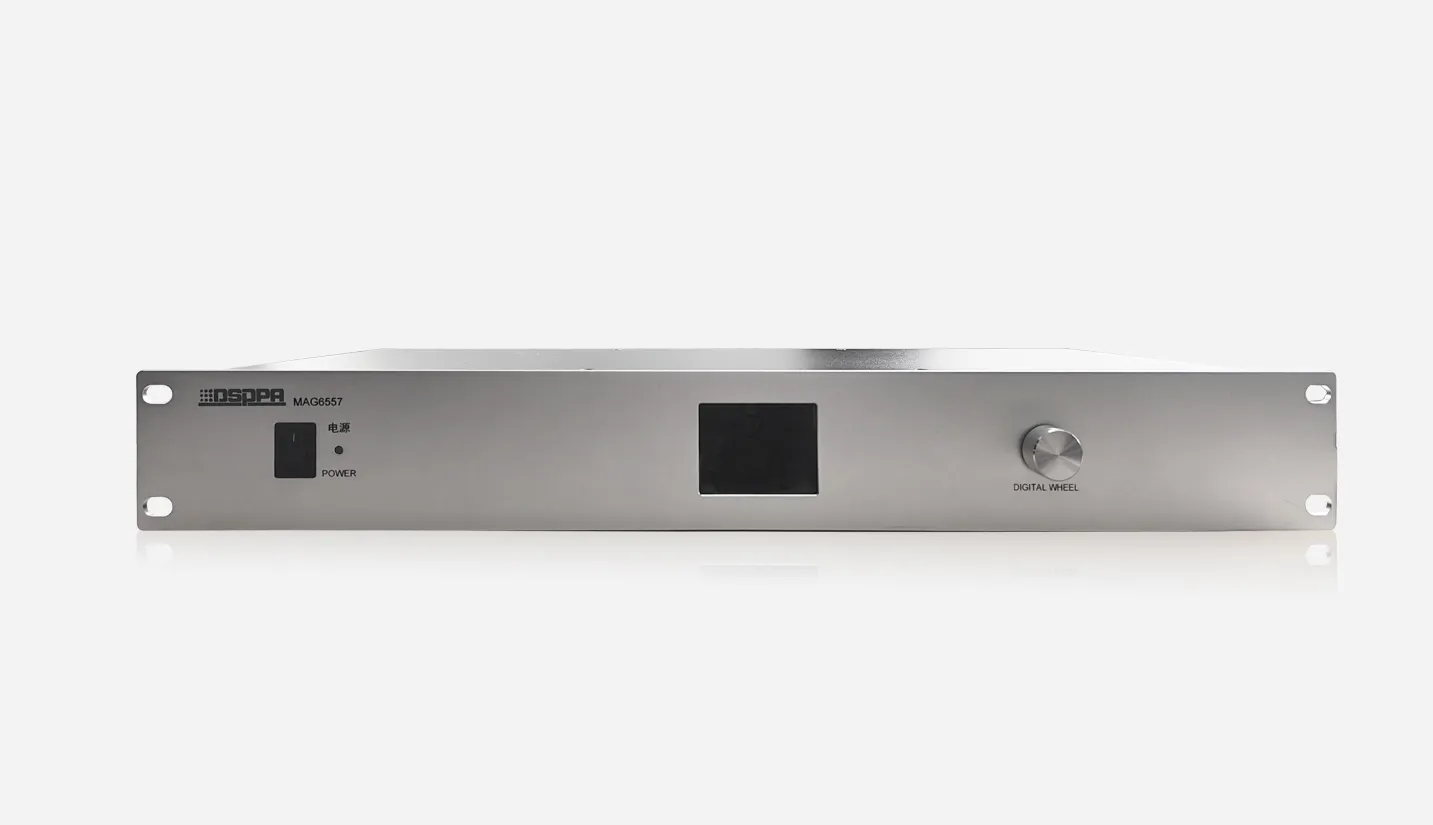

The wireless microphone processor is engineered with a built-in professional digital audio processing module to ensure lossless, stable, continuous, and low-latency transmission of wireless microphone audio signals. Equipped with a 2.4-inch LCD screen, it allows intuitive human-machine interaction for parameter configuration and adjustment. The unit provides balanced, mixed, and unbalanced outputs, greatly enhancing operational flexibility. Designed for versatile applications, it can be deployed across multiple scenarios.
Model | MAG6557 |
Balanced Output | 2000±200mV |
Line Output | 1000±100mV |
Distortion | ≤1% |
S/N Ratio | ≥75dB |
Effective Frequency Range | 130Hz~15000Hz |
Power Supply | DC12V |
Operating Temperature | -20℃~50℃ |
Operating Humidity | 20%~80% RH, non-condensing |
Package Dimensions (L×W×H) | 535×395×130mm |
Product Dimensions | 483×240×66mm |
Net Weight | 2.58kg |
Gross Weight | 3.58kg |
