Supports 4K@30Hz input and output resolution.
Dual-network backup: Gigabit Ethernet + optional fiber optic port (SFP module not included).
Central control via multiple low-voltage interfaces.
KVM function support for seat management applications (disabled by default).
Analog audio input and output support.

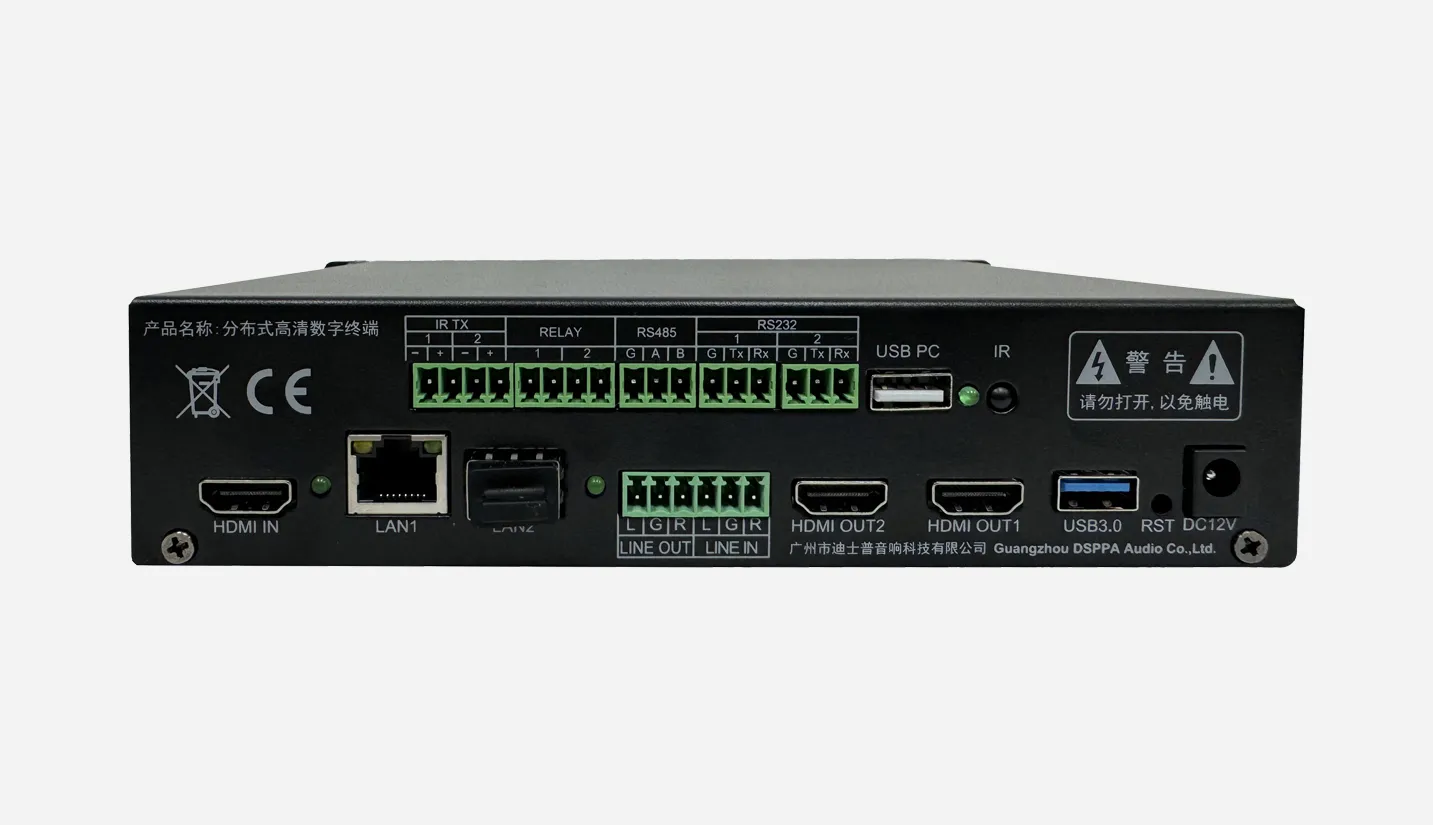

Multiple HDMI inputs and outputs for video routing.
USB2.0/3.0 ports for device connection, upgrades, and PC interface.
OLED/LCD display shows device model, IP, and version information with auto-screen-off.
RS232/RS485 interfaces for intelligent control of projectors and other devices.
IR TX port for controlling infrared devices.
Relay output for triggering external equipment.
Compact rack-mount design with durable aluminum alloy enclosure.
Slot dust cover for environmental protection.
Supports DC12V power supply, 8W power consumption.
Seamless integration with D6901 software for real-time signal management.
Reliable HD signal acquisition, uncompressed transmission, and visualized control.
Suitable for conference rooms, monitoring centers, multimedia publishing, and command & dispatch applications.

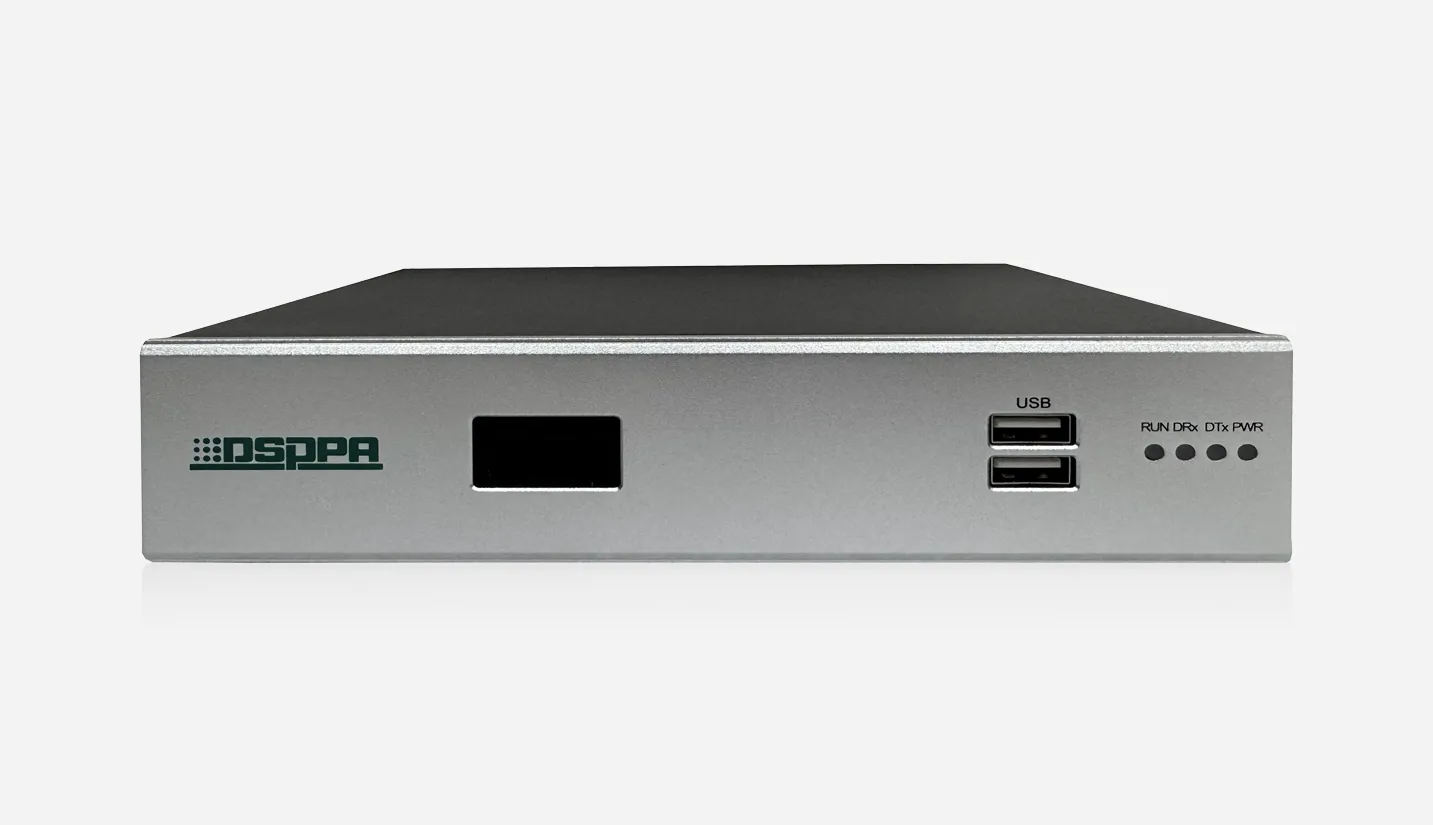

The DSPPA D6918C/D6918D Distributed Digital HD All-in-One Terminal is a compact, high-performance device designed for reliable audio-visual signal management and intelligent control. Equipped with 4K video support, dual-network backup, and multiple input/output interfaces, it ensures stable transmission and versatile connectivity. The terminal provides intuitive local display, flexible central control, and seamless integration with the D6901 Distributed System software, making it ideal for conference rooms, monitoring centers, and multimedia applications.
Model | D6918C / D6918D |
Enclosure Materials | Aluminum Alloy with Brushed Ppanel Finish |
Installation Method | Rack-Mount |
Dust Protection | Slot Dust Cover |
Color | Black |
Dimensions (D×W×H） | 150 mm × 190 mm × 44 mm |
Power Supply | DC12V @ 1A Input |
Power | 8W |
Weight | Net Weight: Approx. 1kg, Gross Weight: Approx. 1.4kg |
Package Dimension (L×W×H)) | 258 × 256 × 82(mm) |
Operating Temperature | 0℃～+50℃ |
Storage Temperature | -10℃~+70℃ |
Working Humidity | 5%~ 90% |
