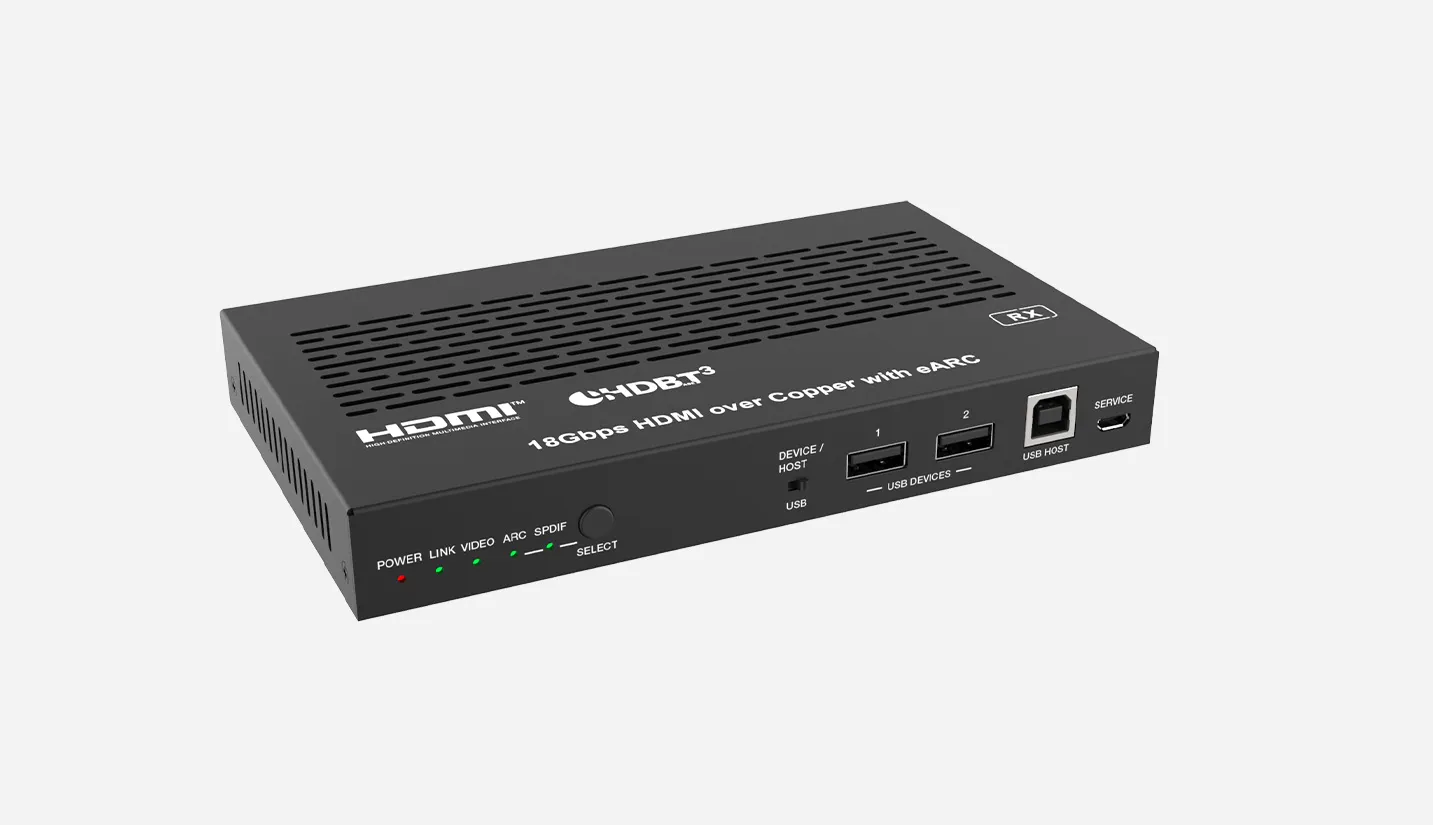

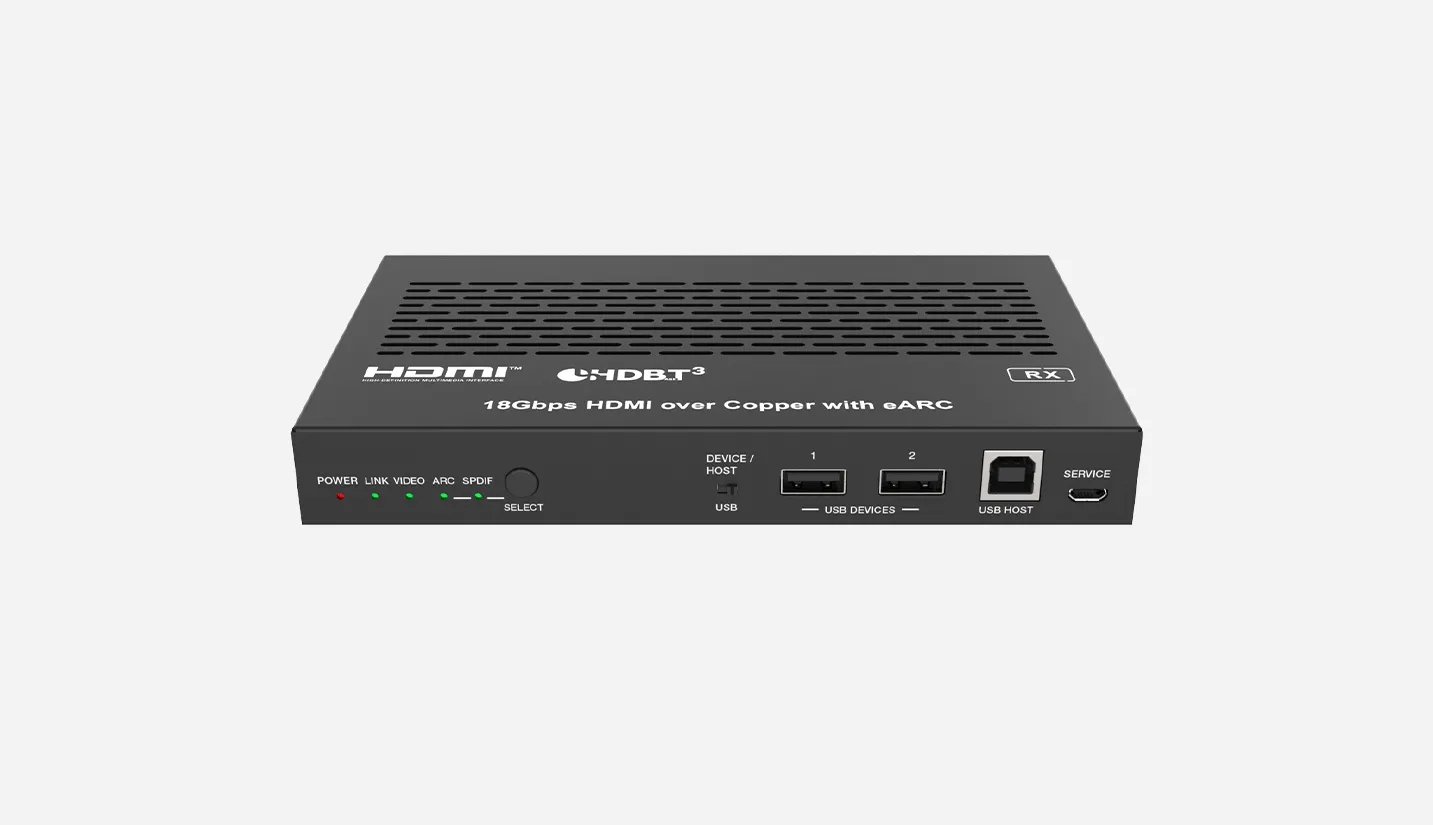

HDMI Ultra HD HDBaseT Extender (100m) D6145C

Compliant with HDMI 2.0b, HDCP 2.2, and HDBaseT 3.0 standards.
Supports 18Gbps video bandwidth.
Supports video resolutions up to 4K@60Hz (YUV 4:4:4).
Supports pass-through of HDR, HDR10, HDR10+, Dolby Vision, and HLG signals.
Supports HDMI audio formats including LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Resolution, DTS-HD Master Audio, and DSD.
Enables uncompressed and zero-latency transmission over a single CAT6A/7 cable with a transmission distance of up to 100 m.
Supports ARC/eARC audio return to the transmitter’s HDMI IN port, HDMI OUT (Audio Only) port, and SPDIF OUT port.
Supports one-way SPDIF audio reverse transmission.
Supports bidirectional transmission of IR control signals, RS-232 control signals, and 1GbE network signals.
Supports USB 2.0 transmission with configurable Host/Device modes.
Supports bidirectional 24V PoC, allowing either the transmitter or receiver to be powered by a single 24V/1A power adapter.
Compact design for easy installation

Get Quotation

DETAILS

SPECS

The HDBaseT 3.0 Extender extends high-definition/ultra-high-definition audio and video signals, eARC/ARC, RS-232, bidirectional IR control signals, 1GbE Ethernet, and USB 2.0 signals up to 100 m over a CAT6A/7 cable. It enables zero-latency and uncompressed long-distance transmission between the signal source and display device, supporting resolutions up to 4K@60Hz 4:4:4.

The transmitter supports audio embedding and de-embedding, while the receiver supports audio de-embedding. This product supports eARC/ARC functionality, allowing audio from the receiver’s HDMI OUT port to be returned to the transmitter’s HDMI IN port, HDMI OUT (Audio Only) port, and SPDIF OUT port. It also supports USB 2.0 transmission (Host/Device configurable) and bidirectional POC functionality.

By utilizing CAT cables, this product provides a convenient solution for HDMI extension applications and is widely applicable to video conference systems, multimedia signal distribution, HDMI signal extension, and other fields.

Specifications of HDMI Ultra HD HDBaseT Extender (100m) D6145C

Model	D6145R / D6145C
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K@60Hz 4:4:4
HDBaseT Bandwidth	Main Link: 16Gbps; Return Link: 2Gbps
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space	RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats	PCM 2.0
SPDIF Audio Formats	LPCM2.0, AC3 5.1, DTS 5.1
IR Level	12Vp-p
IR Frequency	20K - 60KHz
USB Bandwidth	Up to 350Mbps
Ethernet	1000Mbps
RS-232	Up to 921600bps
Transmission Distance	100 m (via a single CAT6A/7 cable)
ESD Protection	Human Body Model: +8kV (Air Discharge), ±4kV (Contact Discharge)
Connections
Transmitter	Input Port: 1×HDMI IN [Type A, 19-pin Female] Output Ports: 1×HDMI OUT [Type A, 19-pin Female] 1×HDBaseT OUT [RJ45, 8-pin Female] 1×SPDIF OUT [S/PDIF] 1×L/R OUT [3.5 mm Stereo Mini Jack] Control Ports: 1×IR IN [3.5 mm Stereo Mini Jack] 1×IR OUT [3.5 mm Stereo Mini Jack] 1×RS-232 [Phoenix Connector] 1×SERVICE [Mini USB, Firmware Upgrade Port] 1×USB HOST [USB Type B] 2×USB DEVICES [USB Type A] 1×LAN [RJ45]
Receiver	Input Ports: 1×HDBT IN [RJ45, 8-pin Female] 1×SPDIF IN [S/PDIF] Output Ports: 1×HDMI OUT [Type A, 19-pin Female] 1×L/R OUT [3.5 mm Stereo Mini Jack] Control Ports: 1×IR IN [3.5 mm Stereo Mini Jack] 1×IR OUT [3.5 mm Stereo Mini Jack] 1×RS-232 [3-pin 3.81 mm Phoenix Connector] 1×SERVICE [Mini USB, Firmware Upgrade Port] 1×USB HOST [USB Type B] 2×USB DEVICES [USB Type A] 1×LAN [RJ45]
Chassis
Enclosure	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver: 170mm(L)× 102mm(W)× 22mm(H)
Weight	Transmitter: 425g, Receiver: 437g
Power Supply	Input: AC100~240V 50 / 60Hz Output: DC24V / 1A (US/EU Standard, CE/FCC/UL Certified)
Power Consumption	Transmitter / Receiver: 15.36W (POC)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20~90% RH (Non-Condensing)
Resolution / Cable Length	4K60-Meter	4K30-Meter	1080P60-Meter
HDMI IN / OUT	5m	10m	15m
Note: For optimal performance, it is recommended to use a premium high-speed HDMI cable.
