HDMI Ultra HD HDBaseT Extender (150m) D6146R D6146C

Compatible with HDMI 2.0b, HDCP 2.2/1.4, and DVI 1.0
Supports 18Gbps bandwidth
Transmission distance: up to 120m/150m for 4K2K/1080P resolutions
1× HDMI loop-out (transmitter)
Audio de-embedding to analog stereo output (receiver)
Supports bidirectional IR, RS-232, and CEC pass-through
Supports HDR, HDR10+, Dolby Vision, and HLG
Supports PoC (Power over Cable)
Compact design for easy installation

Datasheet

Get Quotation

DETAILS

SPECS

This HDMI extender can transmit high-definition audio and video signals, RS-232 signals, and bidirectional IR signals up to 150 meters over a single CAT cable between the transmitter and receiver. It supports video resolutions up to 4K2K@60Hz 4:4:4 and provides one HDMI loop-out on the transmitter. On the receiver side, the source device’s audio can be de-embedded to the analog audio output (AUDIO OUT). The product also supports POC (Power over Cable) functionality. In addition, this extender supports bidirectional IR control, allowing users to control devices from either the source end or the display end via IR.

The HDMI extender consists of two parts: a transmitter and a receiver. The transmitter is responsible for acquiring HDMI signals, transmitting or receiving IR control signals, and extending signals via CAT cable; the receiver is responsible for receiving HDMI signals and transmitting or receiving IR control signals. By using a single CAT cable, this product offers a convenient solution for HDMI extension applications.

Model	D6146R	D6146C
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 / HDCP 1.4
Video Bandwidth	18Gbps
Video Resolutions	4K2K 50/60Hz 4:4:4; 4K2K 50/60Hz 4:2:2; 4K2K 50/60Hz 4:2:0; 4K2K 30Hz 4:4:4; 1080p, 1080i, 720p, 720i, 480p, 480i; All 3D TV Formats; All Computer Resolutions, including 1920×1200
Color Space	RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4)
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats	PCM 2.0
ESD Protection	Human Body Model: ±8kV (air discharge), ±4kV (contact discharge)

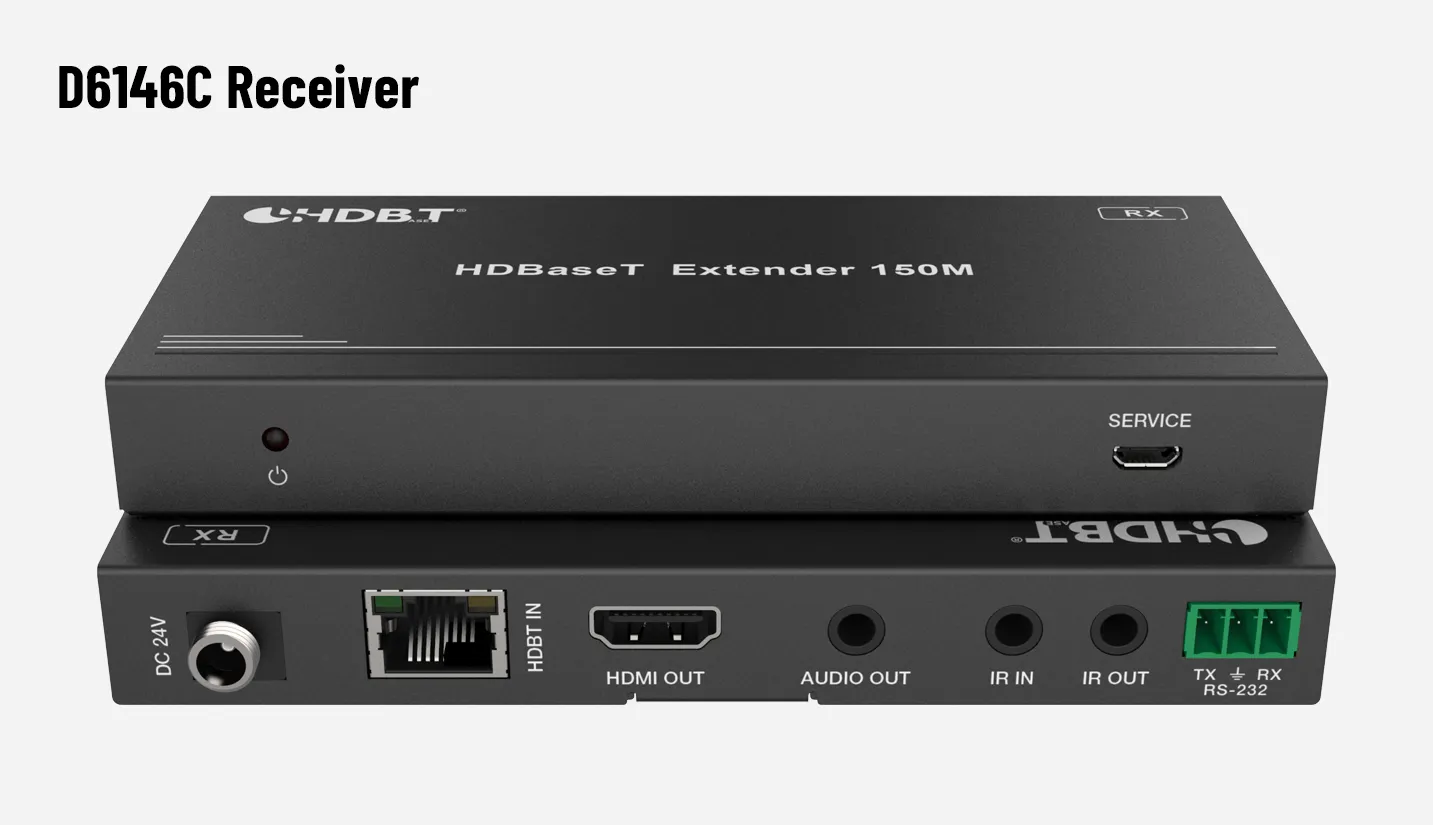

Connection	Input: 1× HDMI IN [Type A, 19-pin female] 1× SERVICE [Mini-USB, firmware upgrade] Output: 1× HDMI OUT [Type A, 19-pin female] 1× HDBT OUT [RJ45, 8-pin female] Control: 1× IR IN [3.5mm stereo mini-jack] 1× IR OUT [3.5mm stereo mini-jack] 1× RS-232 [3-pin Phoenix connector]	Input : 1× HDBT IN [RJ45, 8-pin female] 1× SERVICE [Mini-USB, firmware upgrade] Output: 1× HDMI OUT [Type A, 19-pin female] 1× AUDIO OUT [3.5mm stereo mini-jack] Control: 1× IR IN [3.5mm stereo mini-jack] 1× IR OUT [3.5mm stereo mini-jack] 1× RS-232 [3-pin Phoenix connector]
Product Enclosure	Metal Enclosure
Color	Black
Dimension (L×W×H)	140mm×65mm×18mm	140mm×65mm×18mm
Weight	160g	155g
Power Supply	Input: AC 100–240V, 50/60Hz Output: DC 24V/1A (with locking connector)
Power Consumption	9.36W
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20% ~ 90% RH (non-condensing)
Transmission Distance	4K2K: 120 meters 1080P: 150 meters
HDMI IN/OUT Cable Length	4K60: 3 meters 4K30: 10 meters 1080P60: 15 meters
Note: For optimal performance, it is recommended to use a premium high-speed HDMI cable.
