2.5mm pixel pitch with 128×64 resolution for sharp, detailed visuals.
14-bit gray scale with brightness and color calibration support for smooth, accurate color reproduction.
16-bit constant current driving with 1/32 scan mode for flicker-free, stable images.
Wide 170° viewing angle for consistent display from multiple perspectives.
Compact and lightweight design for easy installation.

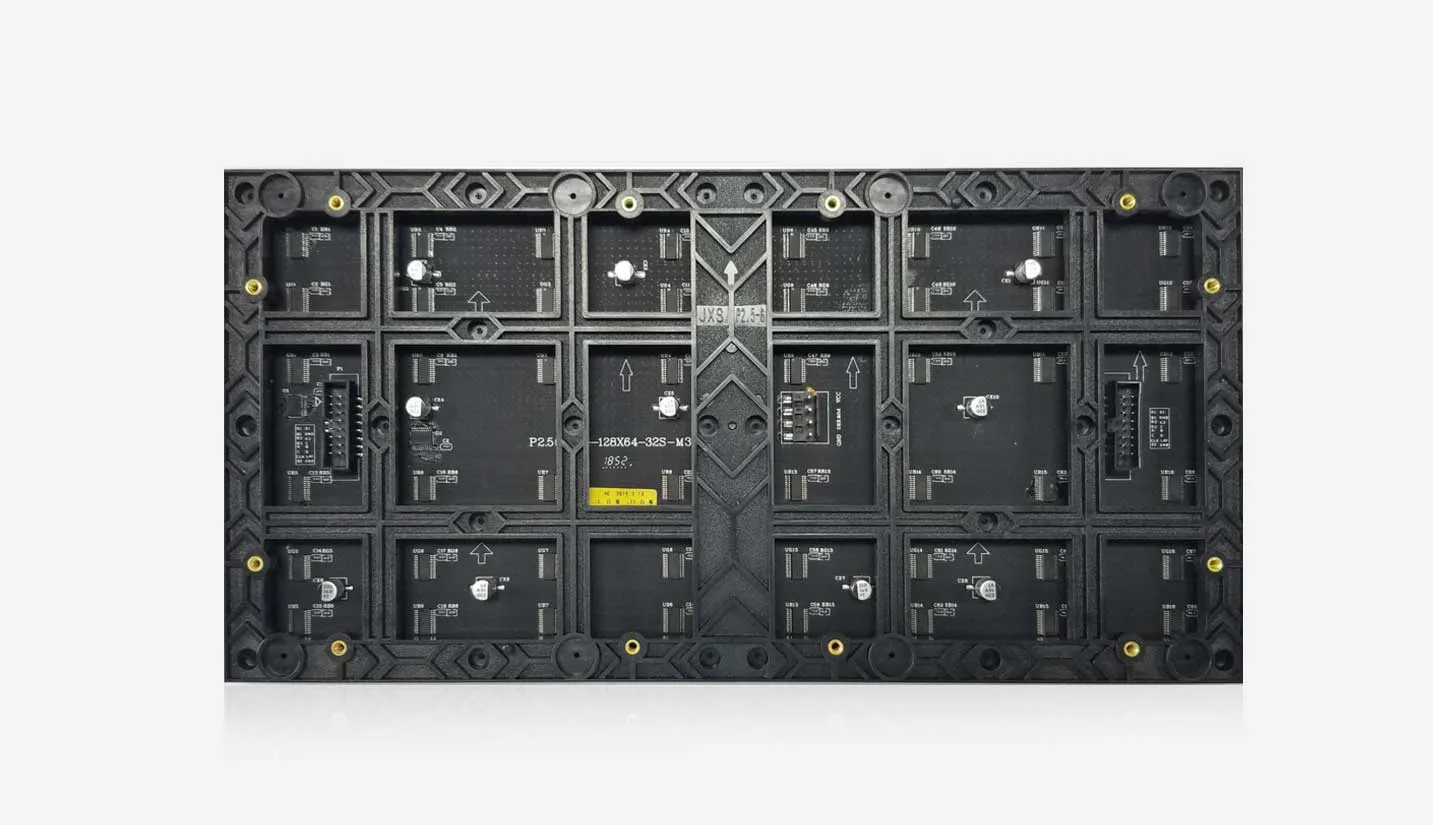

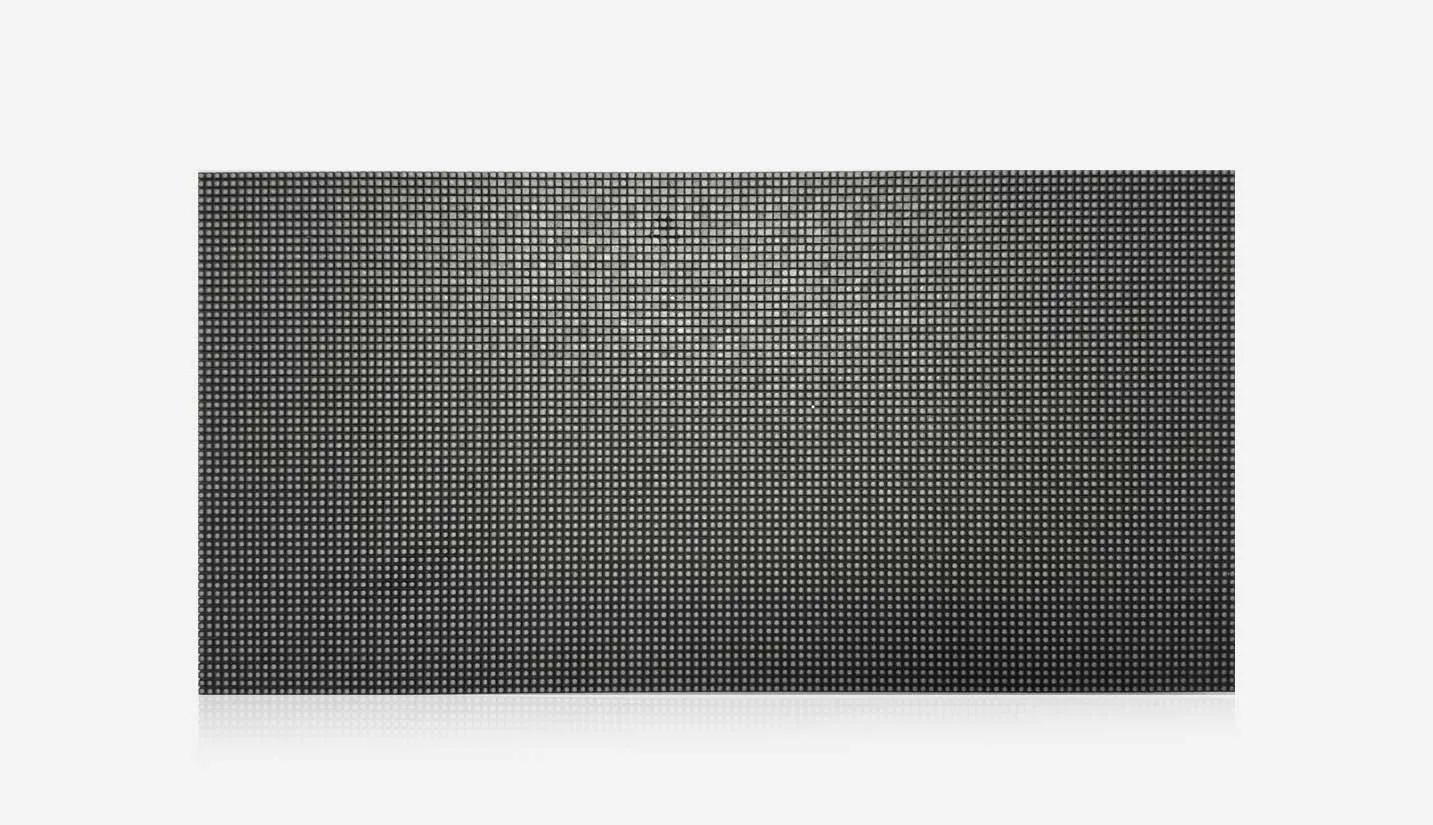

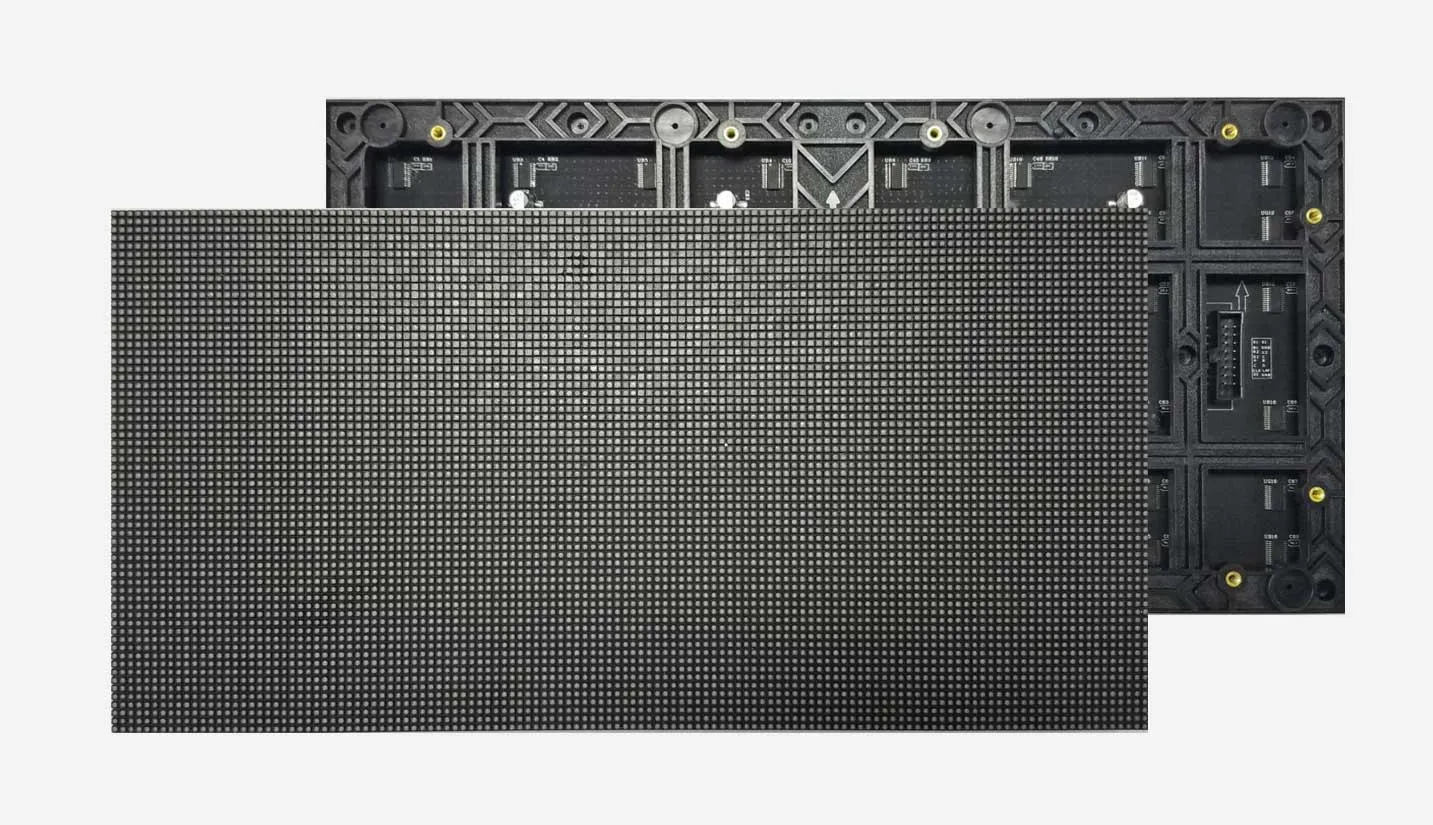

The DP-N250GC Indoor P2.5 Full-Color LED Module features a 2.5mm pixel pitch and 128×64 resolution, delivering sharp, vivid visuals for indoor applications. With 14-bit gray scale, brightness and color calibration support, and a wide 170° viewing angle, it ensures smooth, accurate, and consistent display performance.
Model | DP-N250GC |
Pixel Pitch | 2.5mm |
Pixel Density | 160000 dots/㎡ |
Module Resolution | 128×64 pixels (W×H) |
Module Dimensions | 320×160×14.2mm (W×H×D) |
Module Weight | Approximately 350g |
Driving Method | Constant current |
Scan Mode | 1/32 |
Operating Voltage | DC5V±10% |
Maximum Current | 5.6A (typical) ① |
Maximum Power Consumption | 28W (typical) ② |
Power Interface | VH4 |
Signal Interface | HUB75E (IDC16) |
Maximum Brightness | ≥700cd/㎡ |
Color Temperature | 1000-20000K (adjustable) |
Viewing Angle | 170° |
Optimal Viewing Distance | ≥2.5m |
Gray Scale | 14-bit |
Brightness & Color Calibration | Support |
Refresh Rate | ≥3840Hz③ |
Operating Environment | Indoor |
Brightness Adjustment Range | 0-255 (adjustable) |
Typical Lifespan | 100,000 hours |
Operating Temperature | -20℃~60℃ |
Operating Humidity | 10%-90%RH, non-condensing |
Storage Temperature | -40℃~80℃ |
