Ultra-fine 2.5 mm pixel pitch for sharp, detailed images
High pixel density of 160,000 dots/㎡ for clear visuals
Wide viewing angle for consistent image quality
Brightness ≥ 6,000 cd/㎡ for excellent visibility even outdoors
High gray scale (14-bit) for smooth color gradients
Fast refresh rate and frame rate for flicker-free display
Automatic per-module data calibration for uniform color
IP65-rated protection for outdoor durability
Long lifespan and high MTBF for stable long-term operation
Flexible control: computer-controlled, video-synchronized, real-time display
Flame-retardant module material for safety and durability

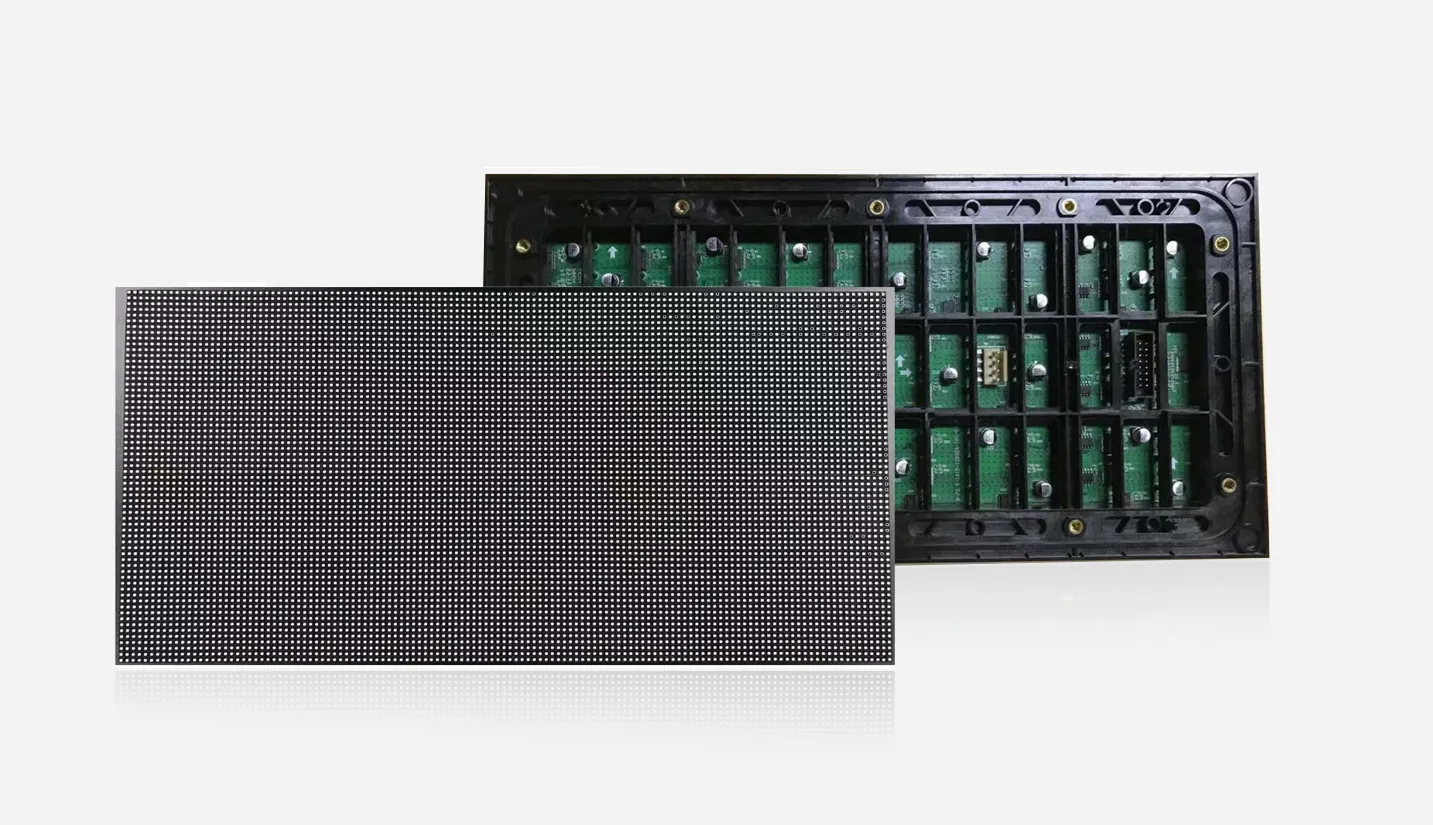

The DP-W250GF is a high-performance outdoor LED display with a 2.5 mm pixel pitch and full-color SMD1415 RGB LEDs. Each module measures 320 × 160 mm with a resolution of 128 × 64 pixels, delivering bright and uniform images at ≥6,000 cd/㎡. Featuring 14-bit grayscale, constant current driving, and automatic brightness and chromaticity calibration, it ensures stable performance, smooth visuals, and long lifespan. With a wide 140° viewing angle and optimal viewing distance of 2.5 m, it is ideal for outdoor signage, video walls, and professional digital display applications.
Product Model | Color | IF (mA) TEST | Rd (nm) Typ | Iv (mcd) Typ | Vf (V) Typ | View Angle (deg.) |
SMD1415 | Red | 15 | 620 | 400 | 2.0 | 110 |
Green | 10 | 525 | 650 | 3.0 | 110 | |
Blue | 8 | 470 | 95 | 3.0 | 110 | |
Pixel Pitch | 2.5mm | |||||
Pixel Density | 160000dots/㎡ | |||||
Module Resolution | 128 × 64 pixels (Width×Height) | |||||
Module Dimensions | 320mm × 160mm × 18mm (Width×Height×Thickness) | |||||
Module Weight | Approx. 350kg | |||||
Driving Method | Constant Current | |||||
Scanning Method | 1/16 scan | |||||
Operating Voltage | DC5V±10% | |||||
Maximum Current | 15A (Typical)① | |||||
Maximum Power Consumption | 75W (Typical)② | |||||
Power Interface | VH4 | |||||
Signal Interface | HUB75E (IDC16) | |||||
Brightness | ≥6000cd/㎡ | |||||
Color Temperature | 9000K±500K (Adjustable) | |||||
Viewing Angle | ≤140° | |||||
Optimal Viewing Distance | ≥2.5m | |||||
Gray Scale Level | 14 Bit | |||||
Brightness and Chromaticity Calibration | Support | |||||
Refresh Rate | ≥1920Hz③ | |||||
Supported Resolution | 128 × 256 pixels (Width×Height) | |||||
Brightness Adjustment Range | 0-255 (Adjustable) | |||||
Lifespan | 100,000 Hours | |||||
Operating Temperature | -20℃-60℃ | |||||
Operating Humidity | 10%-90%RH Non-condensing | |||||
Storage Temperature | -40℃- 80℃ | |||||
