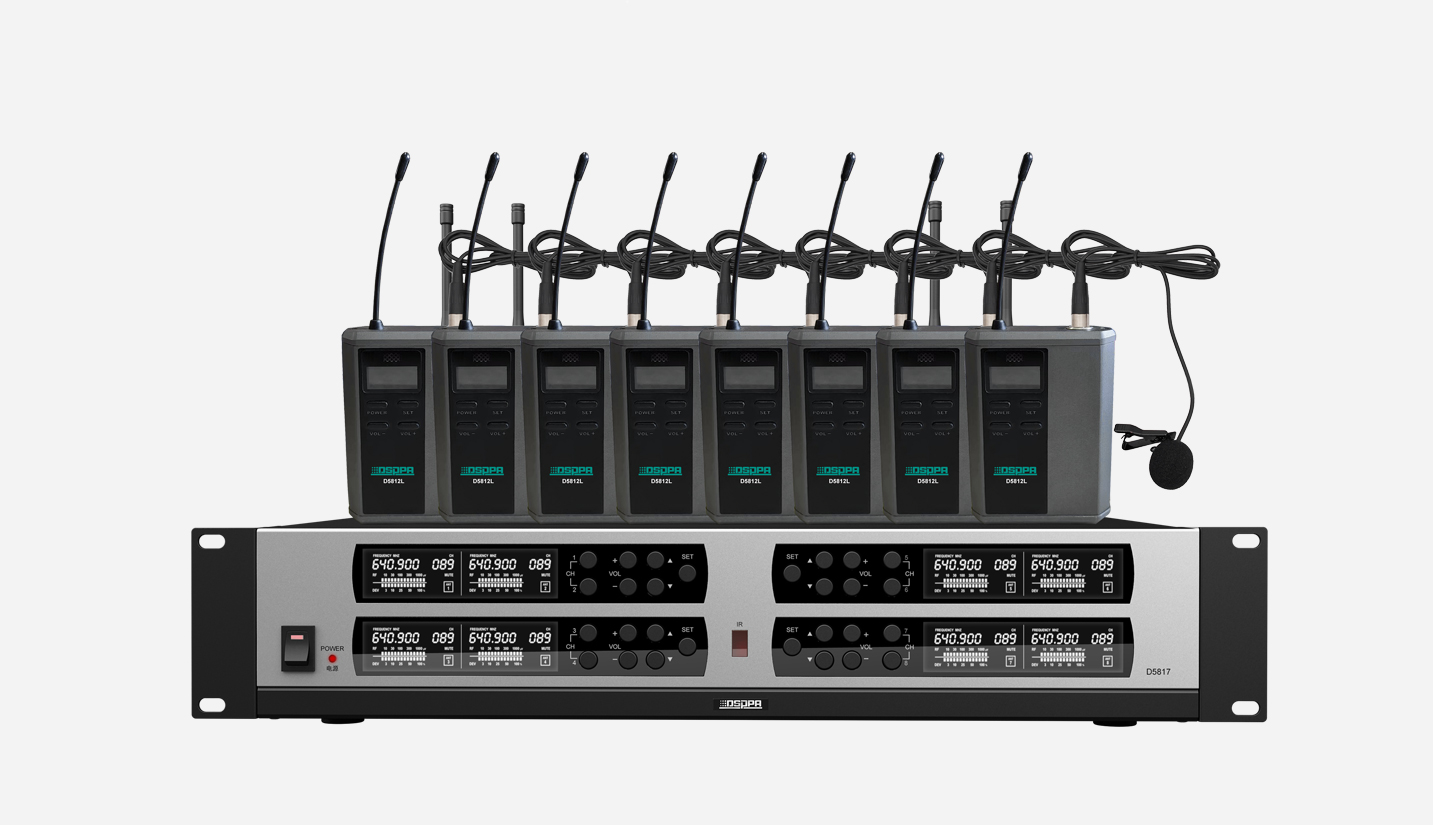

True Diversity UHF Wireless Microphone System (8 rechargable clip-type mic) D5882L

D5817 wireless receiver with eight rechargable collar microphone
Eight-channel PLL design.
UHF200 channel PLL digital lock automatic communication function.
Adopt IR frequency pairing.
With display screen (to display frequency, channel, squelch, level, etc.).
With volume control for each channel.
AF output (using “XLR” sockets for separate output and mixed output).

Datasheet

Get Quotation

DETAILS

SPECS

This product is a professional wireless microphone system. D5817 is the wireless microphone receiver, which can work with eight transmitters to form a wireless microphone system. Using eight-channel PLL phase-locked loop design, it features UHF 200-channel PLL digital lock for automatic communication, and a display screen to display the frequency, channel, squelch, and electrical level.

Specifications of True Diversity UHF Wireless Microphone System (8 rechargable clip-type mic)

System Indicators		Parameters
Frequency Range		632-695.25MHz
Modulation Mode		Wideband FM
Adjustable Range		60MHz
Number of Channels		200
Channel Interval		250KHz
Frequency Stability		Within ±0.005%
Dynamic Range		88dB
Maximum Frequency Deviation		±45KHz
Audio Response		120Hz-16KHz (±3dB)
Comprehensive S/N Ratio		>73dB
Comprehensive Distortion		≤1%
Operating Temperature		-10°C - +40°C
Effective Range		150-200m (in open environment)
Package Dimensions (L×W×H)		530×335×330mm
D5881/D5881L Gross Weight		9kg
D5882/D5883/D5882L/D5883L Gross Weight		7.4kg
D5884/D5884L/D5885L Gross Weight		9.6kg
Receiver	Wireless Connector	BNC/50Ω
	Sensitivity	≤-95dBm
	Spurious Suppression	≥75dB
	Function Display Mode	Display screen
	Operating Power	DC12V, 600mA
	Package Dimensions (L×W×H)	530×335×145mm
	Machine Dimensions	430×176×88mm
	Gross Weight	5.2kg
	Net Weight	3.3kg

Transmitter
Transmitter Type	Battery-powered desktop wireless microphone	Desktop wireless microphone (referred to the one in section 5)	Battery-powered handheld wireless microphone	Rechargeable handheld wireless microphone	Battery-powered portable transmitter	Rechargeable portable transmitter	Desktop wireless microphone (referred to the one in section 6)
Antenna Mode	Built-in onboard antenna	Built-in onboard antenna	Built-in onboard antenna	FPC antenna	1/4 wavelength whip antenna	1/4 wavelength whip antenna	FPC antenna
Output Power	High power 14dBm; low power 6dBm	High power 14dBm; low power 6dBm	High power 14dBm; low power 6dBm	High power 14dBm; low power 6dBm	High power 14dBm; low power 6dBm	High power 14dBm; low power 6dBm	High Power 10dBm; low power 2dBm
Spurious Suppression	-60dB	-60dB	-60dB	-60dB	-60dB	-60dB	-60dB
Power Supply Mode	4×AA 1.5V alkaline batteries	3.7V/2000mA lithium battery	2×AA 1.5V alkaline batteries	3.7V/3000mA lithium battery	2×AA 1.5V alkaline batteries	3.7V/3000mA lithium battery	3.7V/3000mA lithium battery
Battery Life	＞10 hours at 14dBm; ＞15 hours at 6dBm	＞10 hours at 14dBm; ＞15 hours at 6dBm	＞10 hours at 14dBm; ＞15 hours at 6dBm	＞10 hours at 14dBm; ＞15 hours at 6dBm	＞10 hours at 14dBm; ＞15 hours at 6dBm	＞10 hours at 14dBm; ＞15 hours at 6dBm	＞10 hours at 10dBm; ＞15 hours at 2dBm
Desktop Microphone Rod Length	420mm	420mm	——	——	——	——	420mm
Function Display Mode	Display screen	Display screen	Display screen	Display screen	Display screen	Display screen	Display screen
Machine Dimensions	151×100×55mm	151×100×55mm	50×265mm (Handheld part diameter ∅ 34~38mm)	35×250mm	110×64×25mm (Excluding antenna length, plus 80mm if included)	95×65×30mm	14214265mm
Weight	0.45kg	0.45kg	0.45kg	0.2kg	0.1kg	0.35kg	0.65kg
