DMX512/1990 standard, supporting up to 1024 DMX control channels with dual optically isolated outputs.
Controls up to 96 moving head lights or 96 dimmer channels.
Newly added Art-Net support and built-in simulator function.
New RDM bidirectional output, allowing fixture address setup directly on the console.
Compatible with Pearl fixture library (R20 format), and users can create fixture libraries on the console.
Backlit LCD screen with switchable Chinese/English interface; panel language optional in Chinese or English.
Built-in graphic generator with 135 preset patterns, enabling easy control of moving head effects such as circle, spiral, rainbow, chase, and more.
Graphic parameters (e.g., amplitude, speed, interval, wave, direction) are independently adjustable for faster and more flexible scene design.
Each scene can store up to 5 graphic patterns; supports simultaneous operation of 10 graphics.
Stores up to 60 materials (presets).
Supports individual material storage.
Stores up to 60 playback scenes, including multi-step and single-step scenes, with each multi-step scene containing up to 600 steps.
Allows simultaneous output and playback of 10 scenes.
Equipped with 10 master faders; compatible with both button and fader controls.
Supports address resetting, pan/tilt swap, and channel inversion functions.
Data memory retention in case of power-off or unexpected power failure.
USB drive backup for console data; supports data import/export between consoles of the same model.
Supports remote software upgrade, enabling new feature additions anytime.
Preset faders for quick and convenient control of fixture attributes.
Supports instant blackout function.
Professional gooseneck work light (optional), suitable for both indoor and outdoor use.

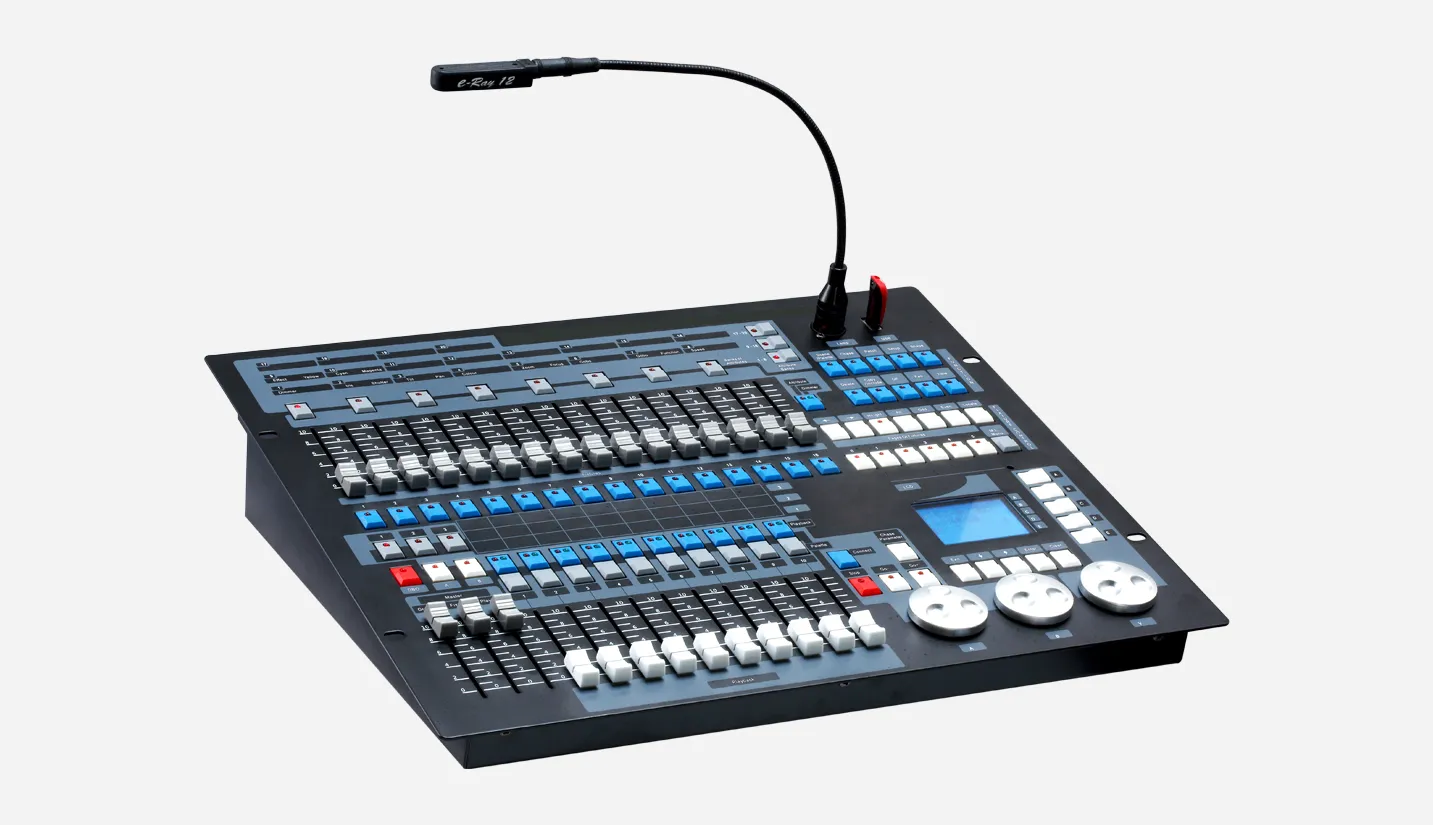

The 1024 Series Intelligent Lighting Control Console can control up to 96 intelligent computerized lights simultaneously. It supports Pearl R20 format libraries and includes built-in shape effects for effortless creation of X/Y circular motion, RGB rainbow effects, chase sequences, and more. The console can operate 10 scenes and 10 built-in shapes concurrently, with faders available to control and adjust scene brightness outputs.
Model | KL1024K |
DMX512 Number of Channels | 1024 |
Number of Compatible Computer Lights | 96 |
ARTNET | Support |
RDM | Support |
Readdressing Computer Lights | Support |
Pan/Tilt Swap for Fixtures | Support |
Channel Inversion for Fixtures | Support |
Channel Crossfade Mode Switch | Support |
Max Control Channels per Fixture | 40 Main Channels + 40 Fine Channels |
Fixture Library | Supports Pearl R20 Library |
Scene Storage Capacity | 60 |
Number of Scene Running Simultaneously | 10 |
Total Steps in Multi-Step Scenes | 600 |
Scene Timing Control | Fade In, fade Out, LTP Crossfade |
Max shapes per Scene | 5 |
Scene Launch and Dimming via Fader | Support |
Scene Interlocking | Support |
Point Control for Scenes | Support |
Built-in Shape Generator | Support Dimmer, P/T, RGB, CMY, Color, Gobo, Iris, Focus shapes |
Number of Shape Running Simultaneously | 10 |
Master Fader | Grand, Playback, Fixture Control |
Instant Blackout | Support |
Dial Adjustment for Channel Values | Support |
Fader Adjustment for Channel Values | Support |
Fader Dimming | Support |
USB Drive Compatibility | Supports FAT32 format |
