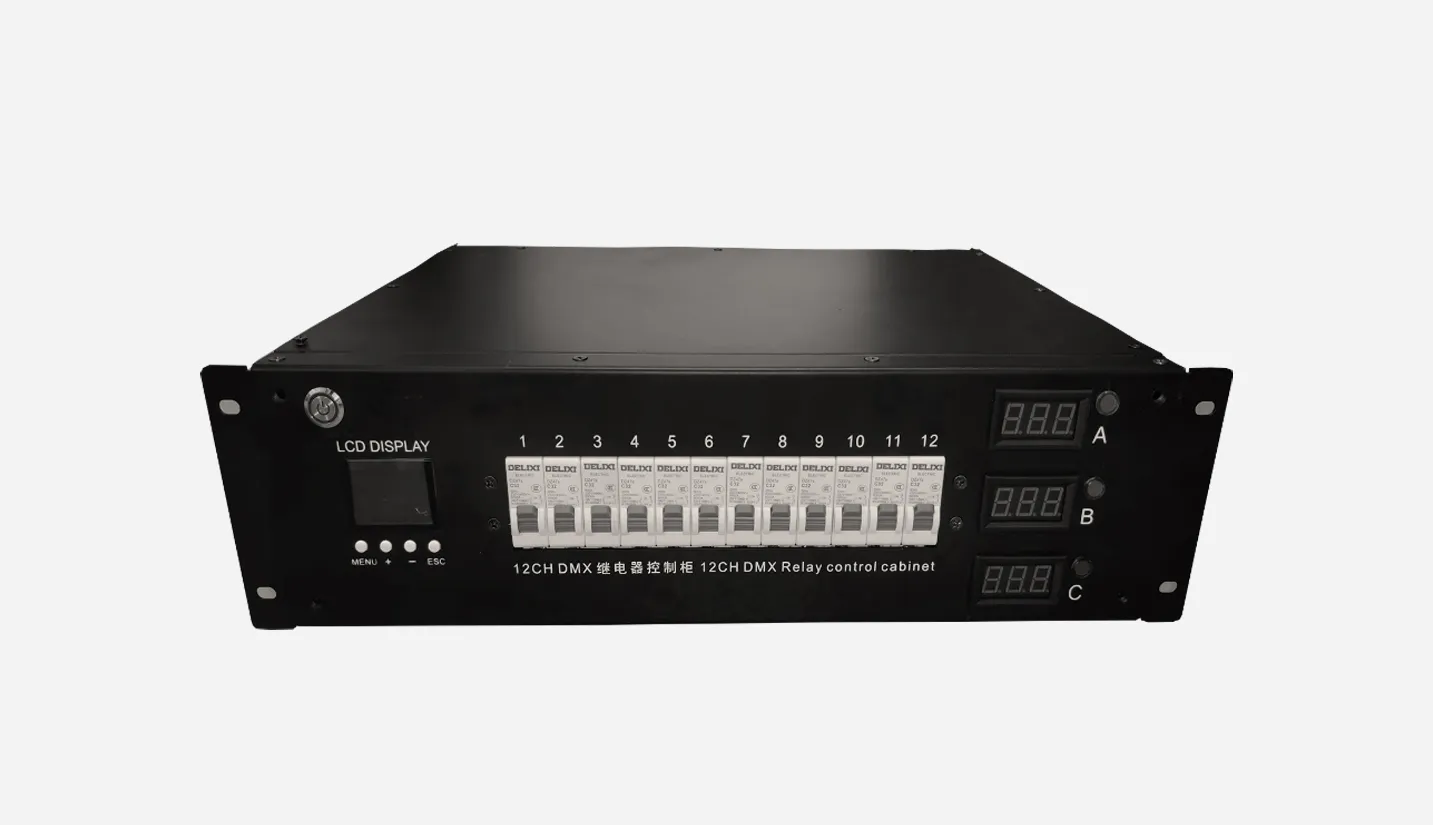

.webp "12-Channel Digital Power Distribution Box")
12-channel DMX512-controlled power distribution
Status retention when console powers off; resets to OFF on restart
Three-phase AC380V ±10%, 50Hz ±5% input
12 × 4kW output with 32A Bakelite sockets
Overload and short-circuit protection with air switches
TTL LCD color display for intuitive operation
Stable DMX signal output via shielded cable
The ZT1204DMX-P1 is a 12-channel DMX-controlled power distribution box designed for stage lighting and professional entertainment applications. It provides reliable three-phase AC power distribution with DMX512 control, allowing both manual and console-based operation. The unit is equipped with high-capacity circuit protection, intuitive LCD display, and flexible control options, ensuring safe, stable, and convenient power management for lighting loads up to 4kW per channel.
Model | ZT1204DMX-P1 |
Channels | 12 |
Power Supply | Three-phase Four-wire AC380V ±10%, 50Hz ±5% |
Rated Power | 12× 4kW Per Channel |

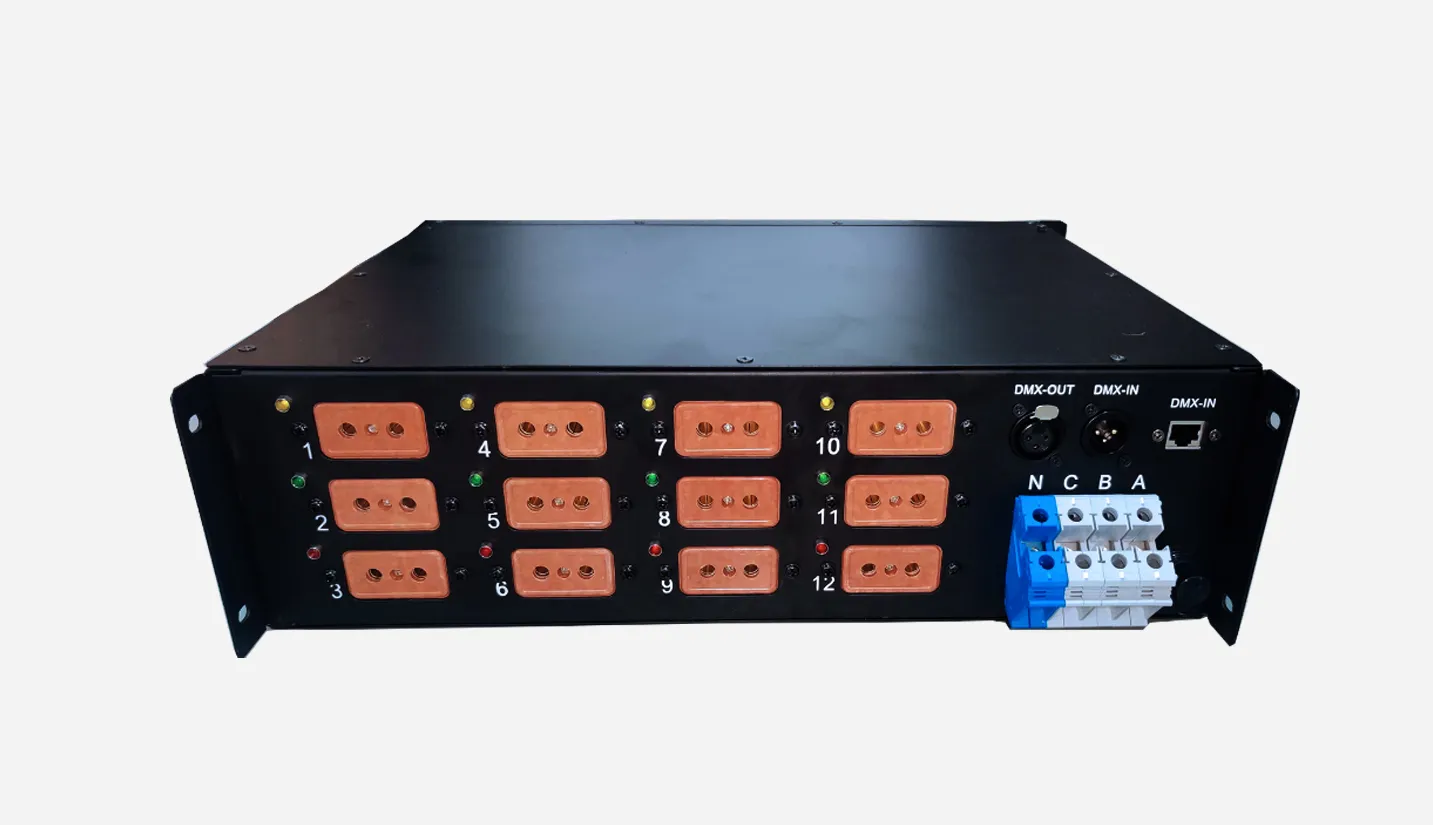

Output Socket | 12 × 32A Bakelite Sockets |
Circuit Protection | Dual Overload and Short-circuit Protection, 12 × Delixi 1P C32 Breakers |
Input Terminal | 4P 35mm² UK Terminal |
Output Voltage | AC 220V per Channel |
Control | DMX512 Control with Network Interface |
Internal Wiring | Main Line 16mm², Branch Line 4mm² |
Signal Wiring | 128-Wire Shielded Cable for DMX Outputs |
Display | TTL LCD Color Screen |
Dimensions (L × W × H) | 485 × 367 × 124 mm |
