16-Channel Rack-mounted Digital Mixing Console

16-Channel Rack-mounted Digital Mixing Console DN16

12 MIC/Line inputs, 2 stereo input groups, and 1 USB playback input
Input channel panning control
MIC input gain adjustment (analog gain)
MIC input gain adjustment (digital gain)
+48V phantom power (individually switchable for each MIC channel)
Built-in noise gate, compressor/limiter, high-pass and low-pass filters, 8-band parametric EQ, delay, and input channel balance control
Input and output EQ with RESET/Bypass function
Multi-functional push encoder knob
Each channel features a multi-functional menu, mute, and monitoring
1 MAIN bus, 8 AUX buses, 1 FX bus, 1 REC bus, and 1 SOLO bus
10 physical output ports (L/R, AUX1–AUX8)
Output processing: high-pass and low-pass filters, 8-band parametric EQ, and 31-band graphic EQ
Digital recording function
Dual-row, dual-color 20-segment precise level meters
USB playback supporting MP3, FLAC, WAV, and other formats
10 scene memories for quick recall and switching
Supports wired network control (or wireless control via an external router)

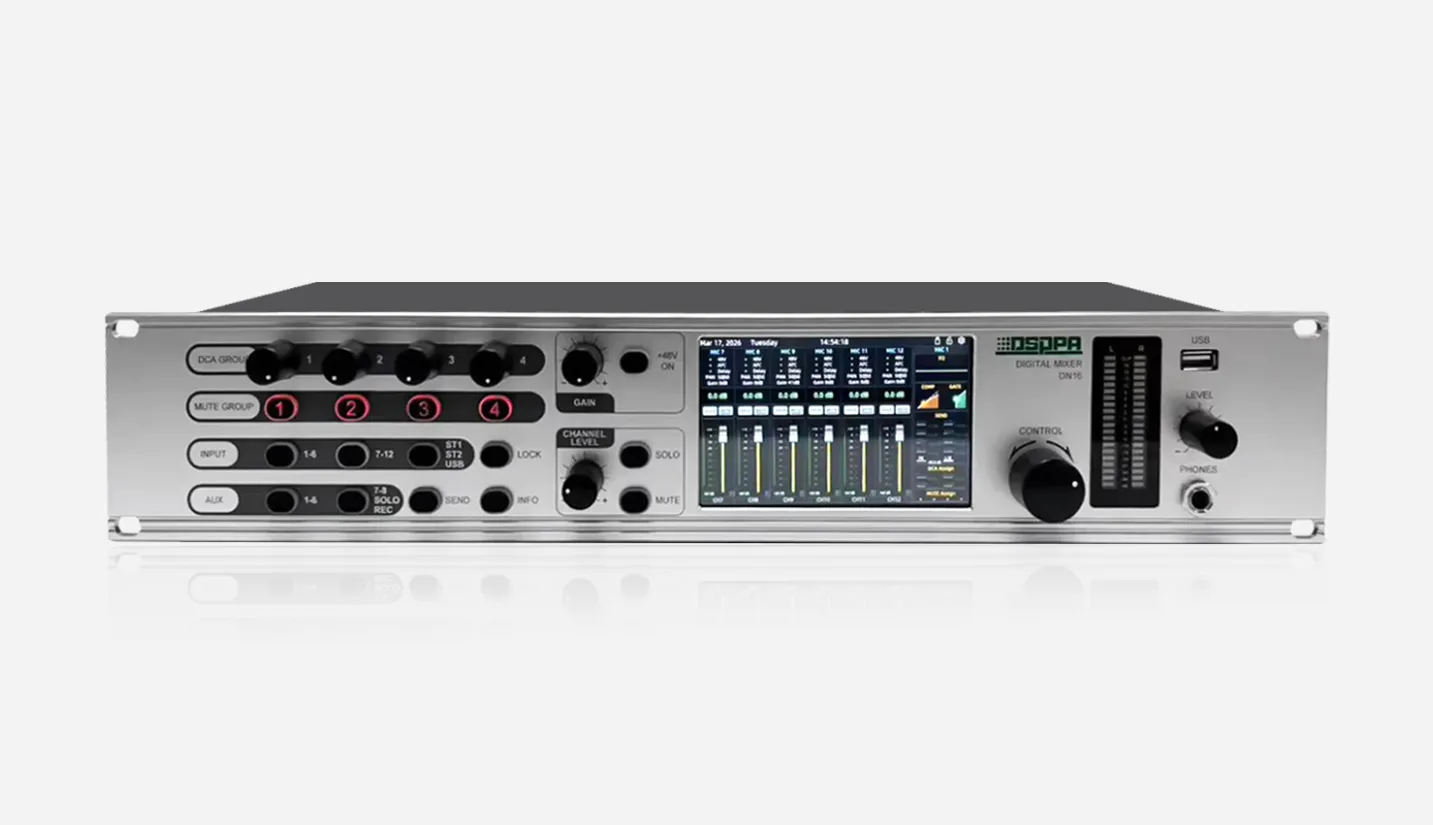

5-inch 800×480 high-definition capacitive touchscreen
Supports RS232 / RS485 serial control for central control systems
Integrated bus mixing send function

Get Quotation

DETAILS

SPECS

This product is an innovative and versatile rack-mounted digital mixer, featuring a compact size, lightweight design, comprehensive functions, intuitive operation, and fast response.

With support for multiple scene settings and seamless switching, this product is well suited for a wide range of applications, including live performances, conferences, schools, churches, cultural halls, weddings, concerts, home use, and bands. The device can be quickly operated via a 5-inch high-definition LCD touchscreen combined with physical buttons. It also supports web-based control through an RJ45 connection to a computer without the need for additional drivers. In addition, RS-485 allows integration with a central control system for remote operation, making it suitable for various scenarios.

Specifications of 16-Channel Rack-mounted Digital Mixing Console DN16

Model		DN16
Mic/Line Input	Mic/Line Input	12 × XLR balanced inputs
	Input Analog Gain	0 dB to 42 dB (1 dB steps)
	Max. Input Level(XLR)	+18 dBu
	Input Impedance(XLR, balanced)	2.4 kΩ
	+48V Phantom Power	Support
Stereo Line Input	ST1 Input	XLR Balanced Connector
	ST2 Input	XLR Balanced Connector
	USB Input	USB Drive
	Max. Input Level (ST)	+18dBu
	Input Impedance (TRS/RCA)	2.4KΩ
Output	AUX1-8	XLR Balanced Connector
	Main Output (L/R)	XLR Balanced Connector
	Monitor Output	1/4 TRS
	Output Impedance	100Ω
	Frequency Response	20Hz-20KHz ±0.5dB
	Sampling Rate	48KHz±100PPM
	ADC/DAC	48 kHz / 24-bit
	Distortion	<0.005% (20 Hz–20 kHz, 0 dB)
	SNR (0 dB)	100 dB (A-weighted)
	SNR (Max)	116 dB (A-weighted)
	Dynamic Range	113 dB (A-weighted)
Input Processing	Input Source	Local CH1-CH8, ST1/2, USB
	Equalizer	8-band Parametric EQ (20Hz-20KHz) ±10dB, Q Value 0.4-25
	High/Low Pass Filter	12dB 20Hz-20KHz
	Noise Gate	-90 dBu to -30 dBu
	Attack/Release	0.07–512 ms / 45–3400 ms
	Compressor	-36 dBu to +18 dBu
	Ratio	1:1 to 1:16
	Delay	Max 100 ms
Output Processing	Output Channels	8 AUX, 1 L/R, 1 SOLO, 1 REC
	Delay	Max 500 ms
	Equalizer	8-band parametric EQ (20 Hz–20 kHz, ±10 dB, Q Value: 0.4–25); 31-band graphic EQ (20 Hz–20 kHz)
	High/Low Pass Filter	Three types available: Butterworth, Bessel, and Linkwitz-Riley. ·Butterworth slopes: 6/12/18/24/30/36/42/48 dB/Oct ·Bessel slopes: 6/12/18/24/30/36/42/48 dB/Oct · Linkwitz-Riley slopes: 12/24/36/42 dB/Oct
Control	Knob	Multi-functional push encoder
	Display	5" IPS, 800×480
	Grouping	Supported
	Network	TCP / IP (Web Control)
	Wired Control	Windows PC Web Control
USB	Driver	USB-A
	Device	Supports One USB Storage Device (USB Flash Drive)
	Stereo Recording	2 Channels , Wav 48KHz 24Bit
	Stereo Playback	2 Channels (Wav, MP3, Flac, Apv, Ogg, etc.) 32-192KHz, 16-24Bit
System		Linux System
Power Supply		100V-240V AC，50-60Hz
