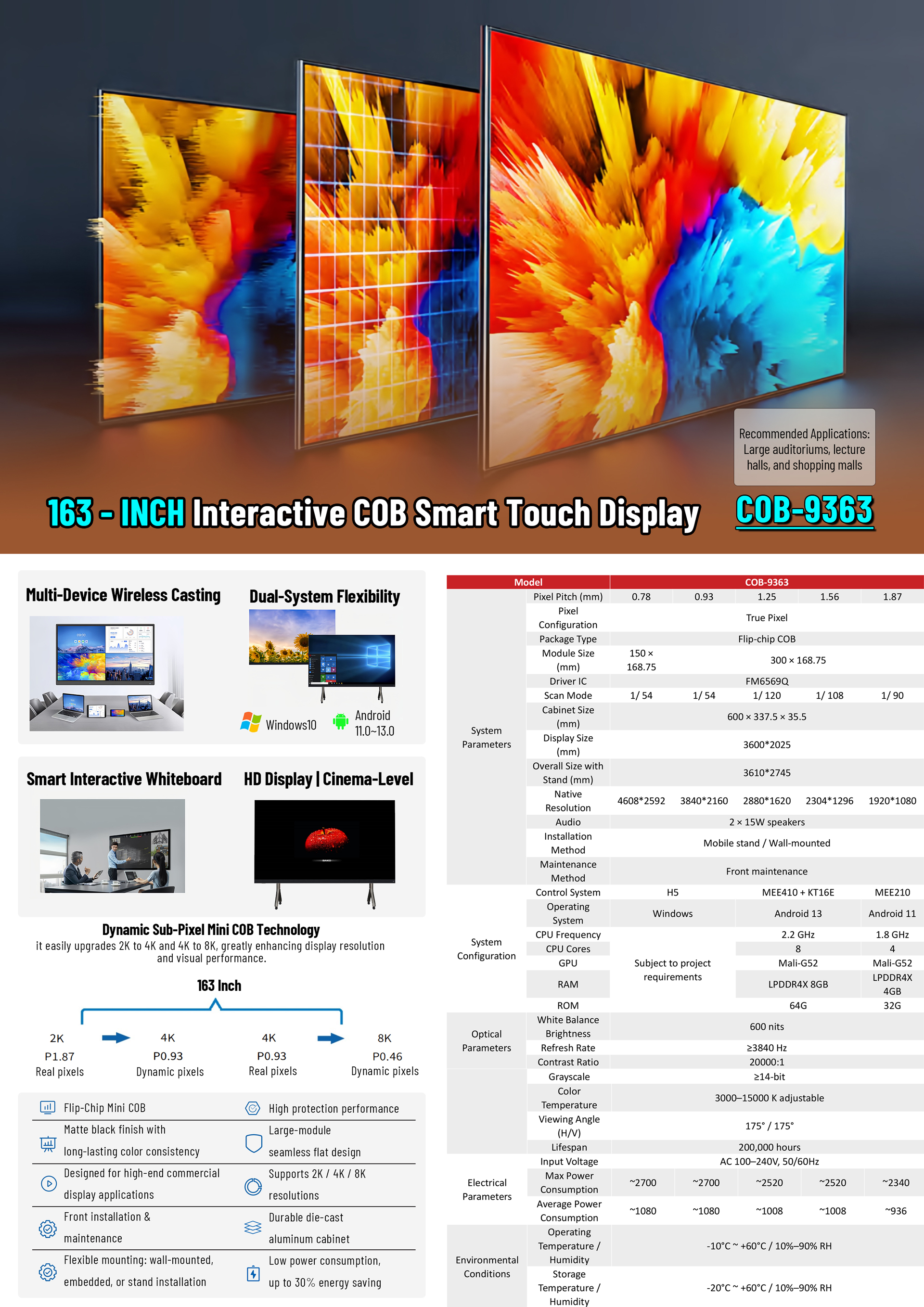

163-Inch Interactive COB Smart Touch Display COB-7863 COB-9363 COB-2563 COB-5663 COB-8763

  • Powered by Android 13 with a customizable UI interface, enabling third-party application installation for enhanced functionality and flexibility.

  • Provides seamless wireless screen sharing across multiple operating systems, including Windows, macOS, iOS, and Android devices.

  • Enables up to 9-screen split display, allowing multiple content sources to be presented simultaneously for efficient collaboration and information sharing.

  • Compatible with wireless presentation dongles and various terminal platforms, including Windows, macOS, Linux, and other operating systems.

  • Optional infrared multi-touch technology allows multiple users to write, annotate, and interact with the display simultaneously, improving meeting efficiency.

  • Equipped with an infrared voice remote control, offering convenient voice operation for intelligent conference room applications.

  • Supports H.264 and H.265 decoding with 4K@60Hz ultra-high-definition video playback, delivering smooth and detailed visual experiences.

  • Features an ultra-wide 175° horizontal and vertical viewing angle, ensuring clear and consistent image quality from different viewing positions.

  • Offers flexible image adjustment options, including color temperature, hue, and saturation settings, adapting to various display environments.

  • Includes multiple preset display modes such as Standard, Conference, Vivid, and Portrait, allowing quick switching between different visual styles.

  • Built-in eye protection mode reduces blue light emission and helps minimize eye fatigue during extended viewing periods.

  • Provides intelligent file management with categorized storage for images, videos, documents, and other digital content.

  • Supports personalized startup customization, including boot logo and startup animation configuration.

  • Offers built-in wallpaper templates with the option to upload customized wallpapers for a personalized user interface.

  • Adopts an ultra-slim and lightweight die-cast aluminum cabinet design, with a thickness of approximately 35.5 mm and a weight of around 4 kg per cabinet.

  • Features a front-access maintenance structure with hot-swappable modules, enabling faster installation, replacement, and system servicing.

  • Supports flexible installation options including front and rear mounting, wall mounting, and mobile stand installation, with a foolproof connector design for quick full-screen assembly.

Get Quotation
DETAILS
SPECS

Designed with ultra-high-definition visual performance and a slim, elegant structure, this COB LED Display combines energy efficiency, wireless collaboration, and video conferencing functions into one intelligent display solution. It is ideal for meeting rooms, boardrooms, control centers, and professional environments across government, enterprise, finance, and other industries.



Specifications of 163-Inch Interactive COB Smart Touch Display COB-7863 COB-9363 COB-2563 COB-5663 COB-8763

Model

COB-7863

COB-9363

COB-2563

COB-5663

COB-8763

System Parameters

Pixel Pitch (mm)

0.78

0.93

1.25

1.56

1.87

Pixel Configuration

True Pixel

Package Type

Flip-chip COB

Module Size (mm)

150 × 168.75

300 × 168.75

Driver IC

FM6569Q

Scan Mode

1/ 54

1/ 54

1/ 120

1/ 108

1/ 90

Cabinet Size (mm)

600 × 337.5 × 35.5

Display Size (mm)

3600*2025

Overall Size with Stand (mm)

3610*2745

Native Resolution

4608*2592

3840*2160

2880*1620

2304*1296

1920*1080

Audio

2 × 15W speakers

Installation Method

Mobile stand / Wall-mounted

Maintenance Method

Front maintenance

System Configuration

Control System

H5

MEE410 + KT16E

MEE210

Operating System

Windows

Android 13

Android 11

CPU Frequency

Subject to project requirements

2.2 GHz

1.8 GHz

CPU Cores

8

4

GPU

Mali-G52

Mali-G52

RAM

LPDDR4X 8GB

LPDDR4X 4GB

ROM

64G

32G

Optical Parameters

White Balance Brightness

600 nits

Refresh Rate

≥3840 Hz

Contrast Ratio

20000:1

Grayscale

≥14-bit

Color Temperature

3000–15000 K adjustable

Viewing Angle (H/V)

175° / 175°

Lifespan

200,000 hours

Electrical Parameters

Input Voltage

AC 100–240V, 50/60Hz

Max Power Consumption

~2700

~2700

~2520

~2520

~2340

Average Power Consumption

~1080

~1080

~1008

~1008

~936

Environmental Conditions

Operating Temperature / Humidity

-10°C ~ +60°C / 10%–90% RH

Storage Temperature / Humidity

-20°C ~ +60°C / 10%–90% RH
