This system is a mini line array system with high power and high sound pressure level;
The box is made of special plywood for sea vessels with high reliability, and all metal accessories are made of high-quality aluminum alloy.
Powered by high peak power switching power supply, with Class-D independent power amplifier.
Excellent for mobile applications.

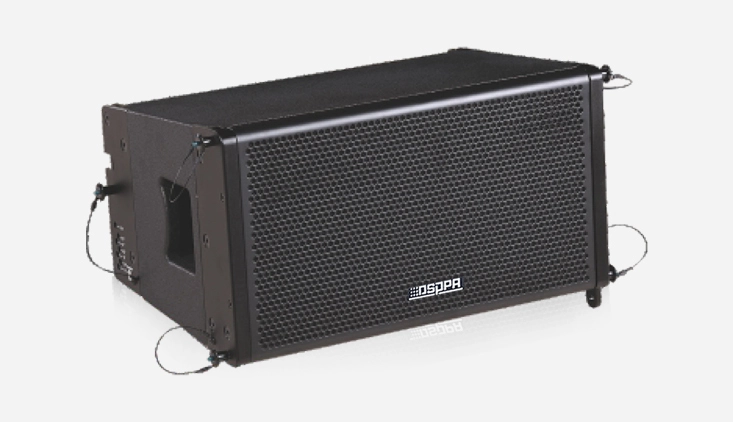

The LA1423A is a versatile line array speaker, designed with a bass driver and two 2.5-inch treble drivers to deliver a frequency range from 58Hz to 18,000Hz. Its Class-D amplifier provides 1000W of power, ensuring robust and clear audio output. With its compact, marine-grade enclosure, this line array system is built to withstand the rigors of mobile use while providing exceptional sound quality.
Specifications of 2-Way Active Line Array Speaker
Model | LA1423A |
Drive Unit | 12” Bass×1, 2.5” Treble×2 |
Frequency Response | 58Hz-18000Hz |
Speaker Sensitivity (1m, 1W) | 97±2dB |
Max. SPL | 123±2dB |
Active Signal Input Impedance | 20kΩ |
Amplifier Power | 1000W |
Amplifier Input Sensitivity | 0.775V |
Directivity (H×V) | 120°×5°~20° (depending on the number of arrays) |
Amplifier Distortion | ＜0.05% |
Working Voltage | AC190V~240V/50Hz |
Dimension (W×D×H) | 582mm×414mm×343mm |
Weight | 24kg |
