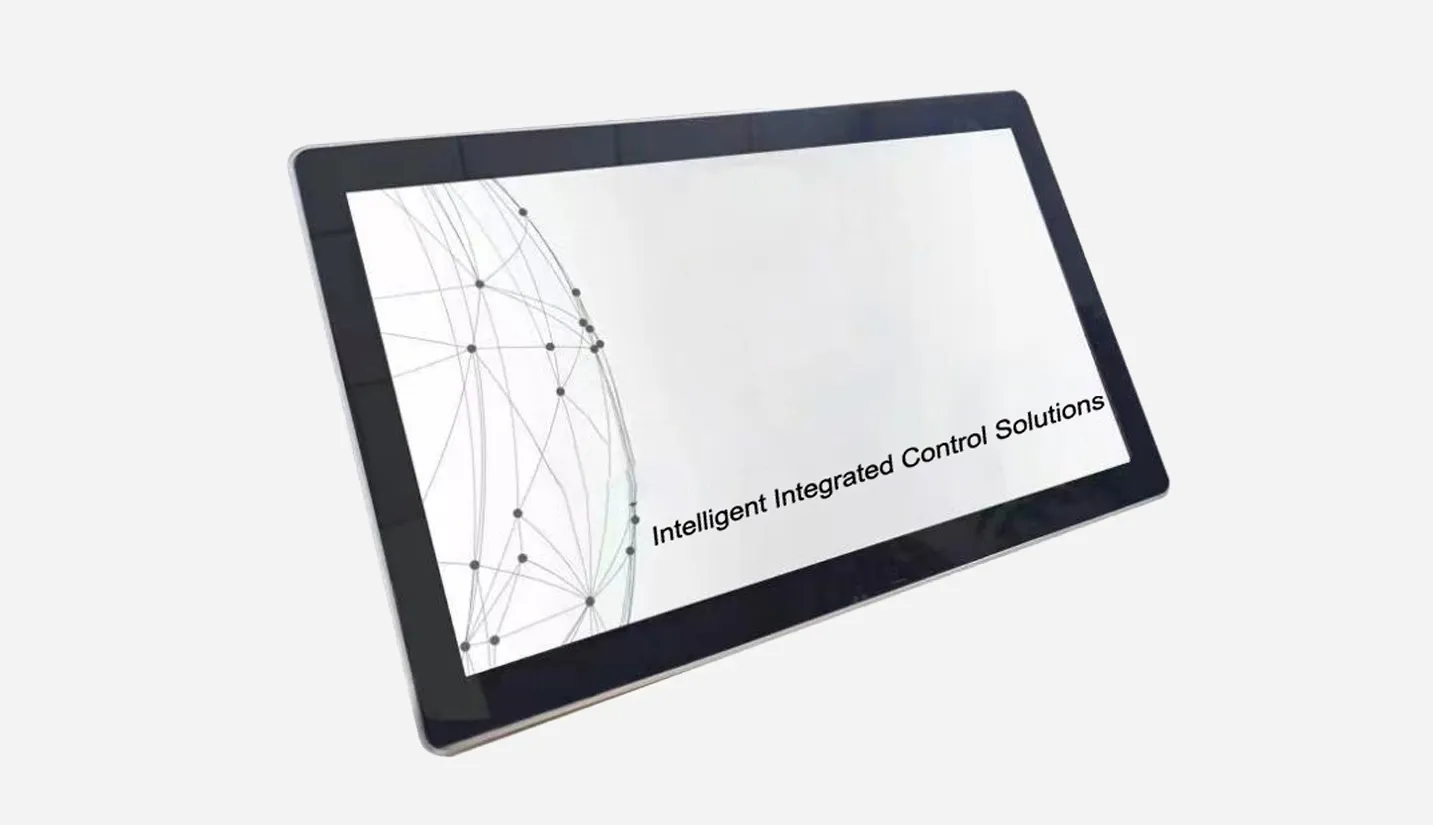

.webp "Stage Central Control System")
An integrated hardware and software show control system for centralized management of lighting consoles, stage fixtures, media players, and control devices.
Enables seamless integration of lighting, music, video, and control commands into synchronized show programming.
Supports one-key playback of fully programmed shows for efficient live performance operation.
Built with an industrial-grade motherboard and a 17.3-inch 500-nit high-brightness capacitive touchscreen for stable professional performance.
Supports MIDI timecode, Art-Net timecode, and RS232 command input/output for flexible system integration.
Provides expansion up to 32 Art-Net DMX universes and supports recording/playback of up to 32 DMX512 universes.
Features timeline-based editing for precise programming of lighting and multimedia events.
Supports video preview, cropping, and position adjustment for flexible visual control.
Equipped with 3 × DisplayPort outputs, 4 × USB 2.0 ports, dual Gigabit Ethernet ports, and a 3.5 mm stereo audio output.
Offers 256 GB SSD storage with support for unlimited show storage depending on available capacity.
Designed with future-ready support for multi-terminal control via Android and PC platforms (under development).
Supports device networking and interconnection expansion for future system integration (under development).
Operates on a wide voltage input range of AC 110–240V for stable global deployment.
The Smart Control System is an integrated hardware and software solution designed for show production and live performances. It enables centralized control of lighting consoles, stage lighting fixtures, LED video screens, media players, and other control devices. Users can freely program lighting scenes and synchronize them with music, video, and central control commands to create complete show sequences, allowing one-key playback of the entire show. It is suitable for smart banquet halls, multifunctional studios, cultural tourism landscapes, outdoor lighting installations, music restaurants, and multifunctional conference venues.
Model | KL660K |
Display | 17.3-inch capacitive touchscreen, 500-nit brightness, anti-glare, high-sensitivity touch |
Main Board | Industrial-grade motherboard |
Audio Output | 3.5 mm stereo headphone output |
USB Ports | 4 × USB 2.0 |
Video Output | 3 × DisplayPort (DP) UHD outputs |
Storage & Memory | 256 GB Kingston SSD, 8 GB RAM |
Network | 2 × Gigabit Ethernet ports |
Timecode | MIDI timecode, Art-Net timecode supported |
DMX Capability | Art-Net expansion up to 32 DMX universes; supports 32 × DMX512 recording/playback |
Control Protocols | RS232 command input/output |
Video Functions | Video cropping, repositioning, and preview monitoring |
Editing System | Timeline-based show editor |
Storage Capacity | Unlimited program storage (subject to disk capacity) |
Power Input | AC 110–240V wide voltage input |
Dimensions | 435 × 270 × 100 mm |
Weight | 3.82 kg |
