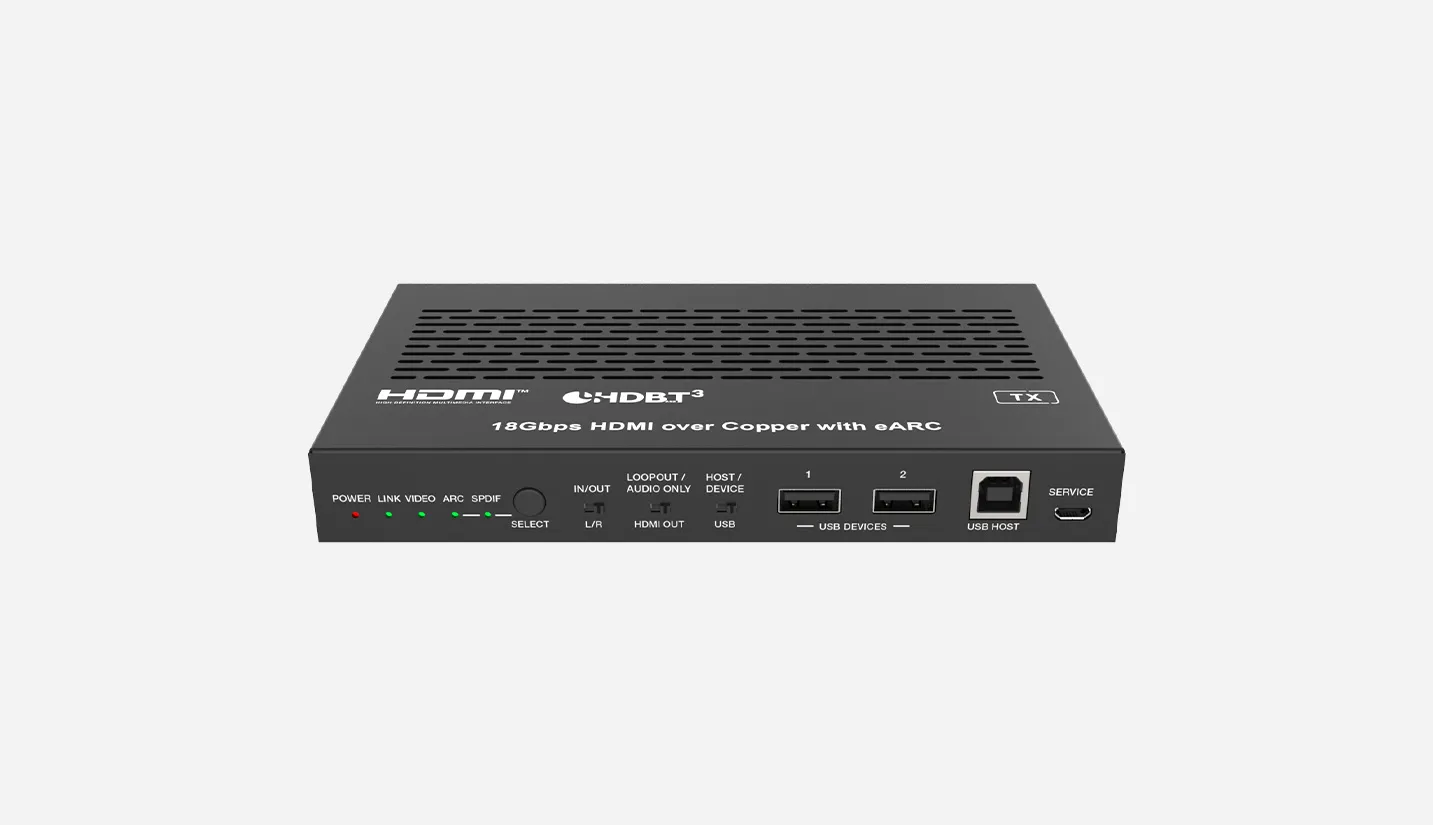

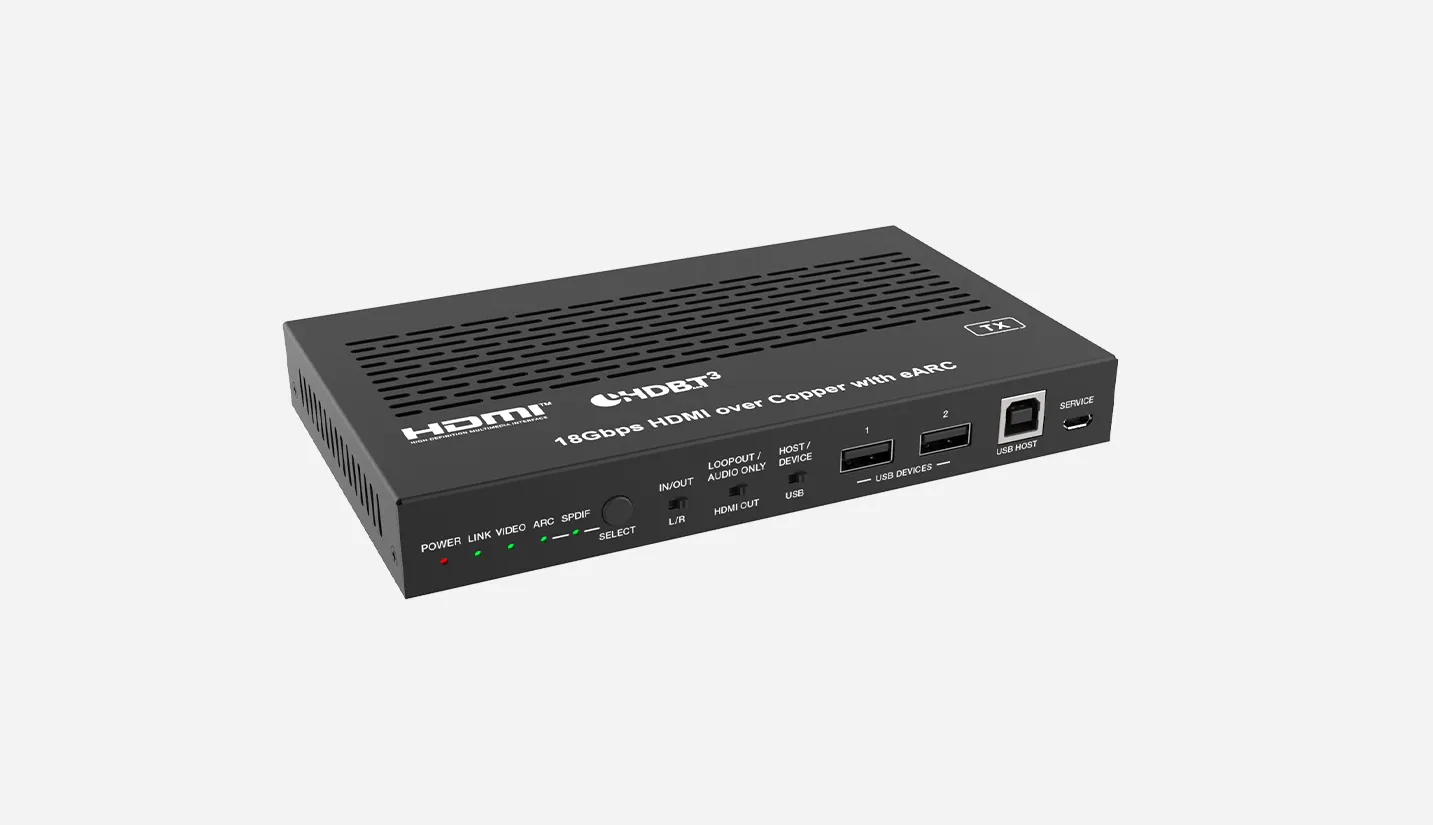

4K HDBaseT 3.0 AV Extension Kit (100m over CAT6A) D6145R

Fully compliant with HDMI 2.0b, HDCP 2.2, and advanced HDBaseT 3.0 standards for seamless interoperability.
Supports up to 18Gbps uncompressed video bandwidth for maximum signal integrity.
Delivers crisp Ultra-HD video playback with resolutions up to 4K@60Hz (YUV 4:4:4).
Native pass-through for dynamic high-dynamic-range formats including HDR, HDR10, HDR10+, Dolby Vision, and HLG.
Supports HDMI audio formats including LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Resolution, DTS-HD Master Audio, and DSD.
Extends uncompressed 4K video up to 100 meters over a single CAT6A/7 cable with zero latency.
Supports eARC/ARC audio return routed back to the transmitter’s HDMI IN, Audio-Only HDMI OUT, and SPDIF OUT ports.
Supports one-way SPDIF digital audio reverse transmission from receiver to transmitter.
Features bidirectional pass-through for IR control, RS-232 serial commands, and 1GbE Ethernet network signals.
Supports USB 2.0 extension with configurable Host and Device modes for seamless KVM control.
Flexible 24V Power over Cable (PoC) allows either the transmitter or receiver to power the entire set via a single adapter.
Slim and compact chassis design for flexible, space-saving installation behind displays or in equipment racks

Get Quotation

DETAILS

SPECS

Powered by HDBaseT 3.0 technology, this extender kit delivers uncompressed 4K@60Hz 4:4:4 AV signals with zero latency up to 100 meters (328 ft) over a single CAT6A/7 cable. It seamlessly unifies 1GbE Ethernet, USB 2.0 (configurable Host/Device), RS-232, and bi-directional IR control into a single streamlined link.

Designed for flexible audio routing, the transmitter supports audio embedding/de-embedding, while the receiver handles de-embedding alongside versatile eARC/ARC return (routing TV audio back to the transmitter's HDMI IN, Audio-Only HDMI OUT, or SPDIF ports). Complete with bi-directional PoC (Power over Cable) for simplified installation, this extender is the premier solution for corporate video conferencing, AV signal distribution, and long-haul digital signage setups.

Specifications of 4K HDBaseT 3.0 AV Extension Kit (100m over CAT6A) D6145R

Model	D6145R / D6145C
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K@60Hz 4:4:4
HDBaseT Bandwidth	Main Link: 16Gbps; Return Link: 2Gbps
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space	RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats	PCM 2.0
SPDIF Audio Formats	LPCM2.0, AC3 5.1, DTS 5.1
IR Level	12Vp-p
IR Frequency	20K - 60KHz
USB Bandwidth	Up to 350Mbps
Ethernet	1000Mbps
RS-232	Up to 921600bps
Transmission Distance	100 m (via a single CAT6A/7 cable)
ESD Protection	Human Body Model: +8kV (Air Discharge), ±4kV (Contact Discharge)
Connections
Transmitter	Input Port: 1×HDMI IN [Type A, 19-pin Female] Output Ports: 1×HDMI OUT [Type A, 19-pin Female] 1×HDBaseT OUT [RJ45, 8-pin Female] 1×SPDIF OUT [S/PDIF] 1×L/R OUT [3.5 mm Stereo Mini Jack] Control Ports: 1×IR IN [3.5 mm Stereo Mini Jack] 1×IR OUT [3.5 mm Stereo Mini Jack] 1×RS-232 [Phoenix Connector] 1×SERVICE [Mini USB, Firmware Upgrade Port] 1×USB HOST [USB Type B] 2×USB DEVICES [USB Type A] 1×LAN [RJ45]
Receiver	Input Ports: 1×HDBT IN [RJ45, 8-pin Female] 1×SPDIF IN [S/PDIF] Output Ports: 1×HDMI OUT [Type A, 19-pin Female] 1×L/R OUT [3.5 mm Stereo Mini Jack] Control Ports: 1×IR IN [3.5 mm Stereo Mini Jack] 1×IR OUT [3.5 mm Stereo Mini Jack] 1×RS-232 [3-pin 3.81 mm Phoenix Connector] 1×SERVICE [Mini USB, Firmware Upgrade Port] 1×USB HOST [USB Type B] 2×USB DEVICES [USB Type A] 1×LAN [RJ45]
Chassis
Enclosure	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver: 170mm(L)× 102mm(W)× 22mm(H)
Weight	Transmitter: 425g, Receiver: 437g
Power Supply	Input: AC100~240V 50 / 60Hz Output: DC24V / 1A (US/EU Standard, CE/FCC/UL Certified)
Power Consumption	Transmitter / Receiver: 15.36W (POC)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20~90% RH (Non-Condensing)
Resolution / Cable Length	4K60-Meter	4K30-Meter	1080P60-Meter
HDMI IN / OUT	5m	10m	15m
Note: For optimal performance, it is recommended to use a premium high-speed HDMI cable.
