Integrates multiple conference functions in one unit, including discussion, sign-in, voting, rating, messaging, and service requests.
Comes with dedicated high-density cables, featuring one RJ45 plug and one RJ45 socket for daisy-chain connection between units.
Features an integrated square-column microphone stem with cardioid electret condenser microphone and dual-color indicator ring (red/green).
Excellent resistance to mobile phone interference.
Equipped with 4-inch square capacitive touch display for real-time status indication.
3.5 mm stereo headphone jack for monitoring other units and selecting interpretation channels.
Independent adjustment of microphone volume and headphone monitoring volume, with support for 12-band EQ.
Supports microphone noise reduction and automatic gain control (AGC).
Supports main/backup switching: automatically switches to the backup unit if the main unit fails, enhancing system reliability.
Built-in central control function for controlling external devices such as power, lighting, air conditioning, volume, curtains, and projectors.
Each conference unit has a unique ID number.
Built-in 3 UI themes with bilingual display support (Chinese/English).
Supports service requests such as pen, paper, staff assistance, tea, and coffee.
Supports camera auto-tracking when used with a conference host or control software.
Self-test function when connected to control host, including testing of buttons, microphones, LED indicators, and LCD screen.
Passive device powered by system host or PoE switch, with input voltage of +48V.
Chairman unit supports priority function and podium mode via host settings.
Chairman unit can initiate voting and approve delegate speaking requests.
lChairman unit can be activated freely without limitation on the number of active microphones and has full control over conference order.
Chairman unit connection position is unrestricted.

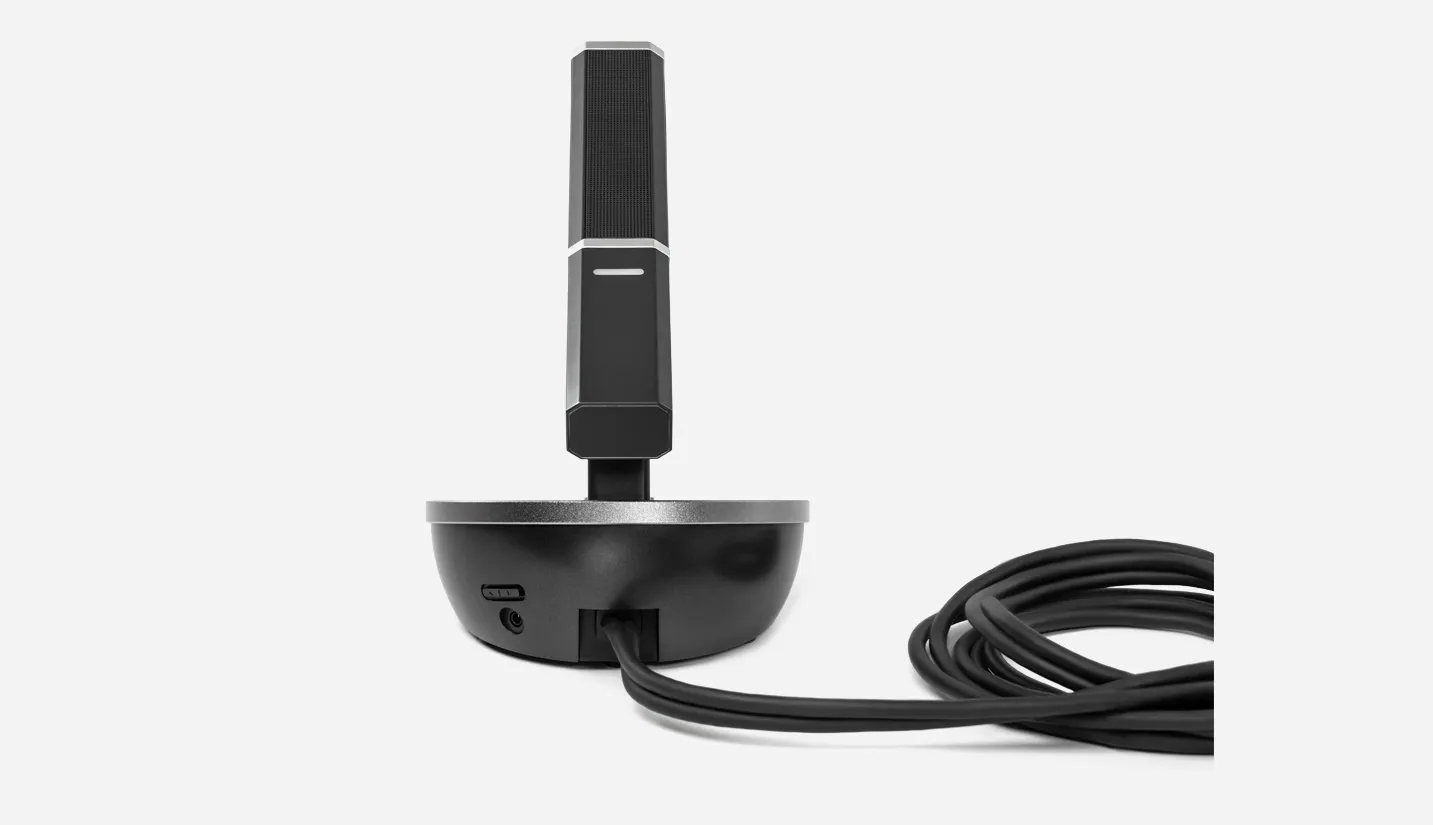

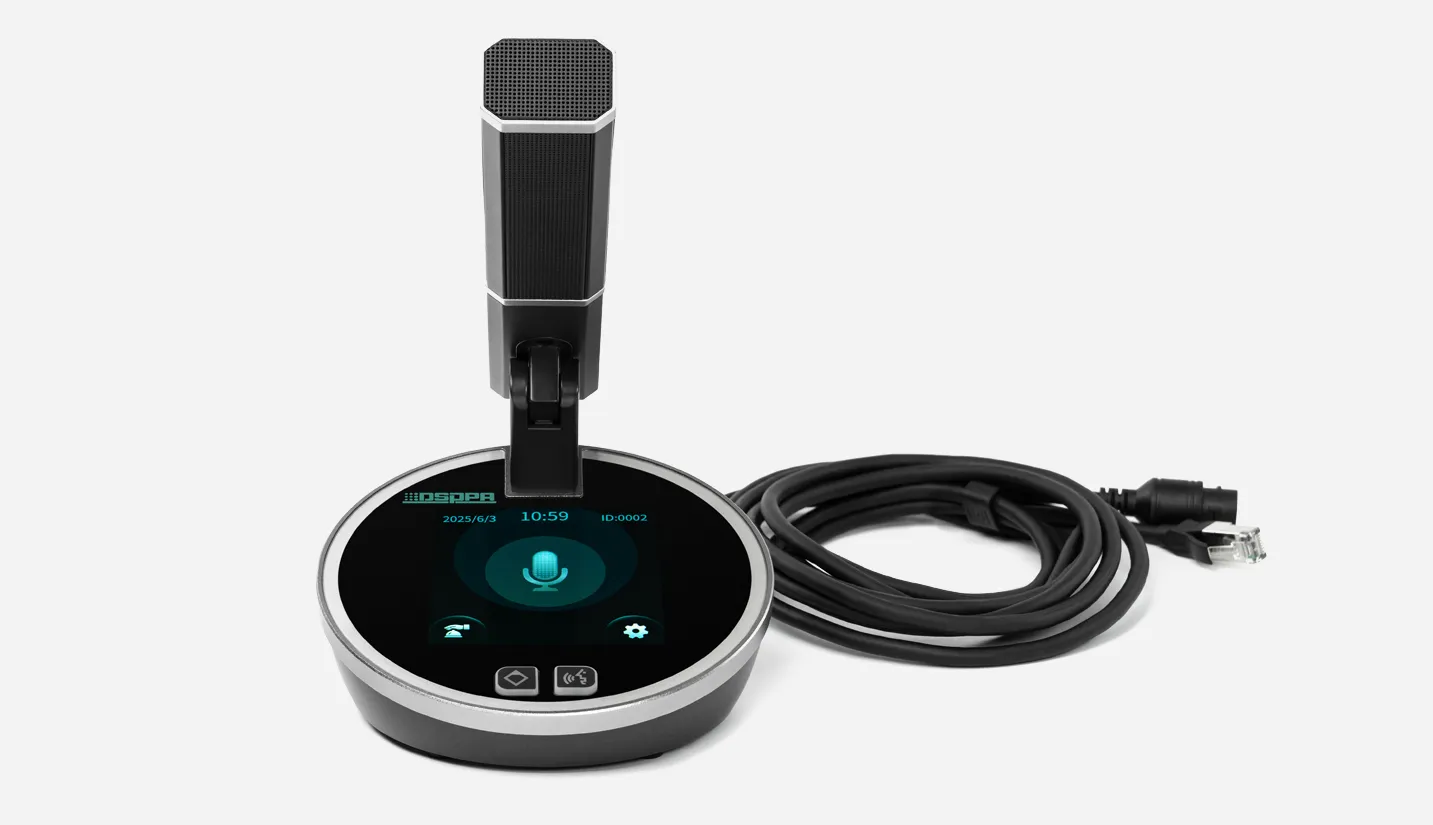

The D7155 Desktop Discussion & Voting Chairman Unit is an integrated digital conference terminal that combines discussion, sign-in, voting, and service request functions. It features a high-sensitivity cardioid condenser microphone and a 4-inch touch display for real-time status indication and intuitive operation. With strong anti-interference capability and clear, stable audio performance, the unit supports headphone monitoring, automatic gain control (AGC), and 12-band EQ adjustment. The chairman unit also provides conference control and voting initiation functions, making it ideal for government, corporate, and multi-purpose conference applications.
Model | D7155/D7156 | |
Structure Type | Desktop | |
Effective Frequency Range with Gain Limit (±3dB) | Unit A to Unit B | 80Hz–12kHz |
Host Line to Unit | 80Hz–16kHz | |
Unit to Host Line Output | 80Hz–16kHz | |
Static Power Consumption | <3W | |
Maximum Power Consumption | <4W | |
Signal-to-Noise Ratio | >75dB (A-weighted) | |
Harmonic Distortion | <0.3% | |
Headphone Output | 9dBu, 8–32Ω, 3.5mm | |
Operating Power | Host +48V or +48V PoE | |
Unit Interface | Network Interface | |
Microphone | Microphone Type | Cardioid electret condenser |
Input Sensitivity | -42 ±2 dBV/Pa | |
Frequency Response | 50Hz–20KHz | |
Maximum SPL | 125 dB | |
Product Dimensions (W × D × H) | 142 × 139 × 65 mm | |
Package Dimensions | 385 × 345 × 181 mm | |
Net Weight | 0.74 kg | |
Gross Weight | 2.5 kg | |
