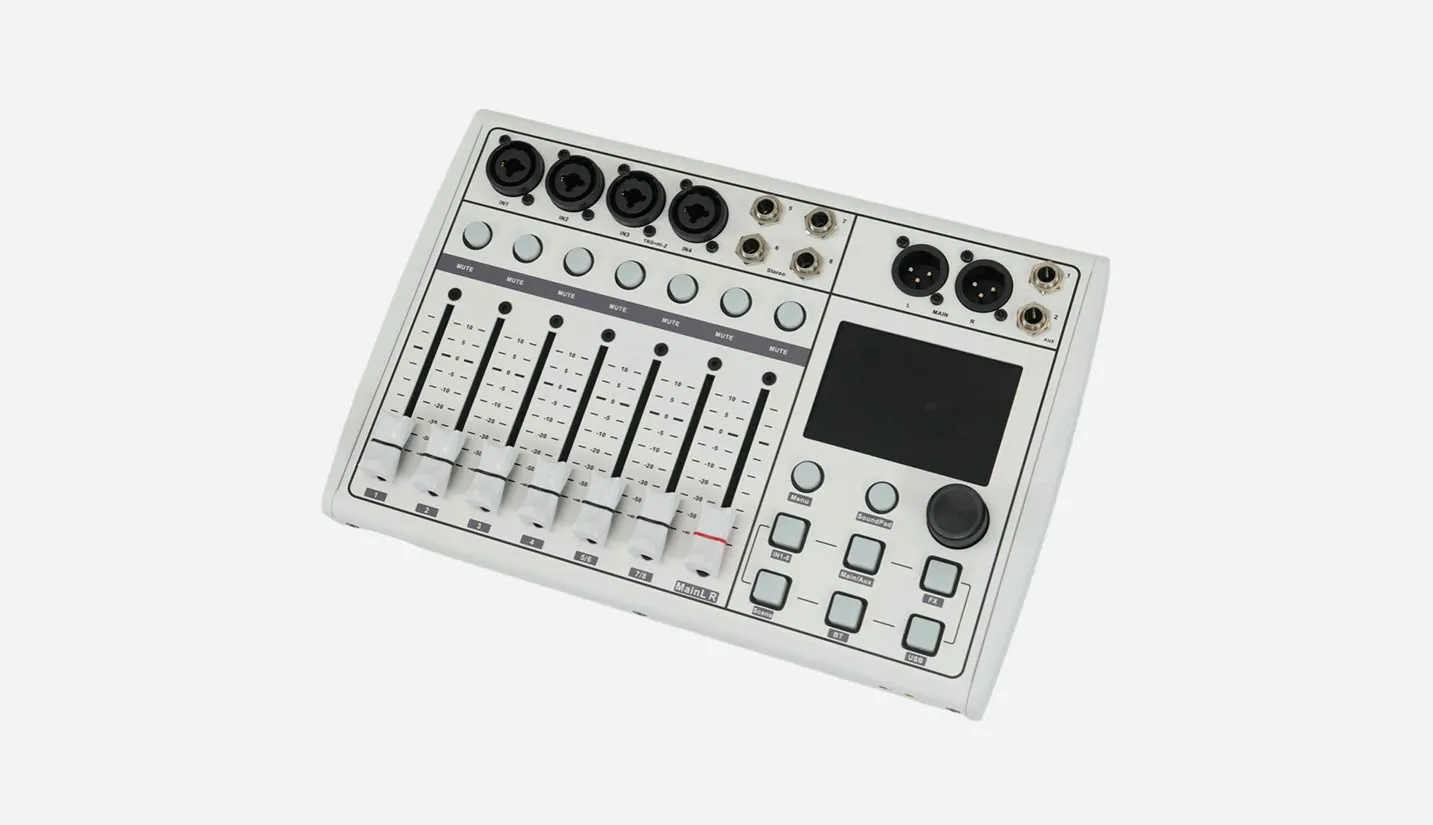

Digital Mixing Console with USB Audio Interface CM3108

8 analog inputs: IN1–IN4 feature electronically controlled gain microphone preamps with XLR/TRS combo connectors; IN3–4 TRS inputs support high-impedance sources; channels 5–6 provide balanced stereo TRS inputs; channels 7–8 provide unbalanced stereo RCA inputs. Featuring ultra-low noise, versatile parameter adjustment, and up to 52 dB of electronically controlled gain.
USB & Bluetooth audio input: 1 stereo USB audio interface and stereo Bluetooth 5.2 input.
Main & AUX outputs: Main L/R stereo outputs and 2 AUX auxiliary output channels.
Designed for live applications: Ideal for entertainment live streaming, small bands, and live mixing, with compatibility with iOS, macOS, Android, and Windows systems.
Built-in DSP processing: Equipped with a built-in DSP chip, with independent adjustment of microphone reverb and other audio parameters for flexible and convenient operation.
Multi-channel inputs: Supports multiple audio sources, including microphones, musical instruments, and line-level devices.
Real-time audio processing: Built-in audio effects including reverb, compressor, EQ, and more for real-time sound adjustment.
3.5-inch capacitive touchscreen LCD: Features a user-friendly interface with clear navigation, combined with a digital encoder and dedicated control buttons for fast and convenient system setup and operation.
Professional reverb effects: Independent control of reverb level and reverb time helps enhance vocal performance for live streaming.
7 × 60 mm motorized faders: Provide precise and convenient real-time control during live operation.
6 live-streaming sound effects: Includes laughter, applause, cheering, screaming, victory, and awkward effects, adding more fun and interaction to live streams.
OTG mobile interface: Supports direct connection to Apple and Android devices without additional adapters, enabling lossless stereo audio transmission.

Get Quotation

DETAILS

SPECS

Specifications of Digital Mixing Console with USB Audio Interface CM3108

Model	CM3108
Input Interfaces	8 analog inputs: IN1–IN4 electronically controlled gain microphone preamp inputs with XLR/TRS combo connectors; IN3–IN4 TRS inputs support HI-Z sources; channels 5–6 are balanced stereo TRS inputs; channels 7–8 are unbalanced stereo RCA inputs; 1 stereo USB audio interface; Bluetooth 5.2 stereo input
Output Interfaces	Main R/L outputs; 2 AUX auxiliary output channels
Display	3.5-inch capacitive touchscreen LCD, displaying input/output levels, function operation, and other information
Control Interfaces	Wi-Fi and hotspot
Input Channels	Function modules: Delay, Polarity, Phantom Power, 4-band Parametric EQ, Compressor, Noise Gate
Output Channels	Function modules: Delay, 4-band Parametric EQ, Limiter
Sampling Rate	48 kHz
Bit Depth	24-bit
Signal-to-Noise Ratio (SNR)	105 dB
Frequency Response	20 Hz–20 kHz, ±0.2 dB
Total Harmonic Distortion (THD)	<0.003% @ 4 dBu, A-weighted
Maximum Input Level	+18 dBu, balanced
Maximum Output Level	+18 dBu, balanced
Phantom Power	DC 48 V
A/D Dynamic Range	109 dB
Input-to-Output Dynamic Range	107 dB
Input Impedance	2 kΩ
Output Impedance	100 Ω
Residual Noise	≤−88 dBu, A-weighted
Channel Separation	100 dB @ 1 KHz
Common Mode Rejection Ratio (CMRR)	>60 dB @ 50 Hz
System Latency	≤6 ms
Filters	High-pass filter, Low-pass filter
Equalizer	Parametric EQ: Frequency: 20 Hz–20 kHz; Gain: −15 to +15 dB; Q: 0.4–4. Graphic EQ: Frequency: 20 Hz–20 kHz; Gain: −15 to +15 dB
Effects	Reverb
Operating Voltage	AC 100–240 V, 50/60 Hz
Maximum Power Consumption	12 W
Operating Temperature & Humidity	0°C–55°C, 10%–90% RH, non-condensing
Installation	Desktop
Power Supply	External power adapter, DC 5 V / 3 A output
Product Dimensions (L × W × H)	282 × 187 × 53.5 mm
Net Weight	2.2 kg (±0.5%)
Package Dimensions (L × W × H)	369 × 229 × 82 mm
Gross Weight	2.5 kg
