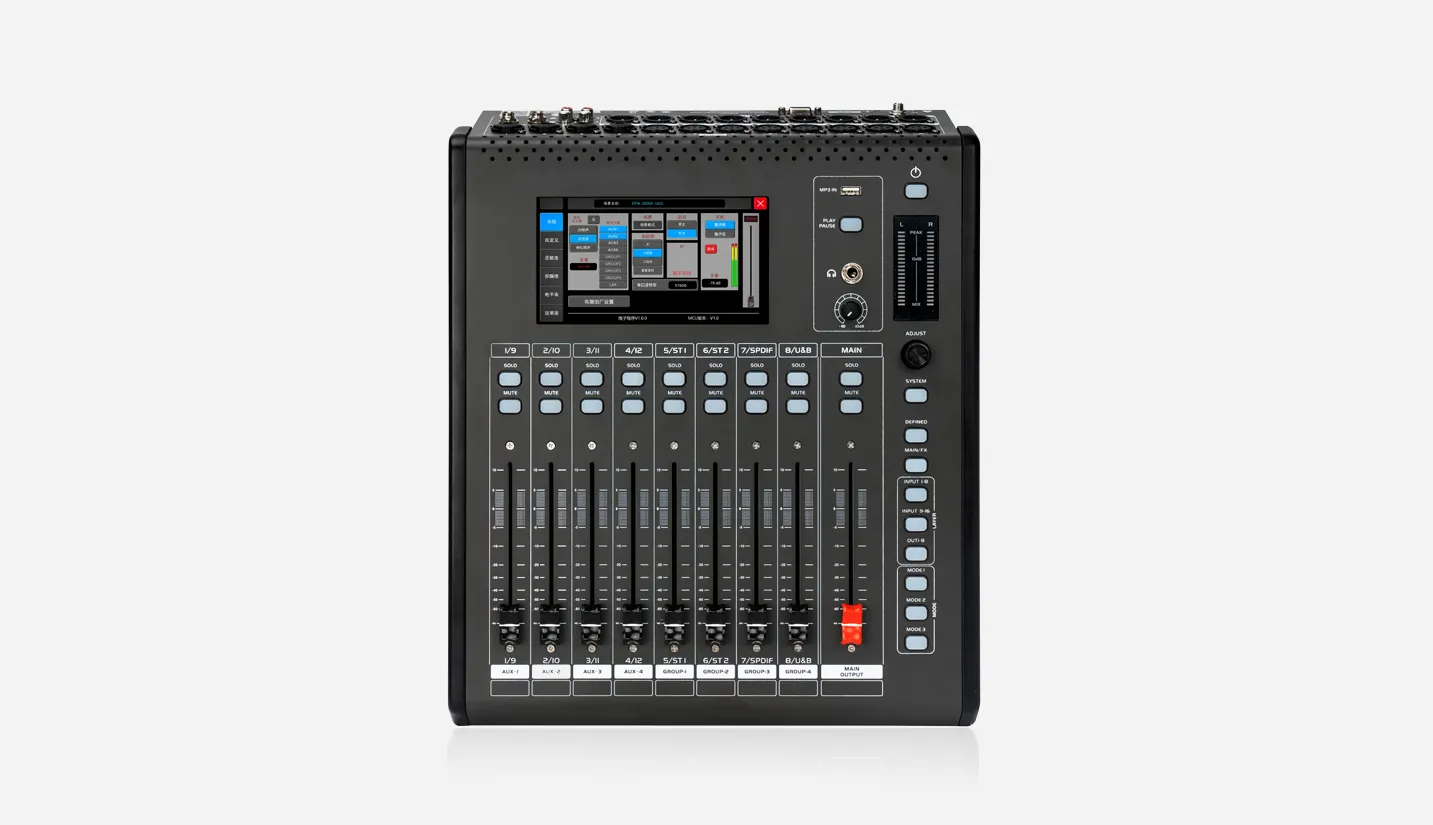

.webp "16-Channel Professional Digital Mixing Console")
12 channels mono microphone/line channel
2 stereo circuit channels
1 SPIDFl input/output channel
1 AES / EBU output channel
8 customizable XLR output ports
9 mixing bus (4 AUX bus, 4 GROUP bus, 1 MAIN bus)
2 FX bus (effect sending bus)
31-band GEQ
1 output port for headphones monitoring
1 USB port, support USB music playback
7 " 1024×600 touch screen
9 100mm stroke of electric fenders
3 quick mode loading keys
1 RS232 port, support central control
Support Bluetooth /USB playback, scene save and call
This is a kind of multi-functional digital mixer with many advantages such as small size, light weight, full-featured, intuitive and simple operation, friendly human interface. The flagship hardware configuration, using the 4th generation industrial floating-point SHARC processor,24bits/192kHz AD/DA. It has built-in echo, reverberation, mixing, delay, GEQ and more. This product is equipped with a 7-inch high-definition touch screen and 9100mm electric faders, fast and intuitive control, very suitable for all kinds of performance and conference places, schools, intelligent buildings, industrial and mining enterprises and individuals to use.
Model | CM1616 | |
Input | MIC / Line Input | 12 Channel Inputs (Balanced) + 2 Groups Stereo |
Mic Input Connector | 12 XLR inputs, including 4 COMBO XLR inputs and 2 6.3 Ports + 2 RCA Jack | |
Input Impedance | 3kΩ | |
Frequency Response | 20Hz-20kHz (+/-0.5dB) | |
Max. Input Level | +15dBu (Balanced) | |
THD | ＜0.01%@1K dBu | |
Phantom Power | +48V (CH-1 to CH-12) | |
S/N Ratio | -108dB A-Weighted | |
Phase | Normal / Reverse | |
Delay | 0 to 200msec | |
EQ | 4 Band Equalizer | Frequency Response: 20Hz-20kHz -20dB/+12dB |
Q=0.404 to 28.852 | ||
Low, LowMid, High Mid, High | ||
Mode: Bypass / Flat | ||
Compressor | Noise Gate | Threshold= -120dB to -20dB |
Compressor | Threshold=-12dB to 24dB | |
Attack: 3-100msec | ||
Release time: 2x, 4x, 6x, 8x, 16x, 32x | ||
The Compression Ratio: 1.0 to 128 | ||
XLR Outputs | Main Outputs (Balanced) | 8 Assignable Outputs XLR |
L/R + 4 Mono Bus + 4 Stereo Bus | ||
THD | 0.005% (20Hz-20kHz)<0.01%@1K | |
Frequency Response | 20Hz-20kHz (+/- 0.5dB) | |
Max. Output Level | +15 dBu | |
Output Impedance | ＜100Ω | |
Headset | Headphones Output Connector | TRS Jack |
Headphones Output Impedance | ＜100Ω | |
Max. Output Level | +20dBu | |
Digital I/O | Digital I/O | Bluetooth Stereo Input, Standard V5.0 |
USB Stereo Input, Format: WMA/MP3/APE/FLAC | ||
SPDIF Input & Output, Frequency 48kHz | ||
SPDIF Input & Output, Frequency 48kHz | ||
General | Crosstalk | -80dB |
AD/DA Converter | Up to 24 Bit/192kHz | |
DSP | 40-bit Floating Point Processor | |
FX Modules | 1×Reverb, 2×Echo, 1×31GEQ | |
Screen Resolution | 7” Touchscreen, 1024×600 | |
Faders | 100mm, 9 Faders Full-motorized | |
Hardware | Power Supply | 24V DC (AC90-240V 50/60Hz) |
Power Consumption | 50W | |
Dimension | Product Dimensions: 350×427×110mm Package Dimensions: 510×420×205mm | |
Weight | Net Weight: 4.7kg , Gross Weight: 7kg | |
Included Accessories | Adapter ×1, Power Cord ×1 | |
