Dual 15-inch three-way line array speaker design.
Features 2 × 15-inch low-frequency drivers, 6 × 5-inch mid-frequency drivers, and 3 × 3-inch high-frequency neodymium drivers.
Three-way configuration delivers powerful bass, clear midrange, and detailed high-frequency performance.
Wide horizontal coverage with focused vertical dispersion for effective sound projection.
Passive design for flexible system configuration and amplification.
Weatherproof construction suitable for demanding indoor and outdoor sound reinforcement applications.

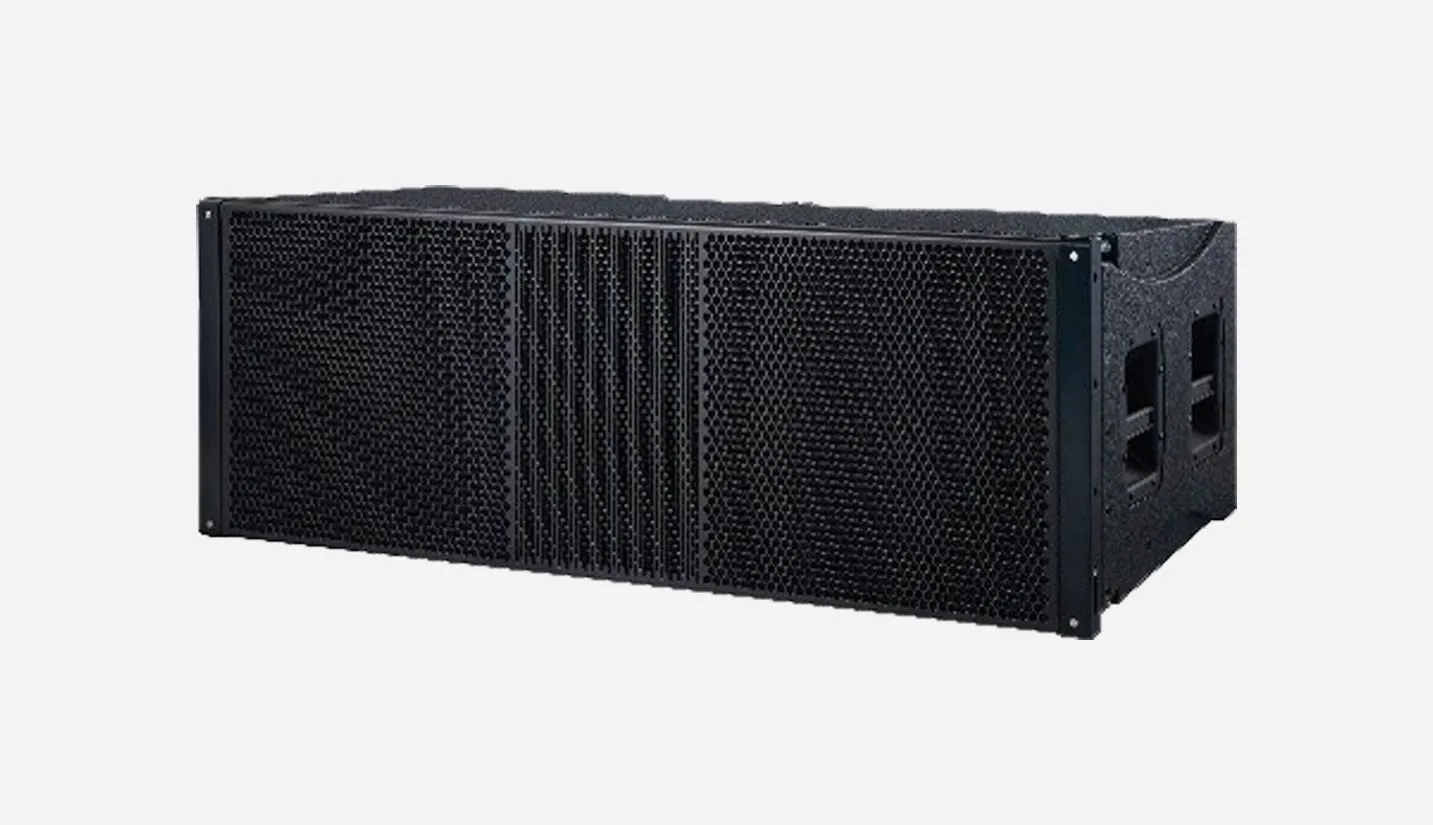

The LA315 is a dual 15-inch three-way passive line array speaker designed for high-performance sound reinforcement applications. Featuring two 15-inch low-frequency drivers, six 5-inch mid-frequency drivers, and three 3-inch high-frequency neodymium drivers, it delivers powerful low-frequency performance, clear midrange reproduction, and detailed high-frequency response. With a wide horizontal coverage and focused vertical dispersion, the LA315 is suitable for large-scale indoor and outdoor sound reinforcement applications.
Model | LA315 |
System Type | Three-Way Passive Line Array Speaker |
LF Drivers | 2 × 15", 8 Ω each |
MF Drivers | 6 × 5", 12 Ω |
HF Drivers | 3 × 3" Neodymium Drivers, 8 Ω |
LF Rated / Peak Power | 1400 W / 2800 W |
MF Rated / Peak Power | 720 W / 1440 W |
HF Rated / Peak Power | 300 W / 600 W |
LF Sensitivity | 101 dB |
MF Sensitivity | 106 dB |
HF Sensitivity | 115 dB |
LF Max. SPL | 132 dB Peak @ 1 m |
MF Max. SPL | 135 dB Peak @ 1 m |
HF Max. SPL | 136 dB Peak @ 1 m |
Frequency Response | 45 Hz–19 kHz (±3 dB) |
Dispersion (H × V) | 120° × 7° |
Color | Black |
Dimensions (L × W × H) | 1248 × 570 × 452 mm |
Net Weight | 77 kg |
