Operating in the UHF 550 to 950 MHz frequency band with strong anti-interference capability.
Front-mounted DP + HDMI 4K display interface, rear HDMI supports 4K60Hz
Hardware one-key restore, network wake-up, scheduled power-on function
Intelligent fan speed regulation
On-board antenna enhances WIFI signal output

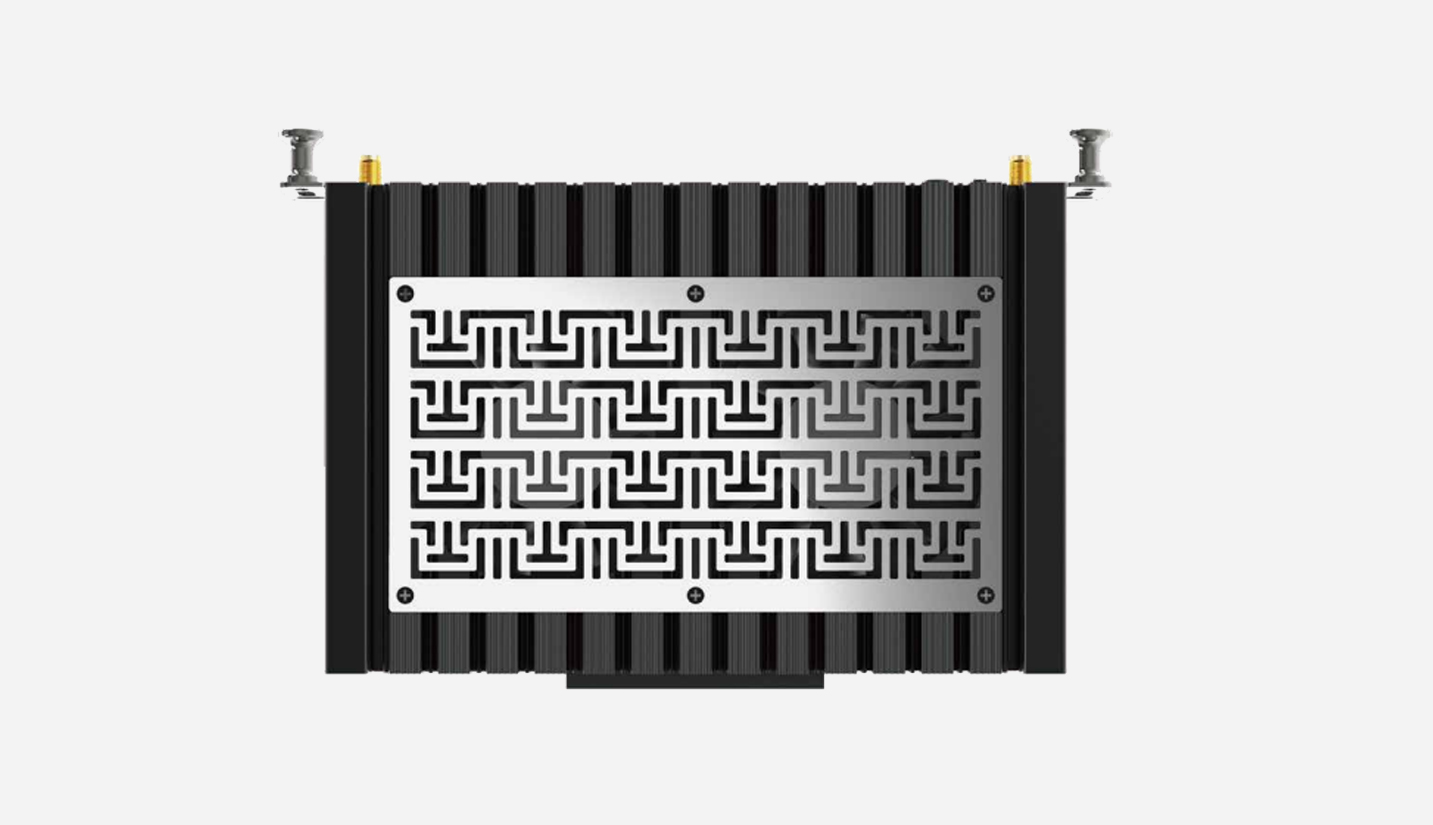

Chinese-style window lattice design

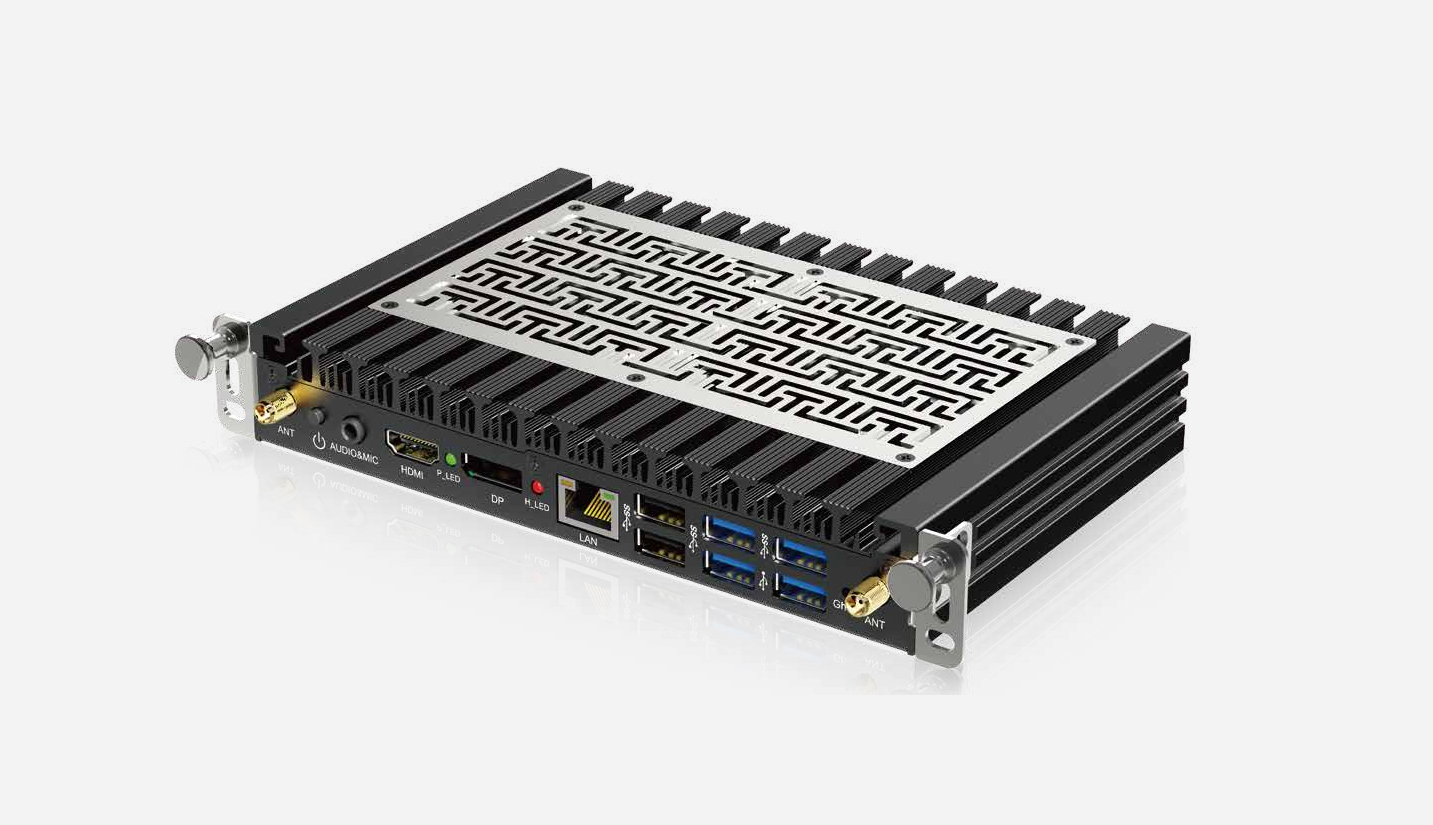

This product belongs to the European standard series, featuring an all-aluminum chassis design that exudes high-end sophistication. It incorporates a fin heat dissipation system coupled with air cooling design, delivering excellent thermal performance through dual cooling mechanisms. The onboard SMA antenna design ensures no signal attenuation, while supporting one-click CMOS clearing and one-click restore functions. The product is primarily applied in smart education, intelligent conferencing, electronic interactive whiteboards, smart healthcare, advertising media, and other fields.
Model | DCP-86P10 |
CPU | (8300H/8400H/9300H /9750H/10200H/10300H/10500H /10750H) |
Supports Intel*Core 8th/9th/10th Generation Notebook CPUs | |
Memory | 1 x SODIMM DDR4 ( Supports up to 32GB 2666MHz） |
Storage | MSATA Solid-state Drive Interface 1 x SODIMM DDR4 |
WIFI | M.2 2.4G&5G Dual Band WIFI+Bluetooth |
USB | Front end USB3.0 x3、USB2.0 x3、OPS end USB2.0 x2 USB3.0 x1 |
Display Interface | Front-end output: DP 1.2 3840 x 2160 4K60Hz |
HDMI1.4 3840 x 2160 4K30Hz | |
JAE end: HDMI2.0 3840 x 2160 4K60Hz | |
Ethernet Port | 1x10/100/1000Mbps(RJ45) |
COM Port | Implementing serial port functionality (default TTL) with motherboard reserved support for RS232 |
Video | LINE OUT&MIC IN 2-in-1 |
