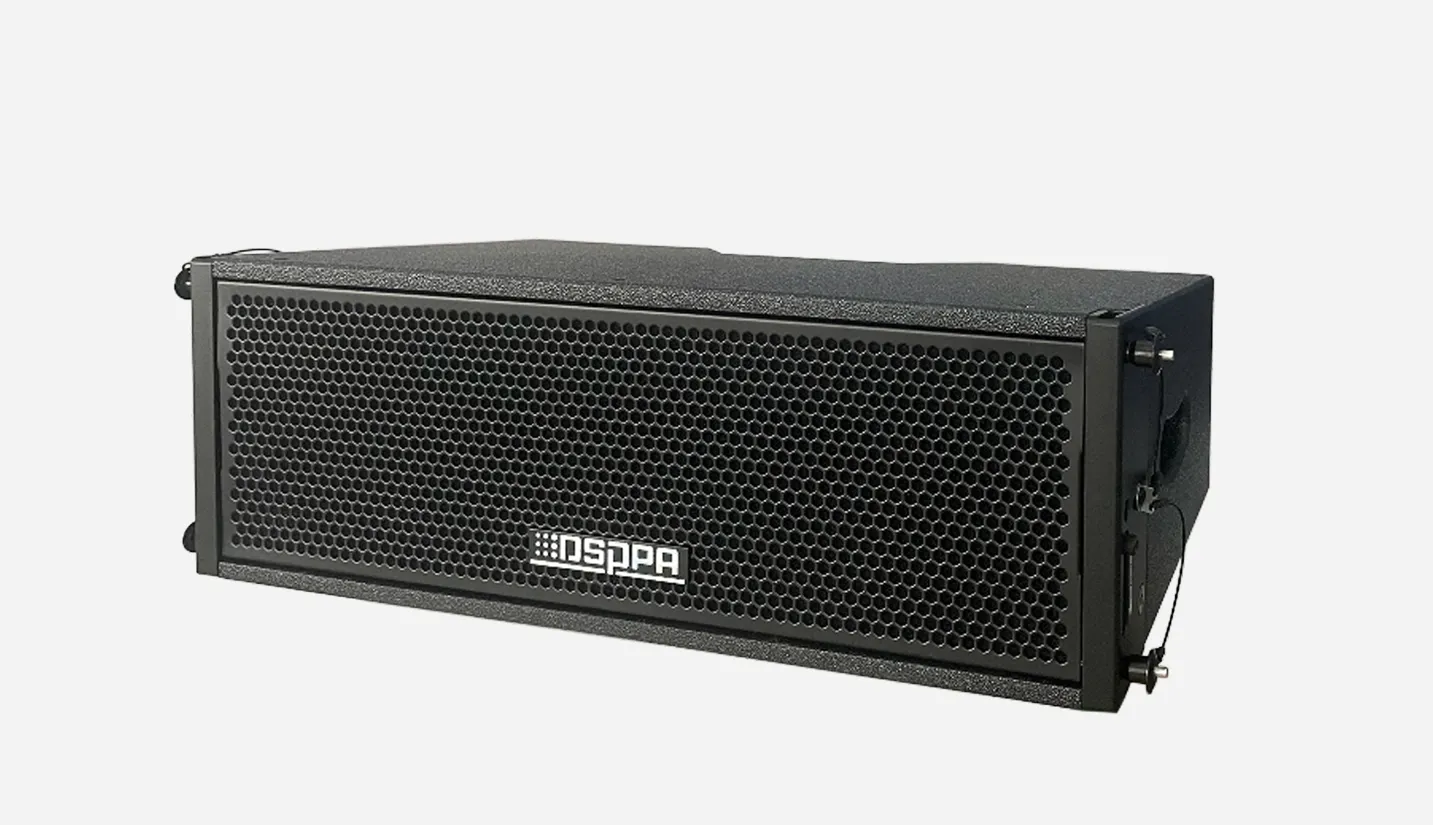

Equipped with two high-power 6.5” woofers and one 44mm compression driver, featuring a built-in high-precision crossover for carefully optimized sound integration.
The cabinet is made of professional-grade high-density plywood and coated with durable polyurea paint, suitable for a variety of indoor venues such as auditoriums and multifunctional conference rooms.
Both sides of the cabinet are fitted with a quick-angle adjustment mechanism, allowing multiple units to be easily hung or stacked to form continuous wave coverage, achieving long-distance and uniform sound field propagation.
The PL206 is a compact yet powerful line array speaker, delivering clear and balanced sound across a wide frequency range (150 Hz–18 kHz). With 2×6.5" woofers and 1×1.75" high-frequency driver, it achieves high sensitivity and a maximum SPL of 119 dB, making it ideal for indoor venues such as auditoriums and multifunctional conference rooms. Its durable construction and flexible installation design ensure reliable performance in various professional applications.
Model | PL206 |
System Configuration | 2×6.5" LF, 1×1.75" HF |
Frequency Response (±3dB) | 150Hz–18kHz |
Sensitivity | 95±2dB |
MAX. SPL | 119±2dB |
Input Impedance | 8Ω |
Rated Power | 300W |
Coverage (H×V) | 120°×20° |
Dimensions (H×W×D) | 196×570×290mm |
Net Weight | 14.2kg |
