Supports up to 1920×1080@60Hz high-definition input resolution
Features multiple inputs including 2×HDMI 1.4, DVI, VGA, CVBS, and USB playback
Enables seamless switching between multiple signal sources
Allows flexible video scaling, cropping, and image positioning
Delivers up to 2.6 million pixels loading capacity
Supports display width up to 3840 pixels or height up to 2000 pixels
Equipped with 4 Gigabit Ethernet outputs with redundancy support
Provides independent audio input/output and HDMI/USB audio decoding
Offers adjustment of contrast, brightness, saturation, hue, and sharpness
Supports precise brightness and color temperature adjustment
Maintains high grayscale performance even at low brightness
Supports storage and recall of up to 16 scenes
Enables plug-and-play USB playback of images and videos
Features OSD menu operation and infrared remote control
Supports USB and RS232 control interfaces
Complies with HDCP 1.4 digital content protection
Supports advanced seam correction and calibration data management
Enables professional color gamut adjustment (requires compatible receiving card)

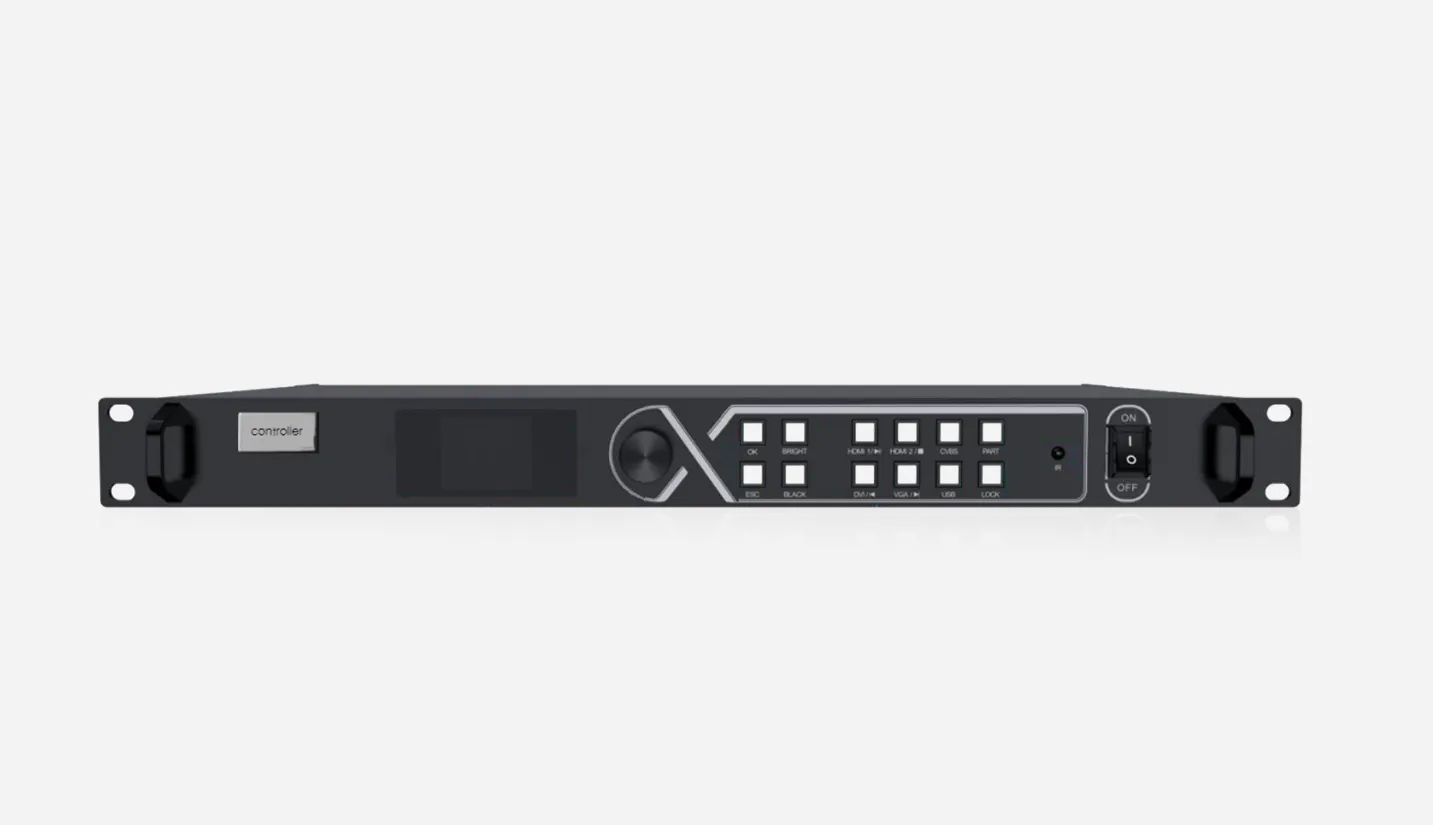

The LED video controller is a professional-grade device designed for LED display systems, featuring powerful video signal input and processing capabilities. It supports high-definition digital input signals up to 1920×1080 resolution, accommodates multiple types of HD digital interfaces, and allows flexible switching between multiple signal sources. It also supports free scaling and cropping of video sources. The device supports OSD menu control via infrared remote and includes USB playback functionality, allowing images and videos to be played directly from a U-DISK via the USB interface. Equipped with four Gigabit Ethernet output ports, a single unit can support LED displays with a maximum width of 3840 pixels or a maximum height of 2000 pixels.In addition, it offers a range of practical and versatile features, providing flexible screen control and high-quality image display, making it an ideal solution for small-sized LED display applications.
Model | DP-X4m |
Product Dimensions | 482.6mm (19.0") × 44.0mm (1.7") × 292.0mm (11.5") |
Package Dimensions | 523.0mm (20.6") × 95.0mm (3.7") × 340.0mm (13.4") |
Net Weight | 3.13kg (6.90lbs) |
Gross Weight | 4.16kg (9.17lbs) |
Power Supply | AC100-240V, 50-60Hz |
Power Consumption | 10W |
Operating Temperature | -20℃~65℃ (-4°F~149°F) |
Operating Humidity | 0–80% RH, Non-Condensing |
Srorage Temperature | -30℃~80℃ (-22°F~176°F） |
Storage Humidity | 0–90% RH, Non-Condensing |
