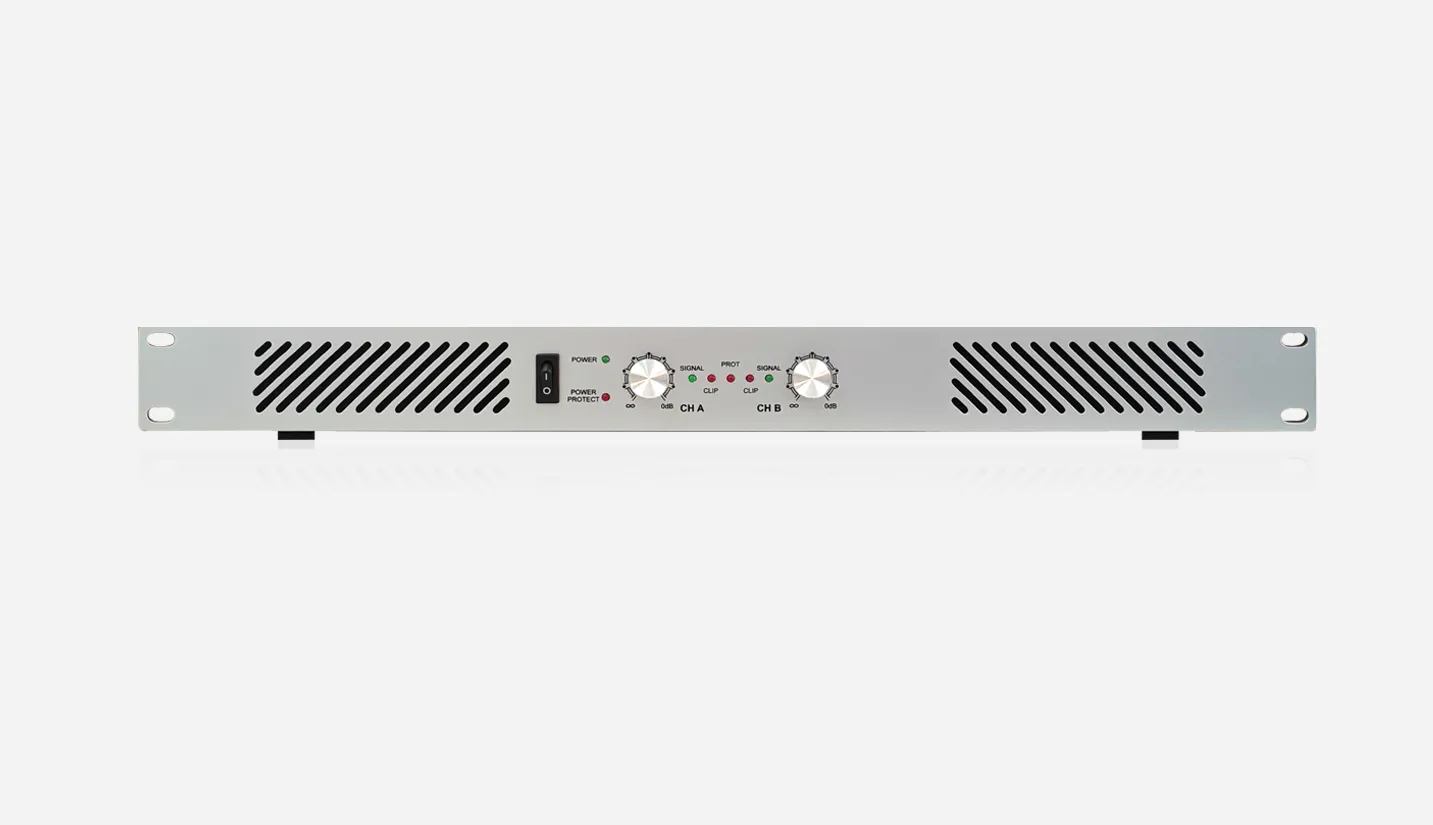

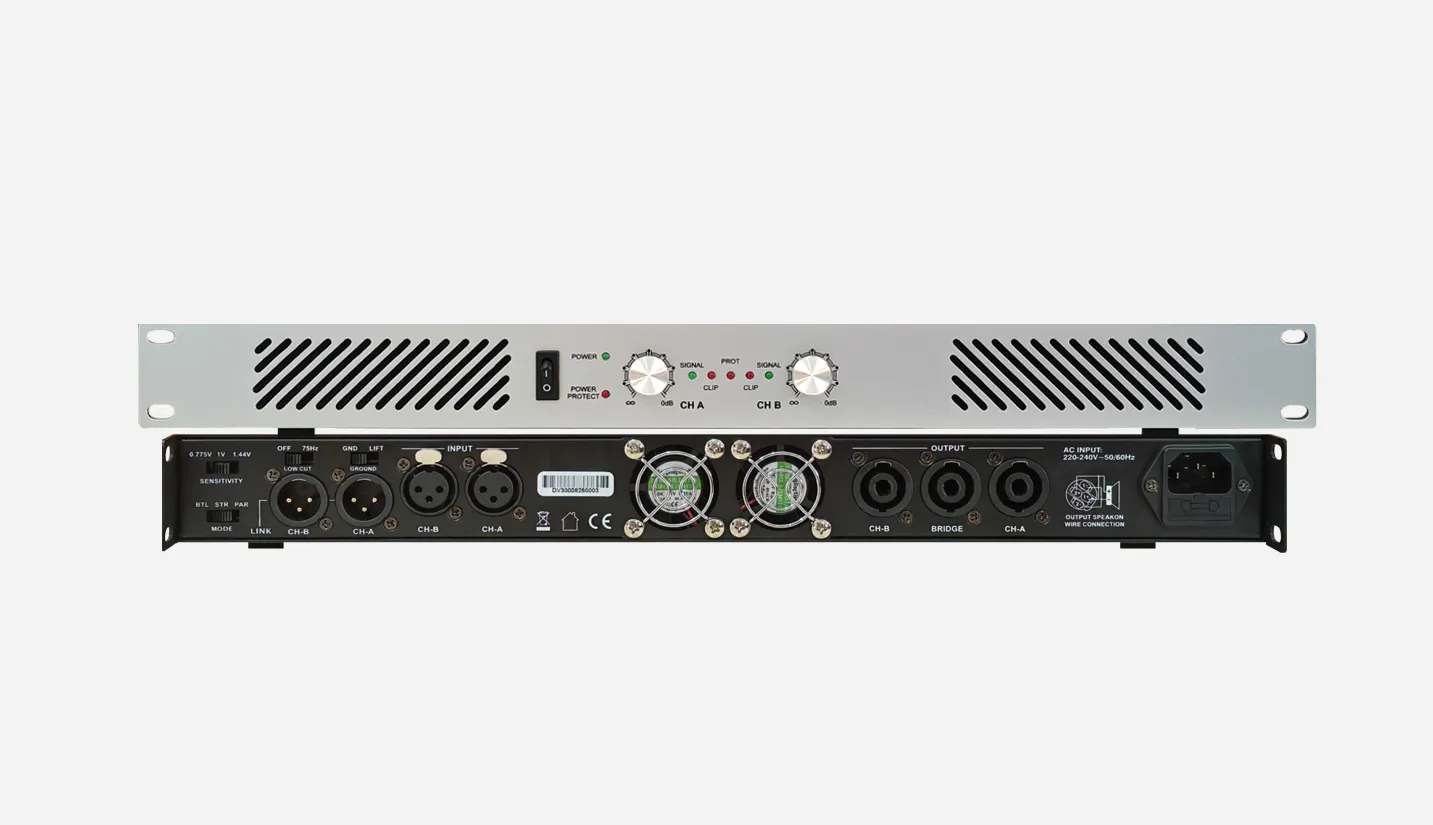

Dual-channel stereo professional power amplifier.
Brand-new appearance design with an extremely compact 19-inch chassis, only 1U high (44 mm), suitable for standard rack installation.
A range of small and medium-power amplifier options to meet different requirements.
Adjustable input sensitivity: 0.775 V, 1 V, 1.44 V.
Three selectable output modes: dual-channel, mono, and BTL bridge, with an output mode switch.
Independent volume control for each channel.
Minimum load impedance: 4Ω in stereo mode, 8Ω in BTL mode.

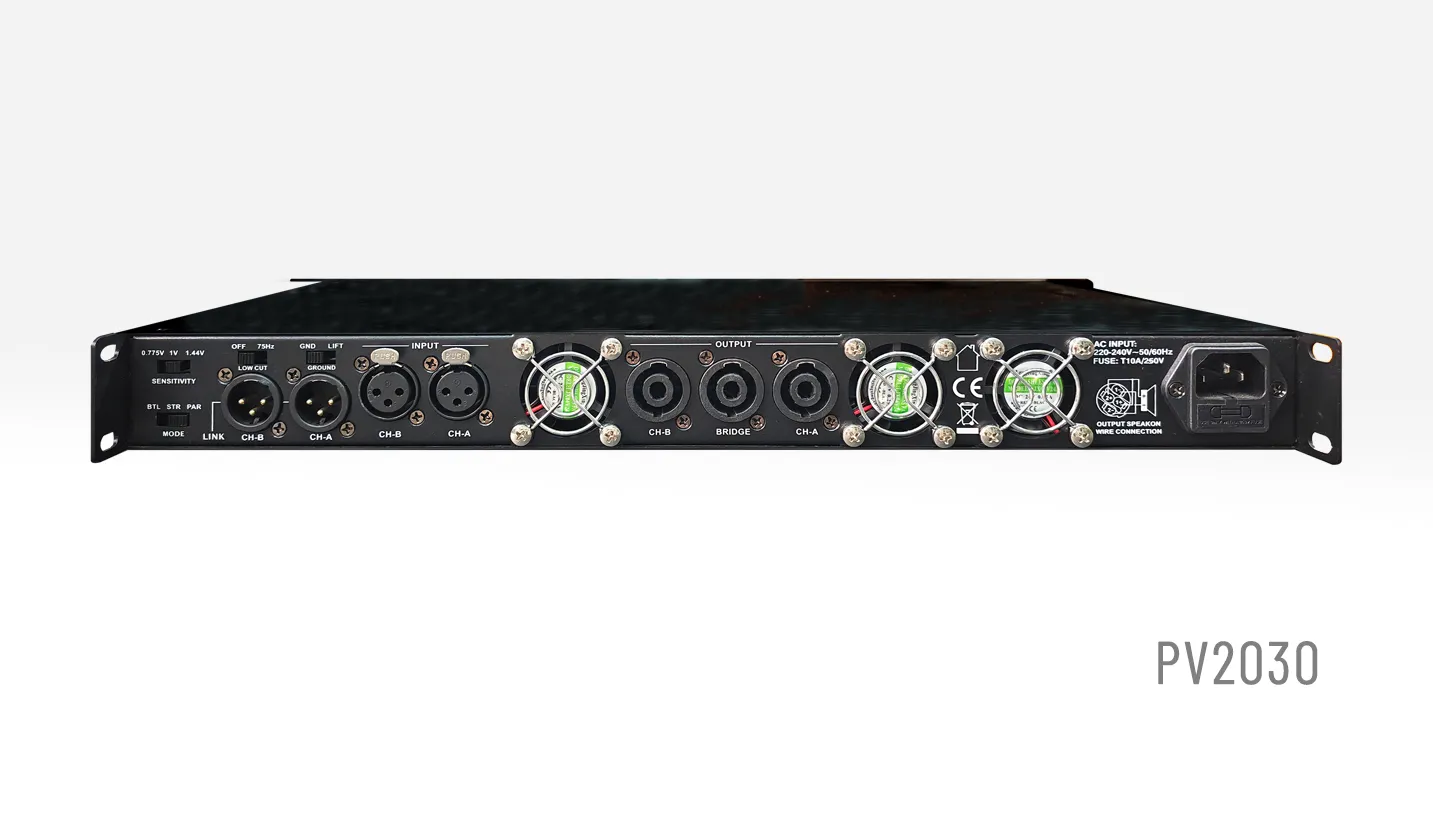

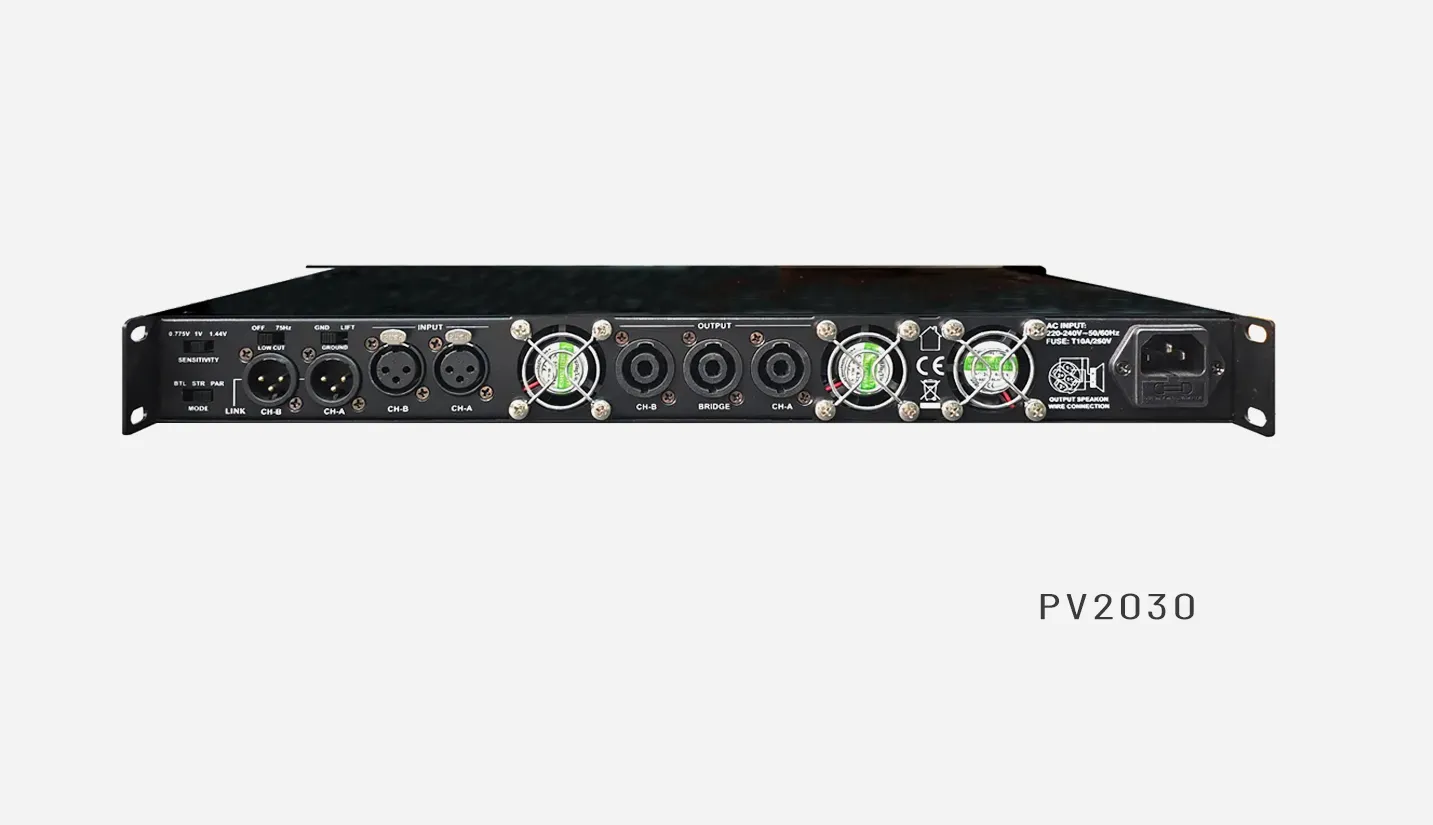

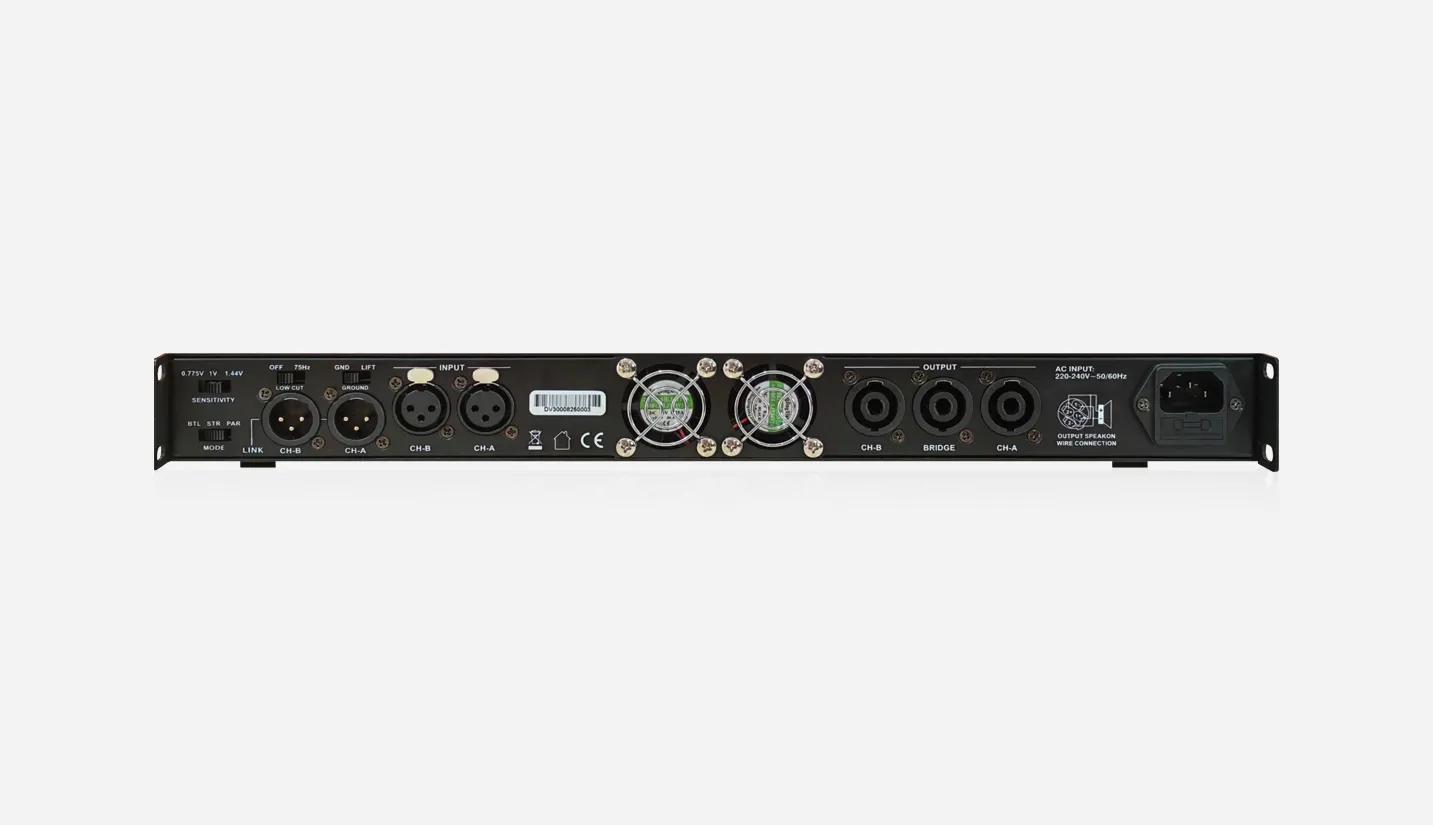

Equipped with XLR signal input interfaces for flexible and convenient use.
Three commonly used professional SPEAKON speaker connectors for amplifier output.
Protection and alarm functions including short-circuit protection, DC protection, and power on/off protection.
LED indicators for each channel showing operating status, designed for low noise.
Suitable for speech transmission and sound reinforcement in various applications.

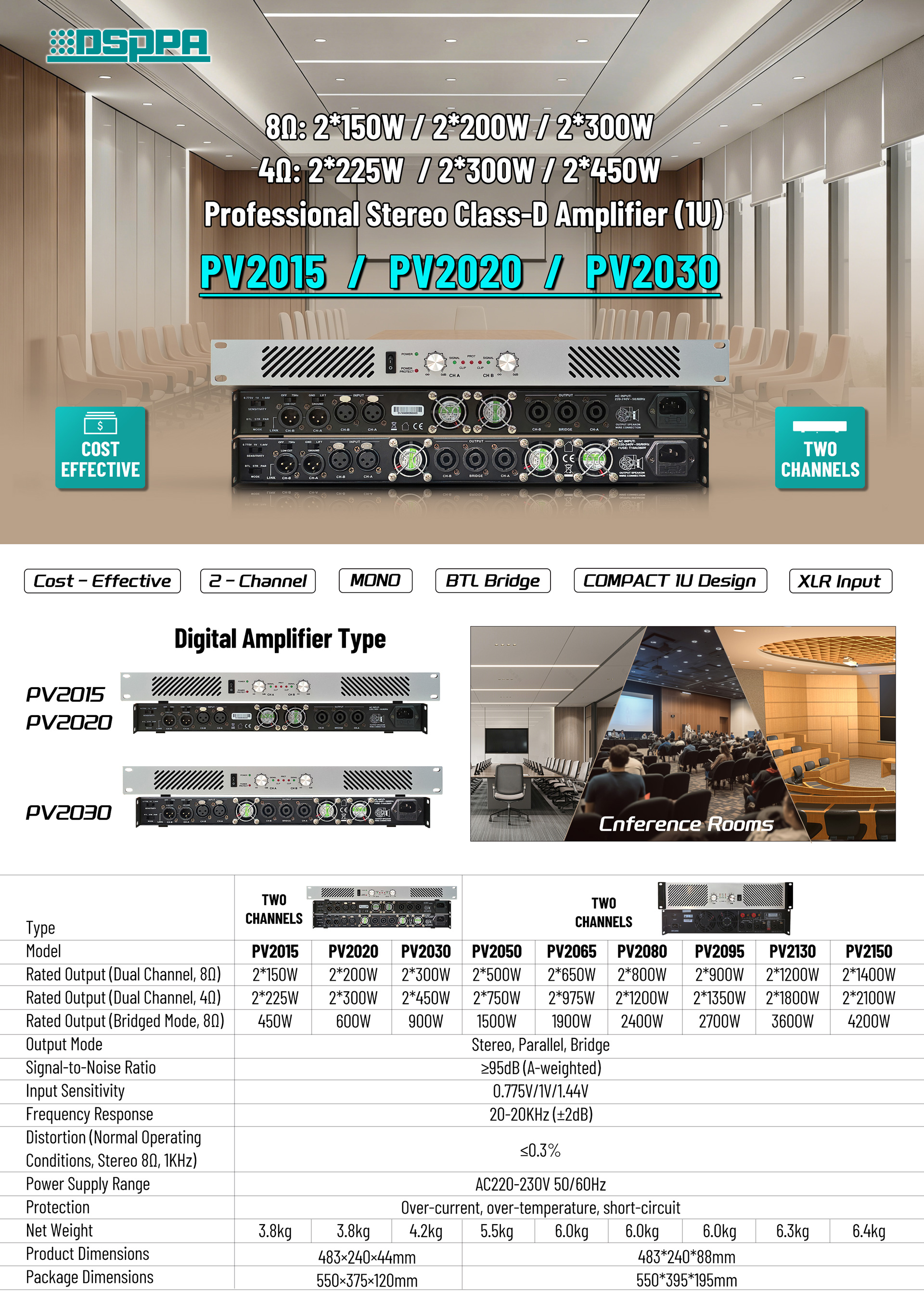

The PV2015/PV2020/PV2030 series is a 1U dual-channel digital power amplifier range engineered to provide flexible power options for small to medium-scale sound reinforcement. With a compact chassis and multiple operating modes including stereo, parallel, and bridge, the series adapts easily to different system configurations. It offers adjustable input sensitivity and robust connectivity through XLR and SPEAKON interfaces, ensuring smooth integration with professional audio setups. Enhanced by reliable protection circuitry and independent channel control, the series delivers clear, stable performance for speech and general sound applications.
Model | PV2015 | PV2020 | PV2030 |
Rated Output (Dual Channel, 8Ω) | 2*150W | 2*200W | 2*300W |
Rated Output (Dual Channel, 4Ω) | 2*225W | 2*300W | 2*450W |
Rated Output (Bridged Mode, 8Ω) | 450W | 600W | 900W |
Output Mode | Stereo, Parallel, Bridge | ||
Signal-to-Noise Ratio | ≥95dB (A-weighted) | ||
Input Sensitivity | 0.775V/1V/1.44V | ||
Frequency Response | 20-20KHz (±2dB) | ||
Distortion (Normal Operating Conditions, Stereo 8Ω, 1KHz) | ≤0.3% | ||
Power Supply Range | AC220-230V 50/60Hz | ||
Protection | Over-current, over-temperature, short-circuit | ||
Net Weight | 3.8kg | 3.8kg | 4.2kg |
Product Dimensions | 483×240×44mm | ||
Package Dimensions | 550×375×120mm | ||
