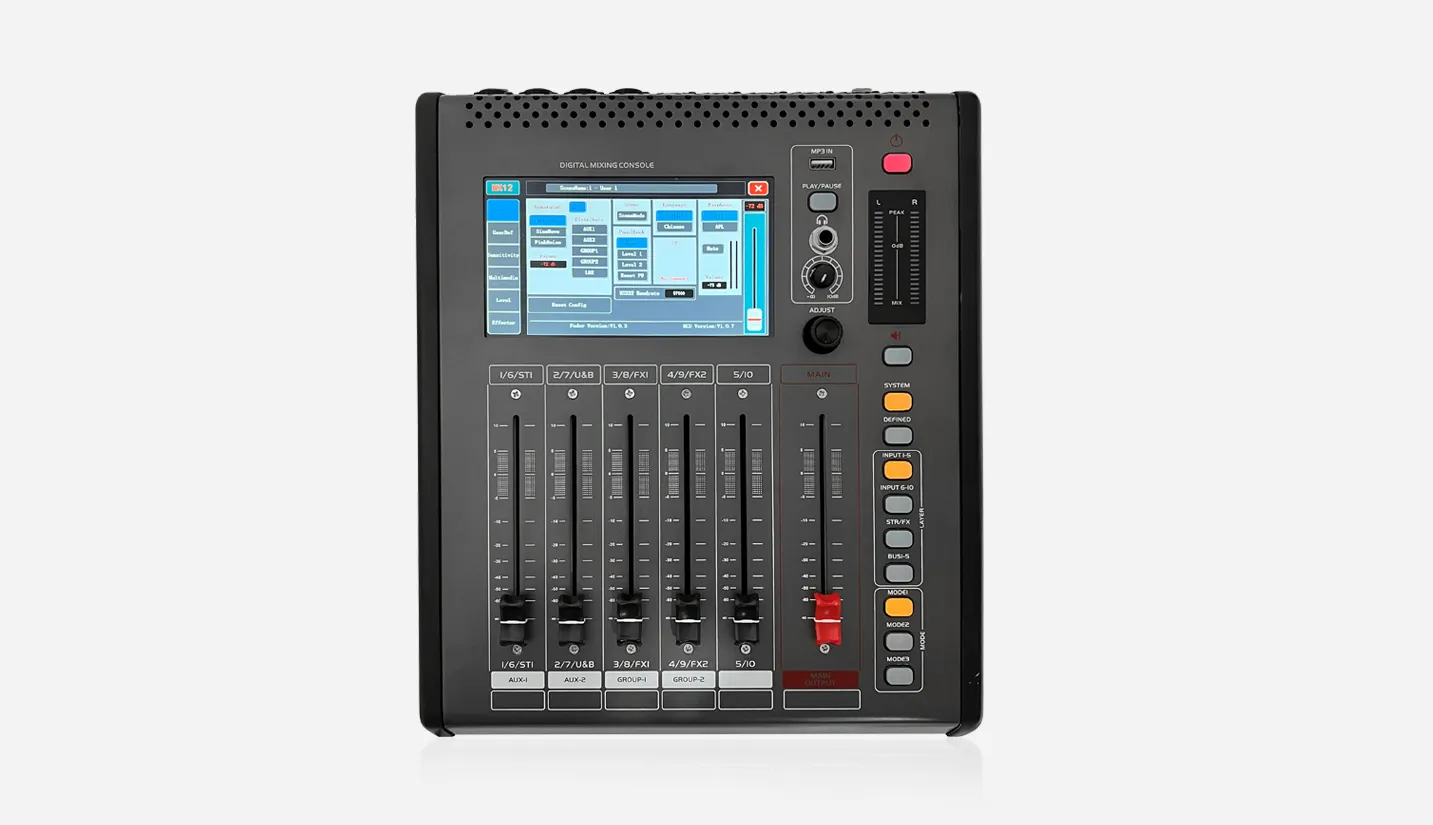

.webp "12-Channel Professional Digital Mixing Console")
10- channel MIC inputs and 2-channel Stereo input
1 stereo line channel
6 customizable XLR output ports
5 mixing bus (2 AUX bus, 2 GROUP bus, 1 MAIN bus)
2 FX buses (effect sending bus)
31-band GEQ
1 headset monitor output port
1 USB port, supporting USB music playback
7.1-inch 1024×600 touch screen
6 electric faders with 100mm stroke
3 shortcut mode loading keys
1 RS232 port, support central control
32 groups of scenes save and load
This is a multifunctional digital mixing console, with small size, light weightcomplete functions, intuitive and simple operation. Using the 4th-generation floating point SHARC processor, 24bits/48KHz AD/DA. It has built-in echo, reverb, mixing, delay, GEQ and more. This product is equipped with 7.1-inchHD touch screen and 6 100mm electric frequency fader. It is suitable for all kinds of small performances, conference places, schools, intelligent buildings, factories and personal use.
Model | CM1612 | |
Input | MIC / Line Input | 10 Mono Inputs (Balanced Input) + 1 Stereo Set |
Mic Input Connector | 10 XLR inputs, including 4 COMBO XLR inputs and 2 RCA inputs | |
Input Impedance | 3kΩ | |
Frequency Response | 20Hz-20kHz (+/-0.5dB) | |
Max. Input Level | +15dBu (Balanced) | |
THD | ＜0.01%@1K dBu | |
Phantom Power | +48V (CH-1 to CH-12) | |
S/N Ratio | -108dB A-Weighted | |
Phase | Normal / Reverse | |
Delay | 0 to 200ms | |
EQ | 4 Band Equalizer | Frequency Response: 20Hz-20kHz -20dB/+12dB |
Q=0.404 to 28.852 | ||
Low, LowMid, High Mid, High | ||
Mode: Bypass / Flat | ||
Compressor | Noise Gate | Threshold= -120dB to -20dB |
Compressor | Threshold=-12dB to 24dB | |
Attack: 3-100msec | ||
Release time: 2x, 4x, 6x, 8x, 16x, 32x | ||
The Compression Ratio: 1.0 to 128 | ||
XLR Outputs | Main Outputs (Balanced) | 6 Assignable Outputs XLR |
L/R +2 Mono Bus + 2 Stereo Bus | ||
THD | 0.005% (20Hz-20kHz)<0.01%@1K | |
Frequency Response | 20Hz-20kHz (+/- 0.5dB) | |
Max. Output Level | +15 dBu | |
Output Impedance | ＜100Ω | |
Headset | Headphones Output Connector | TRS Jack |
Headphones Output Impedance | ＜50Ω | |
Max. Output Level | +20dBu | |
Digital I/O | Digital I/O | Bluetooth Stereo Input, Standard V5.0 |
USB Stereo Input, Format: WMA/MP3/APE/FLAC | ||
General | Crosstalk | -80dB |
AD/DA Converter | Up to 24 Bit/192kHz | |
DSP | 40-bit Floating Point Processor | |
FX Modules | 1×Reverb, 2×Echo, 1×31GEQ | |
Screen Resolution | 7.1” Touchscreen, 1024×768 | |
Faders | 100mm, 6 Faders Full-motorized | |
Hardware | Power Supply | 24V DC (AC90-240V 50/60Hz) |
Power Consumption | 50W | |
Dimension | (D×W×H) 372×299×94mm | |
Weight | Net Weight: 3.4kg , Gross Weight: 5.2kg | |
Included Accessories | Standard Configuration: Adapter ×1, Power Cord ×1 | |
Optional: Rack Mounting Accessory ×2 | ||
