1U rack-mount chassis, lightweight and rack-mountable
Built-in audio source, supporting USB, Bluetooth, FM radio and AUX playback (with 3.5mm jack for external media players)
3 balanced/unbalanced XLR MIC/LINE inputs + 2 stereo RCA AUX inputs, with independent volume control for each input

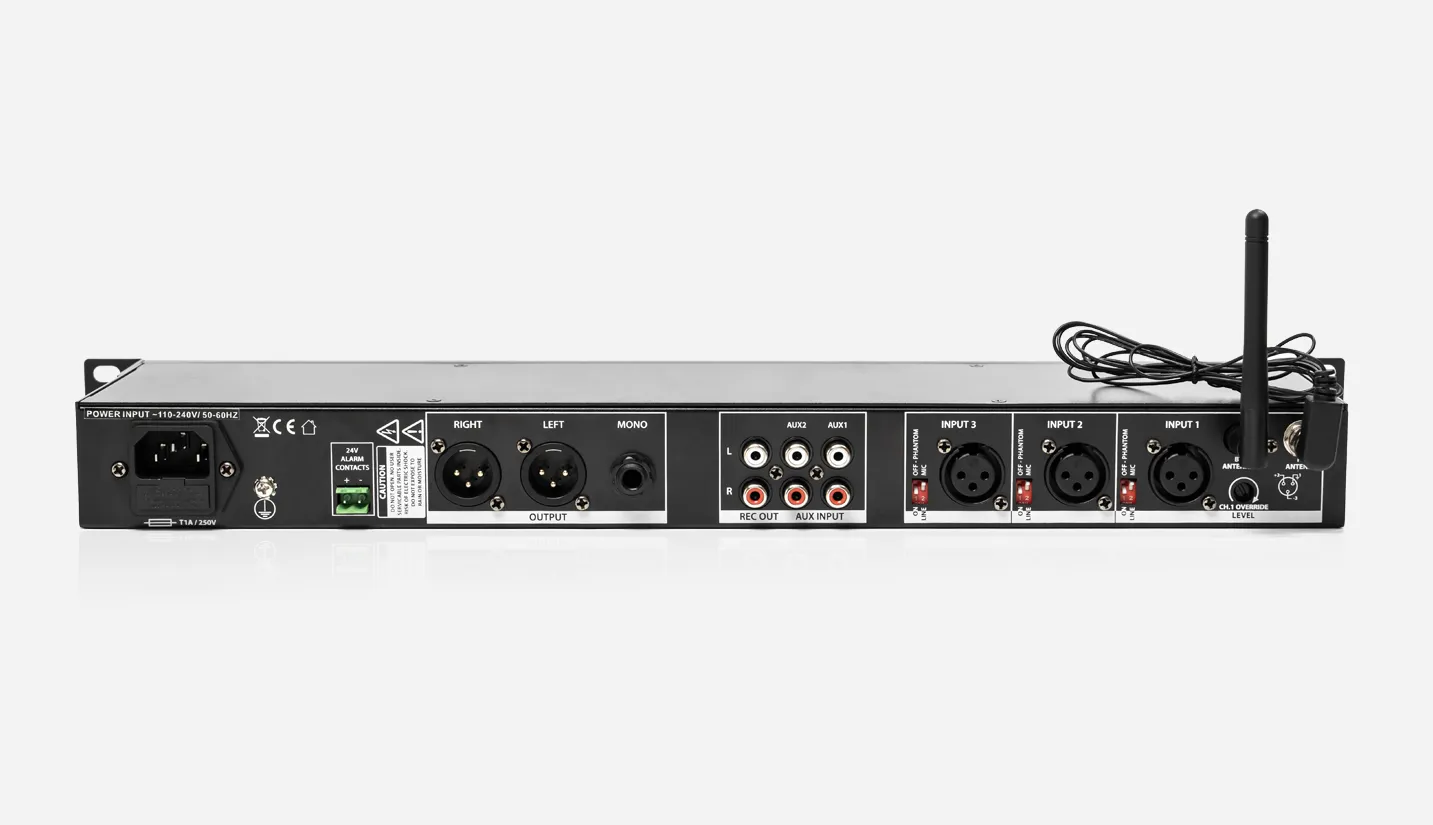

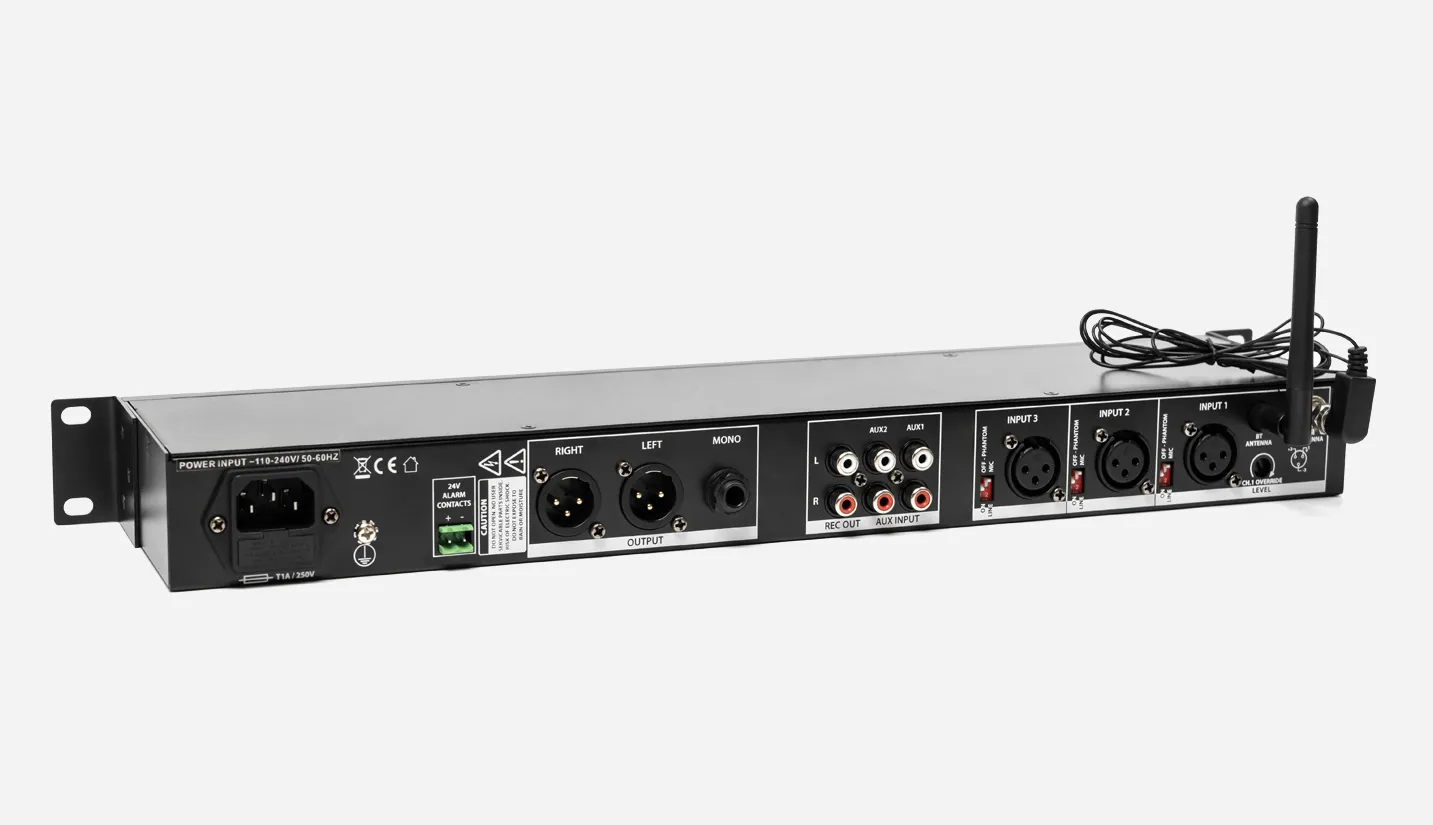

1 set of L+R XLR stereo outputs + 1 mono 6.3mm jack mixed outputs + 1 set of RCA record outputs
MIC1 (Channel 1) with adjustable priority function
Supports external 24V contacts mute control (mutes all except Channel 1)
Channels 1-3 support +20V switchable phantom power

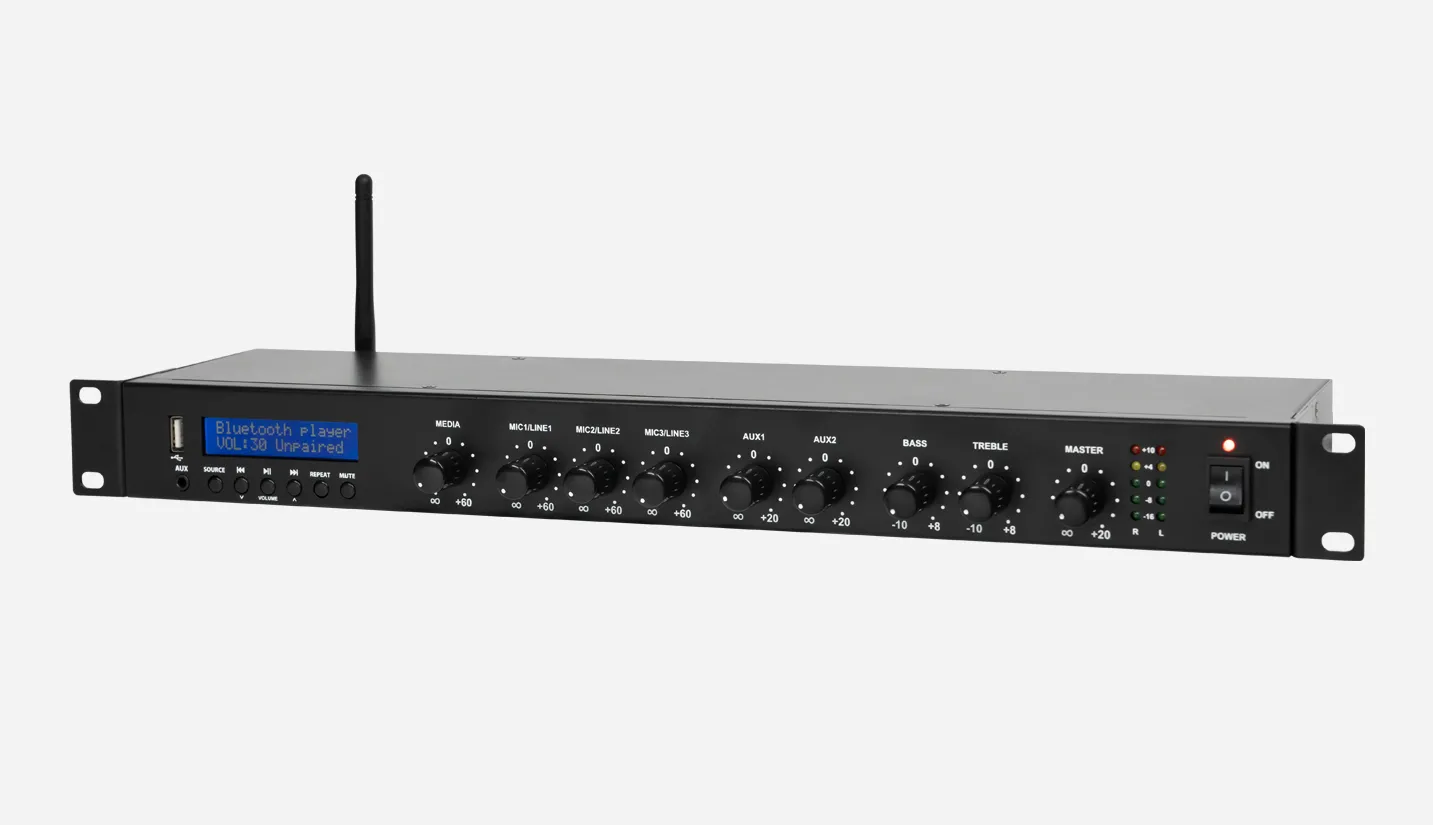

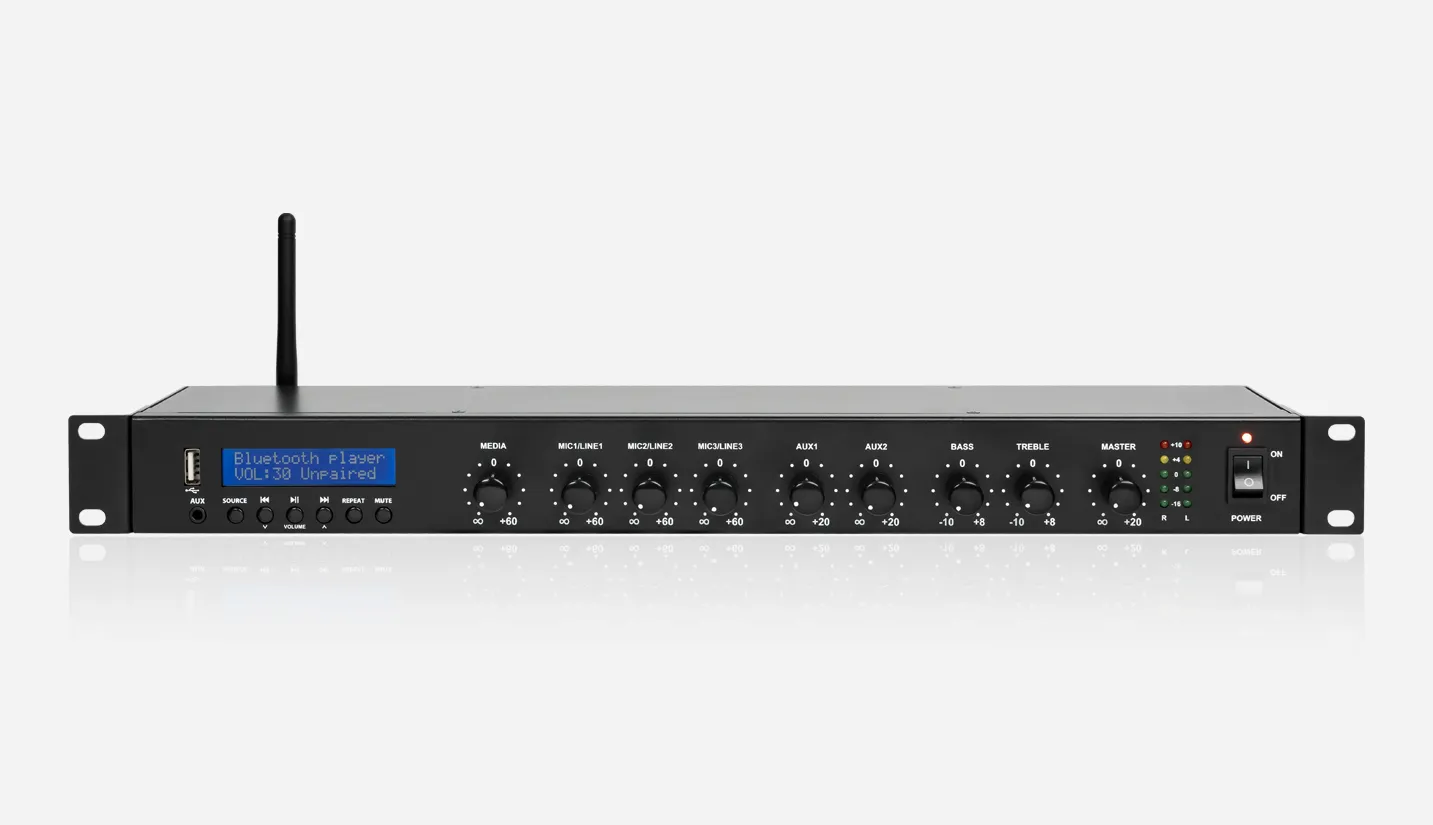

MP3320 is a lightweight 1U rack-mount audio mixer, ideal for neat equipment layouts. It features built-in audio sources (supporting USB, Bluetooth playback, FM radio and AUX) plus a 3.5mm jack for external media players, meeting diverse audio input needs. It is equipped with 3 balanced/unbalanced XLR MIC/LINE inputs and 2 stereo RCA AUX inputs—each with independent volume control. For output flexibility, it offers 1 set of L+R XLR stereo outputs, 1 mono 6.3mm jack mixed output and 1 set of RCA record outputs. Additional key functions include adjustable priority for MIC1 (Channel 1), external 24V contacts mute control (mutes all except Channel 1), and +20V switchable phantom power for Channels 1-3, delivering flexible, reliable support for professional audio processing.
Model | MP3320 | |
Inputs | 3 x XLR (Balanced/Unbalanced) Mic/Line, 2 x Aux L+R RCA, 3.5mm Jack to Media Player | |
Audio Source | Internal Bluetooth, USB, FM&AUX Player | |
Outputs | L+R XLR, Mono 6.3mm Jack, Record Out (RCA) | |
Emergency Control | 24V Contacts Mute All Except Channel 1 | |
Phantom Power | +20V (Switchable Channels 1-3) | |
Input Impedance | 2.2k Ohms(Mic/Line),10k Ohms(Aux) | |
Controls | Media,3 xMic/Line,2 xAux,Treble,Bass, Master Level | |
Rear Panel Control | Priority Muting Level, Mic/Line and Phantom DIP Switches | |
Frequency Response | Mic | 20Hz-18kHz |
Line | 14Hz-20kHz | |
Aux | 10Hz-23kHz | |
Input Sensitivity | Mic | -45dBV |
Aux/Line | -10dBV | |
SNR | Mic | 55dB |
Aux/Line | 60dB | |
THD | 0.05% | |
Power Supply | AC110V, 60Hz | |
Fuse | T1AL | |
Dimensions | 482×130×44mm | |
Weight | 1.43kg | |
This site is protected by DSPPA audiovisual and also applied to web browsers' Privacy Policy and Terms of Use.

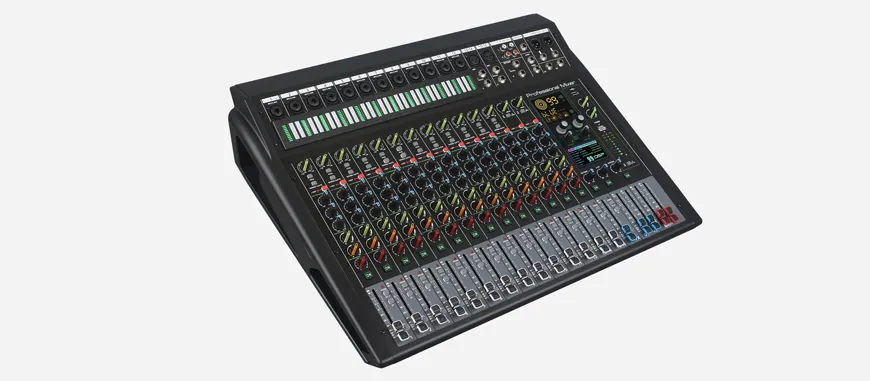

.webp "16-Channel Analog Mixing Console")
