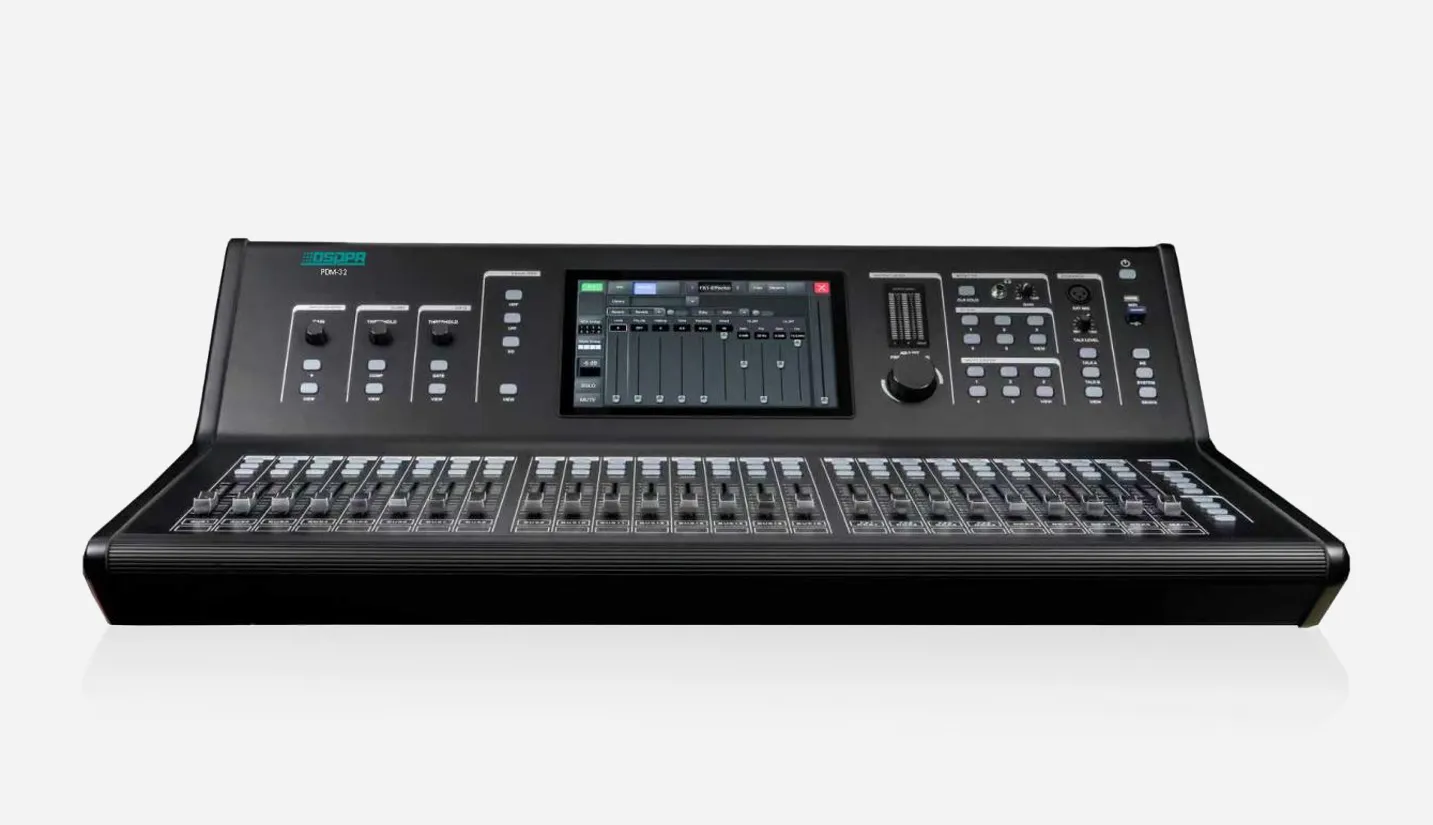

32-Channel Digital Mixing Console PDM-32

10.1-inch capacitive touchscreen with a resolution of 1280×800.
36 signal inputs in total, including 32 XLR analog input channels with microphone preamplifiers (8 COMBO connectors), 1 stereo USB playback input, and 2 digital expansion inputs.
32 XLR input channels support: 2 GEQ insert modules, 48V phantom power on/off, phase reverse, digital gain, 0–500 ms delay, pan and level control, user-definable channel name and color, 5-band parametric EQ (parametric / high-shelf / low-shelf selectable), high-pass filter, low-pass filter, noise gate, sidechain mute, and sidechain compression.
24 signal outputs in total, including 16 XLR analog outputs, 1 stereo USB recording output, 2 XLR monitor outputs, 1 stereo TRS headphone monitoring output, and 2 digital expansion outputs.
16 XLR output channels support: 4 GEQ insert modules, 0–500 ms delay, pan and level control, user-definable channel name and color, 9-band parametric EQ (parametric / high-shelf / low-shelf selectable), high-pass and low-pass filters.
25 motorized faders with 100 mm throw.
21 mix buses in total, including 16 mono buses, 4 effects buses, and 1 stereo main output bus.
Built-in 4 effects buses, offering 8 effects types: reverb, echo, chorus, wah, tremolo, distortion, pitch shift, and flanger, freely configurable for flexible application.
Six 31-band GEQ modules in total, including two 31-band GEQ modules for inputs and four 31-band GEQ modules for outputs.
One talkback input with talkback function, controlled via two dedicated control buttons.
8 DCA groups and 5 mute groups.
100 scene memories, including 4 quick-access scene recall buttons.
Stores up to 100 effect presets and includes factory presets.
Expansion slot supports optional modules, including Bluetooth, Dante 2×2, AES, and stereo sound card expansion cards.
Supports connection to 2 stage boxes.
USB stereo playback and recording supported.
Wireless network control, compatible with iOS, Android, and PC platforms.
Equipped with a serial control interface for third-party intelligent control, with 3 selectable baud rates.
12V desk lamp power interface with adjustable brightness for lighting purposes.
It supports switching between Chinese and English languages, and the APP can adapt to the system language.
Two-level panel lock to prevent accidental operation.

Datasheet

Get Quotation

DETAILS

SPECS

This product is a powerful, professional performance-grade digital mixing console distinguished by its unique design, intuitive operation, fast response, and robust signal-processing capability. It features 32 input channels with built-in microphone preamplifiers and 21 mix buses, delivering high-efficiency audio performance. The console operates at a 48 kHz sampling rate and is equipped with high-resolution 192 kHz ADC and DAC converters, ensuring precise and high-fidelity sound reproduction.

Specifications of 32-Channel Digital Mixing Console PDM-32

Model		PDM-32
Channel Processing	Input Processing Channel	32-channel microphone or line inputs, 1 stereo USB playback, 1 talkback microphone input, and 2 expandable digital inputs.
	Output Processing Channel	16 AUX, 1 stereo MAIN bus, 1 stereo monitor, 1 stereo USB recording, 2 expandable digital outputs.
	Internal Effects	4 ×effectors, mono effects, FX1 and FX2 with echo and reverb, FX3 and FX4 with chorus, wah, tremolo, distortion, pitch shift, and flanger
	GEQ Modules	6 × 31-band GEQ modules, including 2 GEQ modules for input channels; 4 GEQ modules for output channels
	Noise Gate	Threshold: -100dB to -20dB, with noise gate and side chain mute modes
	Compressor	Threshold: -48dB to +12dB Attack time: 3ms to 100ms Release time: 2x, 4x, 6x, 8x, 16x, 32x (release time is a coefficient multiplied by the attack time) Compression ratio: 1.0 to 127, ∞ Soft knee: 0 to 20dB
	Equalizer	Input: 5 bands, output: 9 bands Frequency :20Hz to 20kHz (-20dB/+12dB) Q value :0.404 to 28.852 Types: Parametric, high shelf, low shelf
	High-Pass / Low-Pass Filters (HPF / LPF)	High-pass: 20Hz to 400Hz (6/12/24/36/48dB slope) Low-pass: 120Hz to 20KHz (6/12/24/36/48dB slope)
	Delay	0 ~ 500ms
	Phase	Standard / Inverted
	Scene Files	Up to 100 scenes can be saved
	Effect Library Files	Up to 100 scenes can be saved
	Signal Processing Capability	40-bit floating-point processing, 48kHz sample rate
	A/D Converter	32-bit, 192kHz, 115dB dynamic rang
	D/A Converter	24-bit, 192kHz, 127dB dynamic range
Connector	Microphone / Line Input XLR Interface	32, including 8 combo jacks, balanced input
	Talkback Input XLR Interface	1
	XLR Output Interface	16
	Minitor Output XLR Interface	2 Stereo
	Headphone Output TRS Interface	1 Stereo
	Expansion Interface	Supports DANTE 2×2, Bluetooth, AES, USB stereo sound card and HMLINK expansion card.
	USB Interface	2, for connecting USB flash drives for stereo recording / playback, connecting WiFi module for wireless control
	Lamp XLR Interface	DC 12V output, switch and brightness can be configured
	Serial Port	RS232 DB9 serial port, configurable baud rate
IN 1-32 Input	Input Impedance	Unbalanced 5kΩ, balanced 10kΩ
	Frequency Response	20Hz to 20kHz (+/-0.5dB)
	Max. Input Level	22dBu
	Phantom Power	+48V (IN1 to IN32)
	Gain	-12dB to 60dB
	SNR	115dB (gain = 0dB, A-weighted)
	Dynamic Range	116dB (gain = 0dB, A-weighted)
	Equivalent Input Noise	-110dBu (gain = 40dB, output = +4dB)
OUT 1-16 Outputs	Total Harmonic Distortion	0.004% (gain = 0dB, output = 0dBu, unweighted) 0.01% (gain = 40dB, output = +20dBu, unweighted)
	Frequency Response	20Hz to 20kHz (+/-0.5dB)
	Max. Output Level	+22dBu
	Output Impedance	＜100Ω
	Channel Crosstalk	-113dB@1kHz
	Noise Floor	-89dBu (gain = 0dB)
Monitor and Headphone	Output Impedance	＜50Ω
	Max. Output Level	+20dBu
	Noise Floor	-81dB (potentiometer = MAX, volume = 0dB)
Talkback Microphone	Input Impedance	Unbalanced 3kΩ, balanced 6kΩ
	Max. Input Level	+6.5dBu (potentiometer = MAX, intercom volume = MAX)
Digital I/O	Digital I/O	Bluetooth, AES/EBU, DANTE 2×2, stereo sound card
		USB stereo playback and recording, supports MP3, wav, and flac file playback
	USB Format	3.0
	Recording Format	Wav
General Settings	Maximum Gain	80dB from analog input to output
	Channel Separation	-110dB
	Display Screen	10.1 "touch screen 1280×800 resolution
	Motorized Faders	25×100 mm travel motorized faders
	System	Android Version
	Network	External WiFi module, supports iOS, Android, and PC control
Hardware	Power Supply	AC100V-240V 50/ 60Hz
	Power Consumption	50W
	Operating Temperature	5℃~40℃
	Dimensions (W × D × H)	836 × 527.28 × 225.72 mm
	Weight	18.4kg
