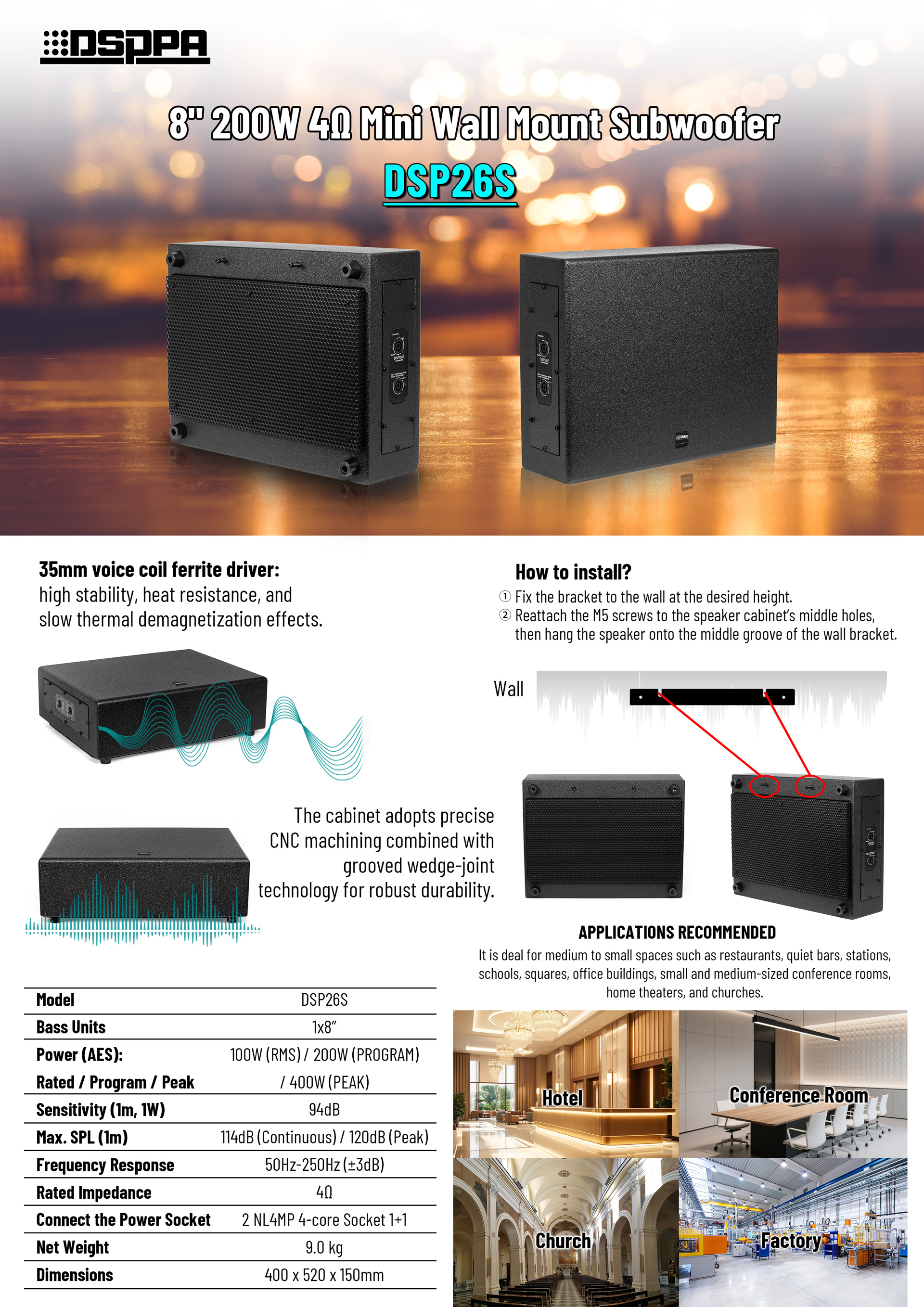

The woofer employs a 35mm voice coil ferrite driver.
The driver utilizes ferrite magnets with high stability, heat resistance, and slow thermal demagnetization effects.
The cabinet adopts precise CNC machining combined with grooved wedge-joint technology for robust durability.
Application scenarios: Homes, conference rooms, multi-function halls, quiet bars, shopping malls, and public spaces.
The product driver employs ferrite magnets with high stability, excellent high-temperature resistance, and slow thermal demagnetization effects. The enclosure adopts precise CNC machining combined with groove-wedge jointing technology for robust durability. It is suitable for various applications: conference rooms, multifunction halls, bars, shopping malls, and public areas.
Model | DSP26S |
Bass Units | 1x8” |
Power (AES): Rated / Program / Peak | 100W (RMS) / 200W (PROGRAM) / 400W (PEAK) |
Sensitivity (1m, 1W) | 94dB |
Max. SPL (1m) | 114dB (Continuous) / 120dB (Peak) |
Frequency Response | 50Hz-250Hz (±3dB) |
Rated Impedance | 4Ω |
Connect the Power Socket | 2 NL4MP 4-core Socket 1+1 |
Net Weight | 9.0 kg |
Dimensions | 400 x 520 x 150mm |
