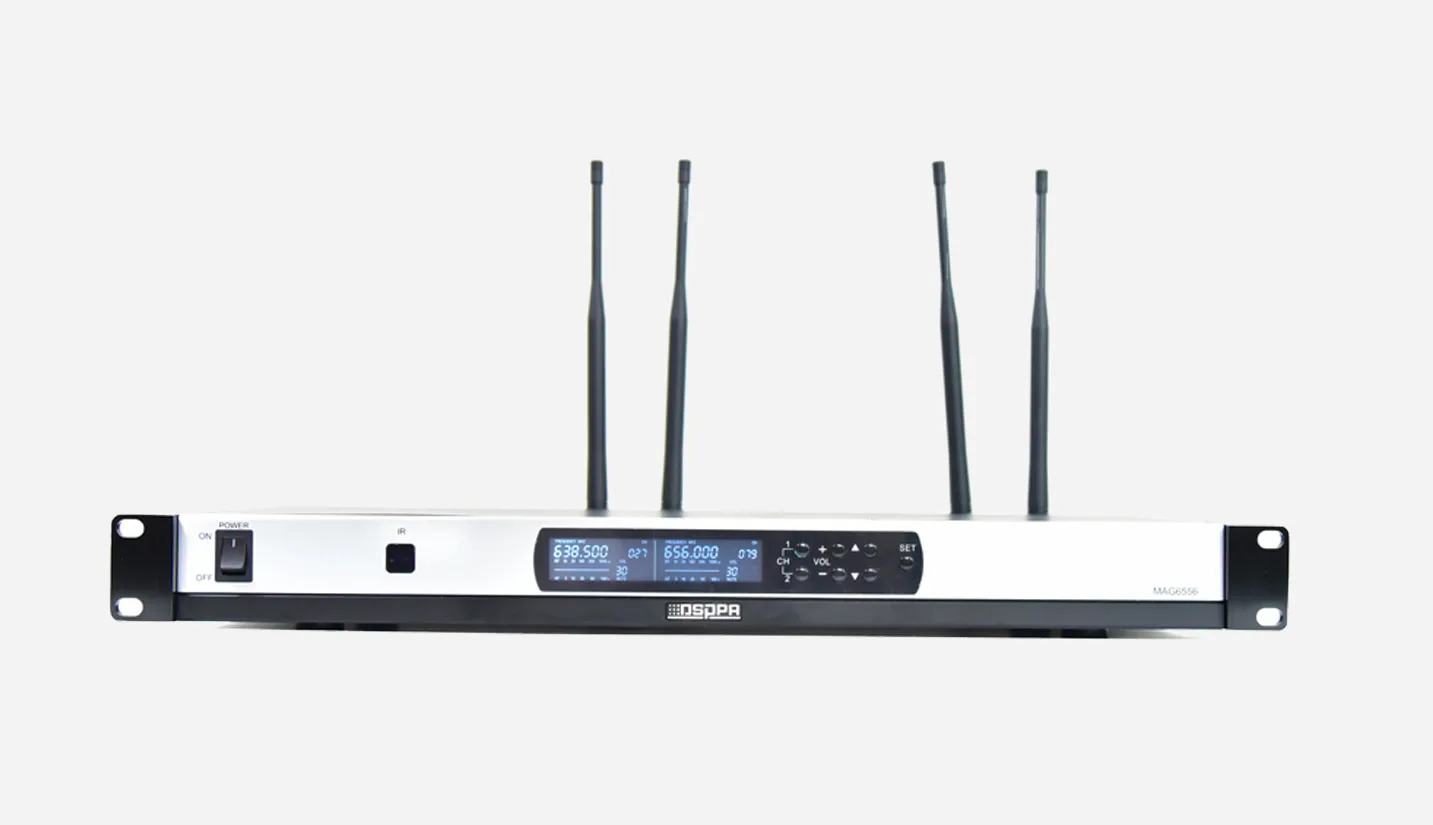

.webp "Digital Wide-Area Wireless Microphone Receiver")
UHF dual true-diversity reception technology for effectively preventing signal dropouts and extending the reception range.
DPLL (Digital Phase-Locked Loop) multi-channel frequency synthesis technology.
Infrared frequency matching for quick and convenient synchronization between the transmitter and receiver.
Display screen for showing information such as frequency, channel, squelch, and audio level.
Balanced and unbalanced output ports to accommodate different connection requirements.
AF output via XLR connectors for separate or mixed outputs.
Zero-latency AES67 module for real-time transmission to the host system.
This wireless microphone receiver is a wireless signal receiver with a built-in zero-latency module. It employs UHF dual true-diversity reception technology to effectively prevent signal dropouts and extend the reception range. Infrared frequency matching allows for quick and convenient synchronization between the transmitter and receiver. Advanced digital signal processing provides noise reduction, ensuring clear audio quality, making it suitable for a wide range of applications.
Model | MAG6556 | |
Frequency Range | 632-661.25MHz | |
Number of Channels | 100 | |
Frequency Step | 250KHz | |
Frequency Stability | Within ±0.005% | |
Dynamic Range | 88dB | |
Maximum Frequency Deviation | ±48KHz | |
Frequency Response | 125Hz-15KHz (±3dB) | |
Overall S/N Ratio | >70dB | |
THD | ≤1% | |
Operating Temperature | -10 °C~+40 °C | |
Effective Operating Range | 150-300m (in open environment) | |
Receiver | Wireless Interface | BNC/50Ω |
Sensitivity | -100dBm | |
Display | LCD screen | |
Operating Voltage | DC12V | |
Package Dimensions (L×W×H) | 525×278×90mm | |
Product Dimensions | 483×178×44mm | |
Gross Weight | 3.9kg | |
Net Weight | 2.26kg | |
