Professional Sound Reinforcement Solutions for Small, Medium, and Large Venues

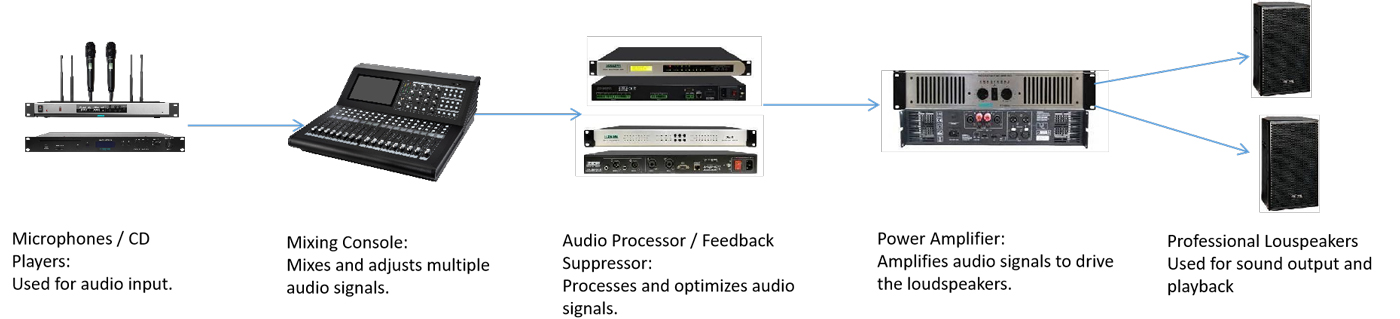

 II. Main Components of a Professional Sound Reinforcement System

A professional sound reinforcement system mainly consists of sound source equipment (such as microphones), mixing consoles, audio processors, feedback suppressors, professional power amplifiers, and loudspeakers.

 III. Scenarios Solution

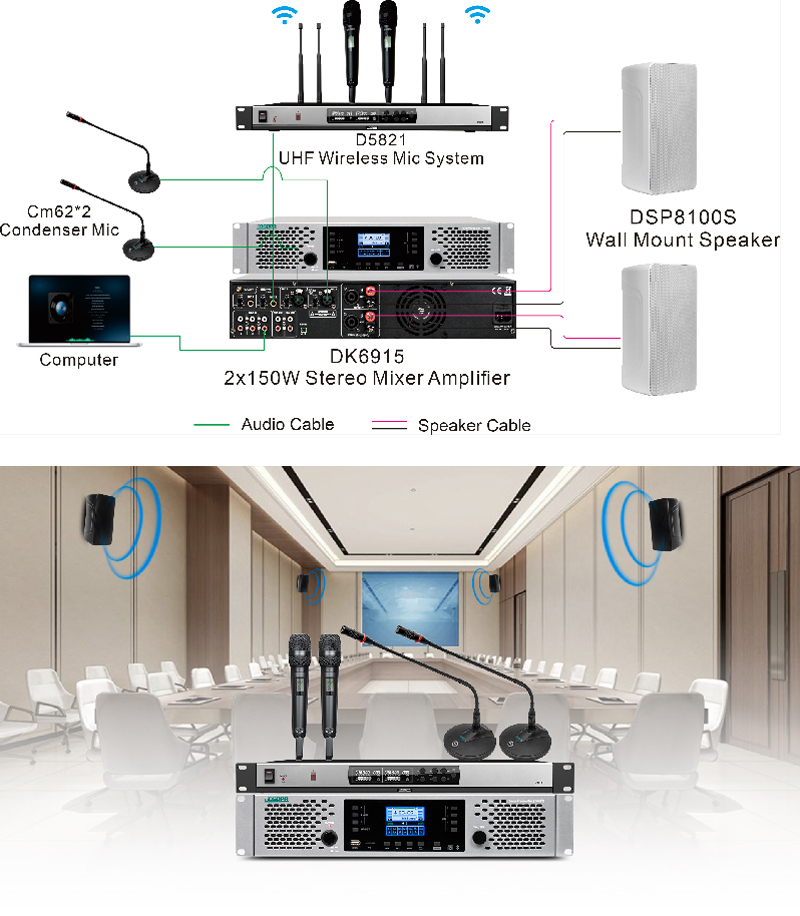

 50㎡ Small Conference Room Solution

• Simple operation, cost-effective design, and excellent sound reinforcement performance.

• Voice Priority Function: Automatically attenuates background music to ensure clear speech.

• Minimal Configuration: One mixer amplifier and two wall-mounted speakers provide near-field sound reinforcement with uniform sound coverage.

• Quick Installation: Minimal wiring and simple setup greatly reduce installation time.

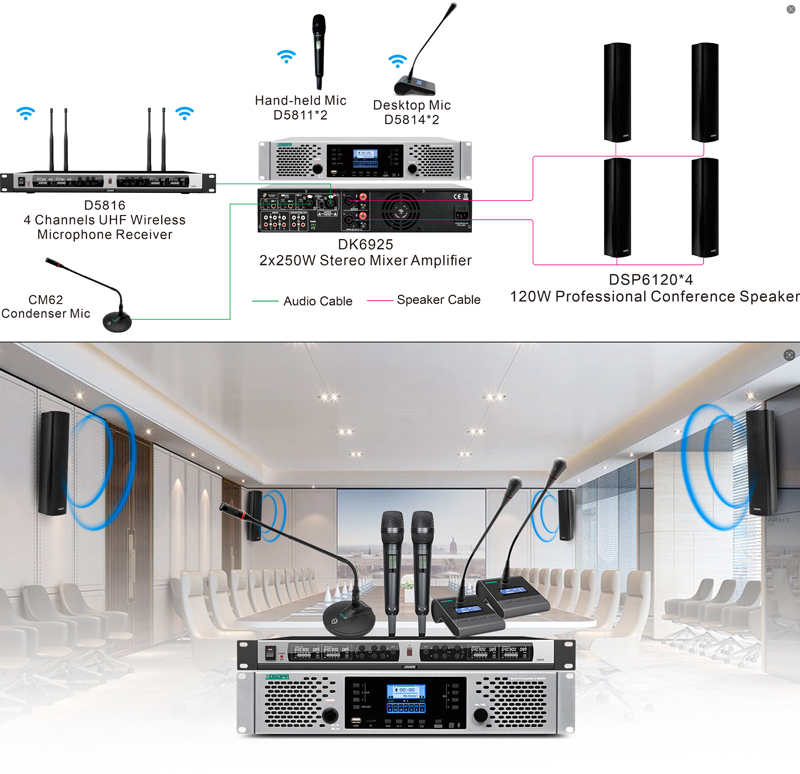

 100㎡ Medium Conference Room Solution

High-Fidelity Sound, Professional Choice

• Built-in 7-Band EQ Processing: Accurately restores sound details and optimizes audio quality.

• Conference Column Speakers: Professional appearance with uniform sound dispersion

• Supports Multiple Speakers: Four-channel wireless microphones to meet discussion requirements.

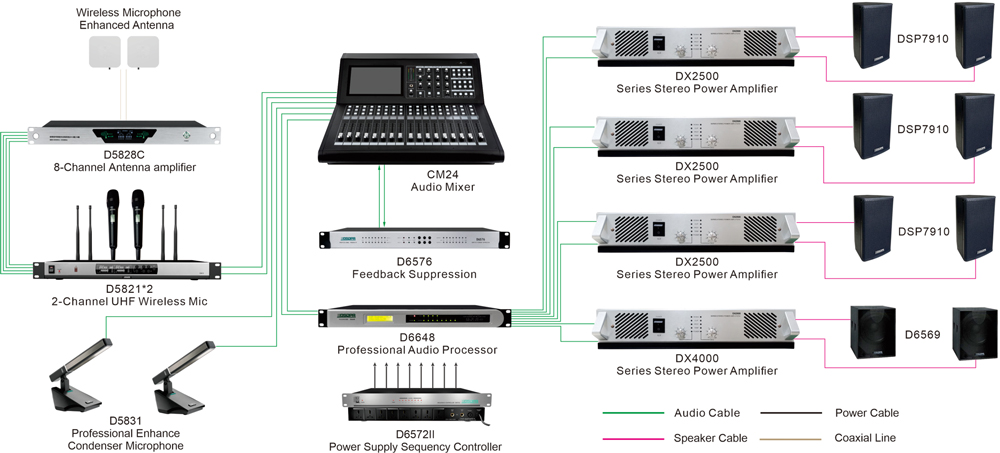

 200㎡ Multi-Functional Hall Solution

Modular Professional Design with High Expandability

 System Configuration Description

Features:

• Professional configuration with strong expandability.

• Equipped with a digital mixing console, audio processor, and feedback suppressor, the system delivers significantly enhanced audio quality and stability.

Core Configuration Features:

• True Diversity Wireless Microphones + Antenna Distribution: Enables interactive communication, presentations, or performances with reliable signal reception.

• CM24 Digital Mixing Console + D6648 Audio Processor + D6576 Feedback Suppressor: Together ensure clear, stable, and high-quality sound reinforcement.

• Main Speakers: 2 × 12-inch or 15-inch passive full-range speakers handle the primary sound output.

• Subwoofers: 2 × 18-inch passive subwoofers enhance low-frequency performance and overall sound impact.

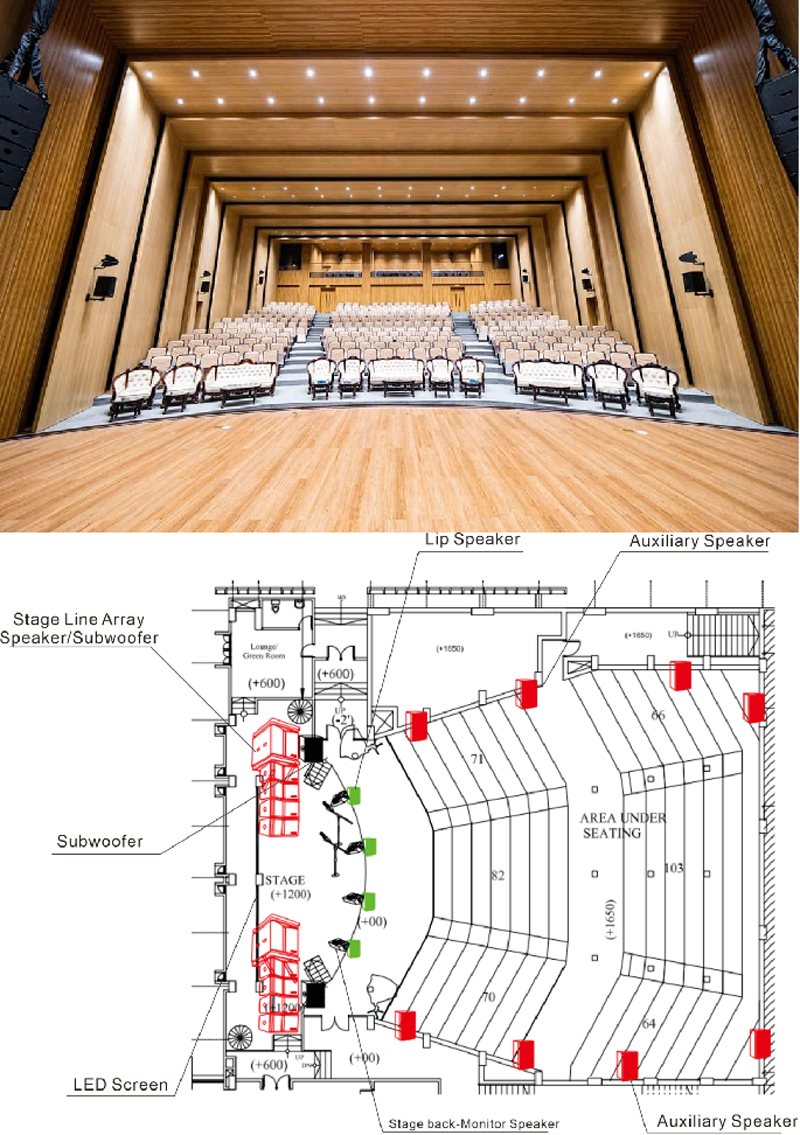

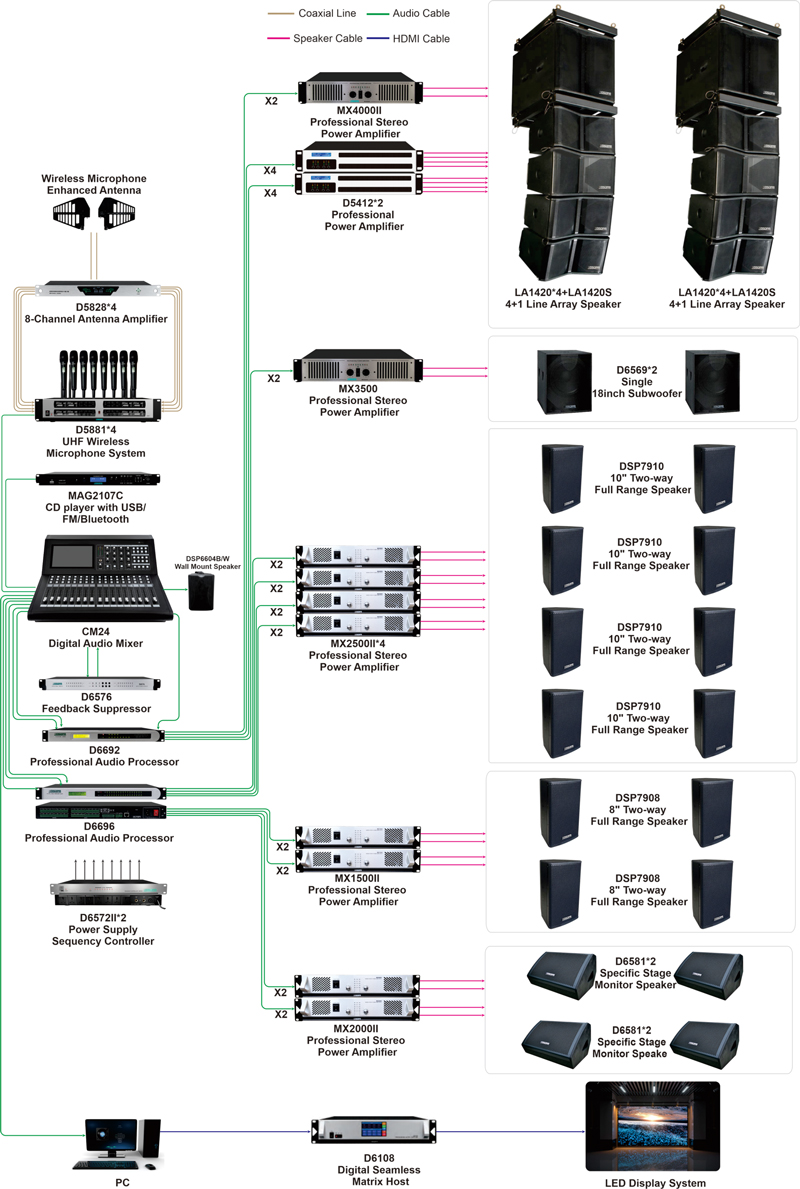

 700–800㎡ Auditorium Solution

 System Configuration Description

High Sound Pressure with Wide and Even Coverage

The line array speaker system delivers high sound pressure, long throw, and even coverage, while the multi-channel digital audio matrix with array subwoofer compensation ensures performance-grade dynamics and high-fidelity sound.

Pickup System: Utilizes true diversity wireless handheld microphones with an antenna amplification system to ensure clear speech from speakers and stable wireless signals, avoiding dropouts and interference.

Control System: Features a digital mixing console, digital audio matrix, and feedback suppressor to maintain clear, distortion-free sound without feedback, while providing various audio effects to enhance the overall audio experience.

Sound Reinforcement System: Employs dual 10-inch line array speakers delivering high sound pressure with adjustable vertical angles, paired with 18-inch subwoofers to enhance low-frequency response and ensure balanced mid-low frequencies. Additional stage monitors and front-fill speakers optimize stage and front-row sound, while 250W constant-resistance speakers maintain uniform sound pressure, achieving a balance between aesthetics and acoustic performance.

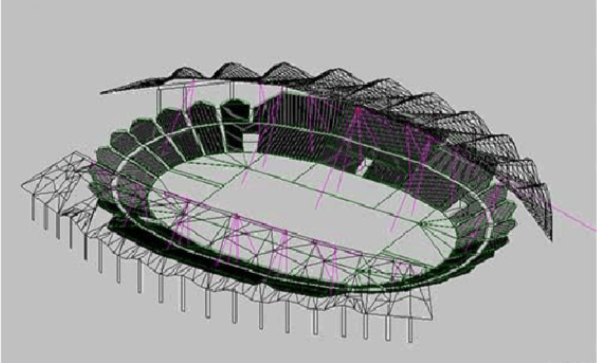

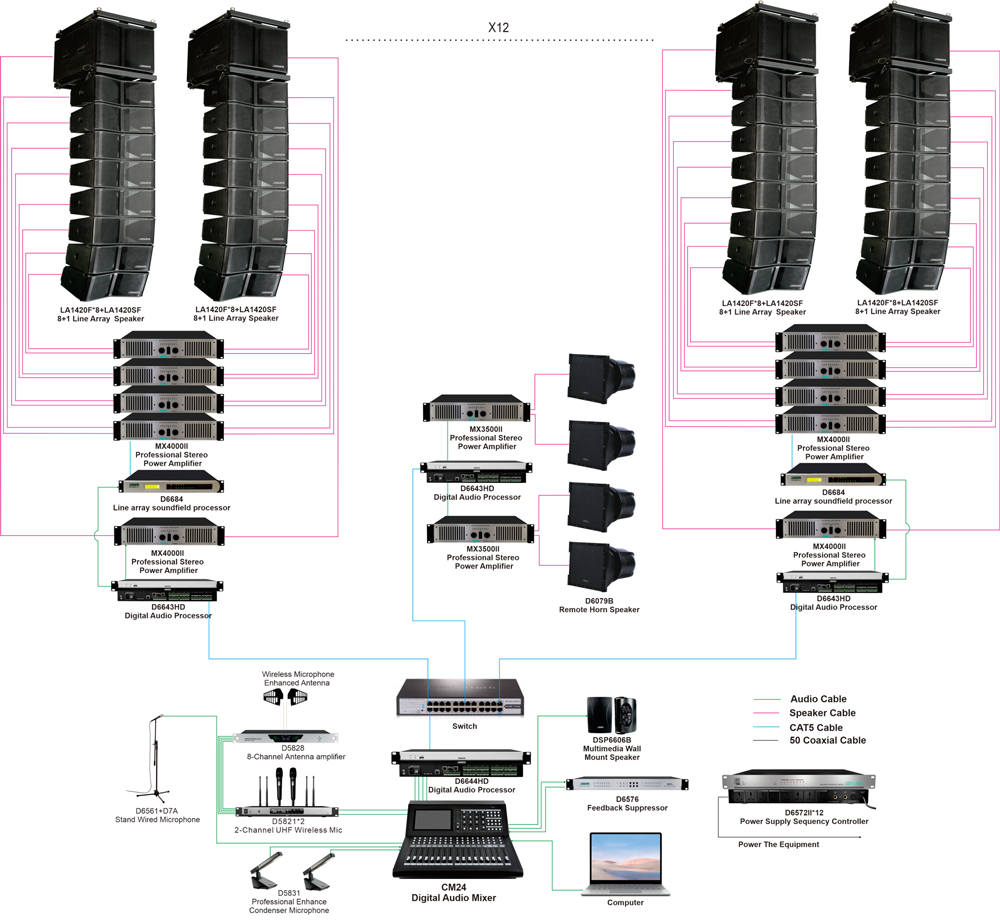

 Outdoor Stadium Solution

 Configuration Description

Speaker Layout

Audience Area:

Twelve sets of 8+1 high-directivity dual 10-inch line array speakers are deployed for distributed sound reinforcement. The line array design provides high sound pressure levels and allows for vertical angle adjustment according to the listening area. Each set is paired with a single 18-inch subwoofer to extend and enhance low-frequency response.

Field Area:

400W constant-impedance horn speakers are installed to provide supplementary sound coverage for areas not reached by the line arrays. Monitor speakers are placed in the central control room to help operators better monitor and assess the sound source status.

Signal System: Dante fiber optic ring network, resolving long-distance signal transmission challenges.

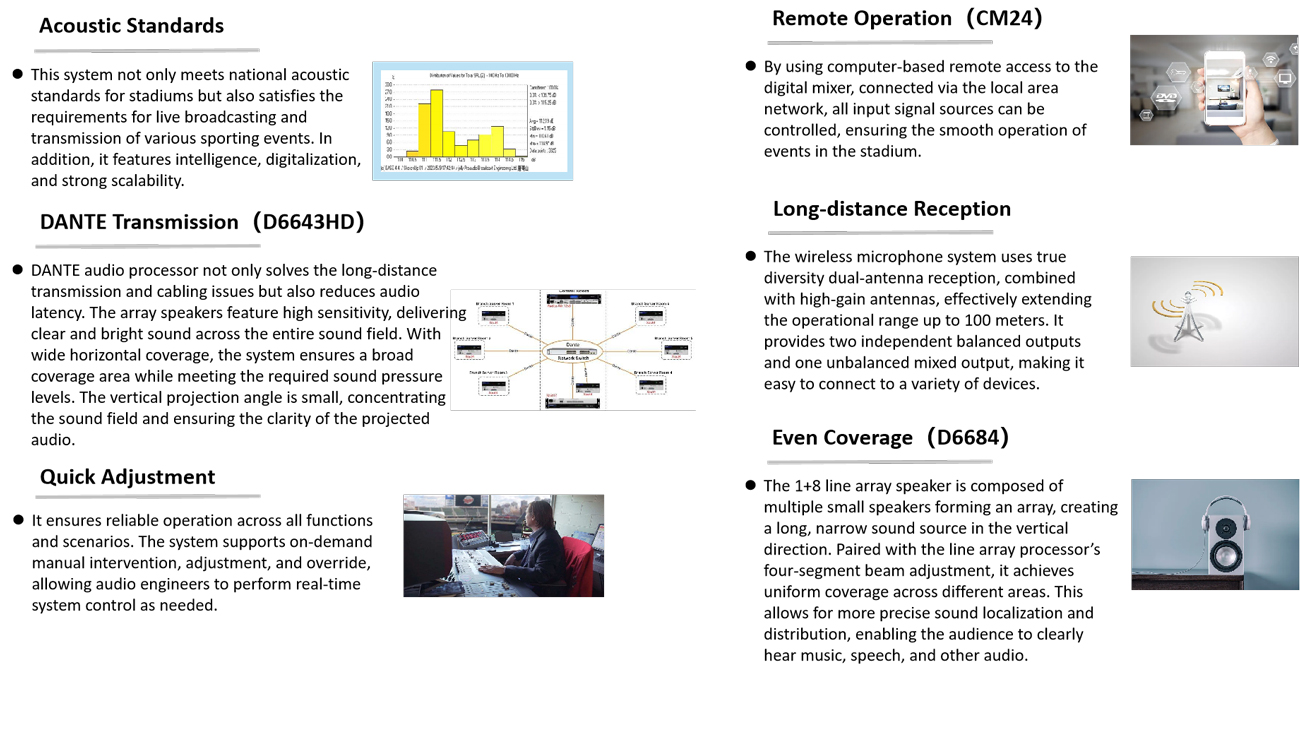

 IV. System Advantages

 V. Application Scenarios

The professional sound reinforcement system is suitable for small training rooms, open-plan offices, team meeting rooms, negotiation rooms, and video conference rooms.
