Interactive Flat Panel Solution for Small Meeting Rooms DCP-86H/DCP-75H/DCP-86H

 Pain Points of Traditional Meetings

1. Pre-meeting preparations are relatively complex.

2. Projection requires high lighting conditions in meeting rooms.

3. Presenting solutions becomes overly cumbersome when multiple people are involved.

4. Low writing efficiency.

 Solution

• By adopting a touch-enabled all-in-one machine, commonly used meeting equipment such as computers, projectors, and whiteboards can be integrated into a single device, enhancing the effectiveness of unified applications.

• One-time import of electronic files via USB flash drive can save significant time in distributing materials, eliminates the need for video connection cables, removes complicated wiring, and allows multi-person presentations without changing positions.

• Enable screen mirroring interaction via wireless connection (supports up to 9 simultaneous screen projections) with high-definition display, allowing direct reverse control of the computer during wireless projection. Meeting participants can annotate directly on the display screen, and post-meeting annotations can be emailed to attendees.

• Infrared stylus/finger direct writing (supports up to 20 touch points for simultaneous writing), one-key erasure, saving 70% of writing time.

 Solution for Single Intelligent Interactive Flat Panel

Solution Configuration

Meeting Room Capacity: 20-50㎡.

System composition: DCP-65H 65-inch Intelligent Interactive Panel.

System Advantages:

• Viewing Distance Adaptation: The optimal viewing distance for a 65-inch screen is 2.1-3.5 meters, perfectly matching the seating distance for 4-8 people.

• Sound Field Coverage: An 8-array microphone with an 8-meter pickup radius ensures no dead zones in a 20㎡ space.

• Audio System: Equipped with built-in 2*16W speakers, eliminating the need for additional external speakers to meet the amplification requirements of small meetings.

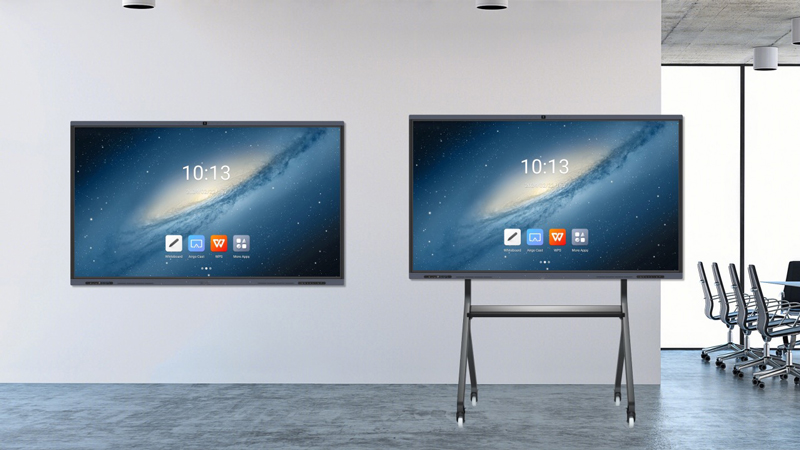

• Mobility Option: Optional mobile stand (DCP-75H) allows for quick 5-minute scene switching between meeting rooms and training rooms.

Conclusion:

• A single intelligent interactive panel = projector + electronic whiteboard + conference audio system + video system + collaboration platform, achieving dimensional reduction strikes in terms of space, cost, and efficiency. Particularly for small and medium-sized enterprises that are budget-sensitive, space-constrained, and efficiency-driven, this currently represents the optimal cost-performance and future-oriented solution.

 DCP-86H Solution for Small Meeting Rooms

Solution Configuration

Meeting Room: 50~100㎡.

System Composition: Speaking System + Amplification System + Display System.

System Function: Handheld microphone mobile audio amplification, integrated power amplifier for mixing audio sources, and smart conference tablet for real-time display of meeting content.

System Advantages:

• For the convenience of the meeting room, it is equipped with a wireless handheld microphone, making it easy for the speaker to move around.

• A DK6925 2-channel stereo output digital amplifier with built-in 7-band EQ processing, ensuring that the sound signal is accurately restored, allowing attendees to feel the true presence of the sound source, achieving high-fidelity amplification demands.

• When paired with the DSP6050 wall-mounted speaker, the dual-driver crossover design ensures vocal clarity, while the ±45° horizontal directionality combined with the diagonal layout of the dual speakers allows for coverage without dead spots, eliminating sound attenuation in the rear.

• Paired with the intelligent conference all-in-one machine DCP-85H, it can be wall-mounted. The integrated design does not take up too much conference space, and its appearance is simple and stylish, exuding a strong sense of technology, which can effectively enhance the image of the conference room for enterprises. With the addition of a projector, computers can wirelessly share screens to the large display in real-time, providing a convenient operation method for the conference room.

Note: This plan is for reference only. Please contact us if needed.

DCP-86H Solution with Conference System

Note: This plan is for reference only. Please contact us if needed.

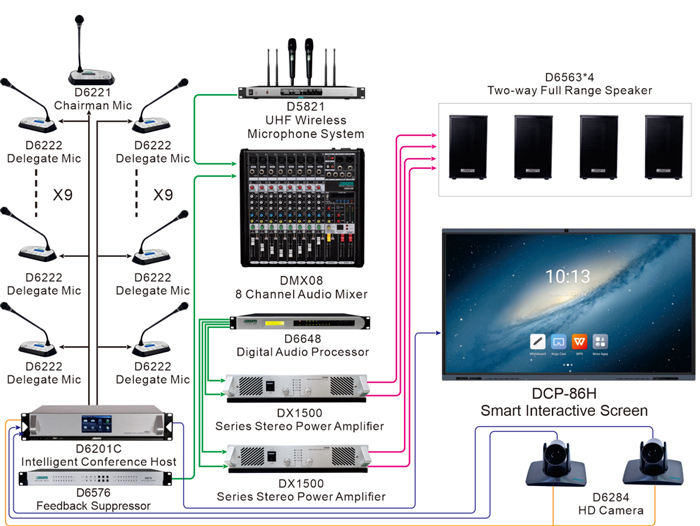

 DCP-86H + D6201C Solution with Conference System

Solution Configuration

Meeting Room: 150~200㎡

System Composition: Conference Speaking System + Amplification System + Camera Tracking System + Video Display System.

System Function: Handheld microphone and conference microphone serve as audio amplification, with a mixing console for sound source mixing and adjustment. The smart conference tablet displays meeting content in real-time.

System Advantages:

• To improve the convenience of the conference room, a wireless handheld microphone is provided to facilitate the speaker's movement.

• In conjunction with the mixing console and feedback suppressor, facilitating input and output connections for various audio sources, and performing various operations on the system audio sources to enhance sound quality.

• The four full-range high-fidelity wall-mounted speakers DSP6564 installed in the conference room meet the sound field requirements of the venue.

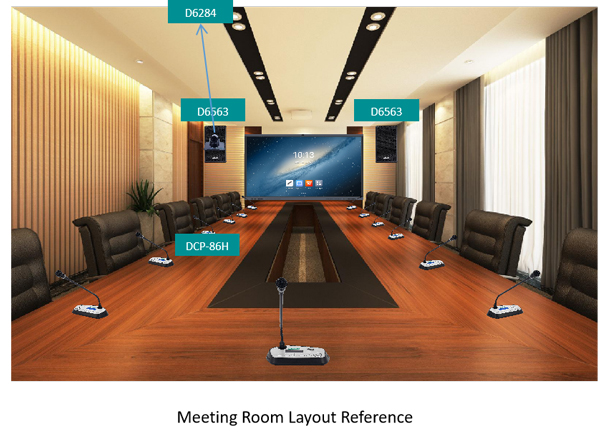

• The D6284 HD Camera serves as the video source, capable of capturing high-quality video of the conference scene. It is connected to the intelligent conference all-in-one machine DCP-85H through the D6201C four-to-two conference host, allowing real-time monitoring of the on-site footage and transmission of video signals. The DCP-86H intelligent conference all-in-one machine not only supports the automatic tracking function of the camera but also provides smooth video playback and presentation capabilities for work reports. The integrated design of this system offers a convenient operating method for the conference room, ensuring efficient display of meeting content and smooth interaction, thereby enhancing meeting efficiency and experience.

 DCP-86H Product Function

 DCP-86H Functions and Features

 DCP-86H Product Features

 DCP-86H Product Details

 Product Specifications

 Accessories and Installation Methods

Model	Product Description	Description	Picture
DCP-86W	Screen Sharing Device	For screen mirroring use
DCP-86P4	OPS Computer Module	CPU:Intel® Core™ i5 4th generation
DCP-86P10	OPS Computer Module	CPU：Intel® Core™ i5 8th generation
DCP-86MZ-65	Mobile Bracket	Suitable for 65-70 inches
DCP-86MZ-75	Mobile Bracket	Suitable for 75-86 inches

 Product Application

 Product Introduction - DSP5125C

Features：

• Working Impedance 82, Rated Power 15W.

• Sensitivity: 87dB, Frequency Response Range: 165Hz-18kHz.

• High-quality engineering plastic, injection molded, frameless designdurable, non-deforming and non-fading.

The DSP5125C, with its three key features of minimalist installation, precise vocal reproduction, and concealed deployment, has become the ideal choice for audio reinforcement in small to medium-sized conference rooms. It is particularly well-suited for pairing with smart flat panels to create modern meeting spaces with "integrated audio-visual" capabilities.

 Multiple Application Scenarios

DCP-86H series is widely used in government, enterprises, institutions, education, medical, finance, real estate,commercial retail, home entertainment and other fields.
