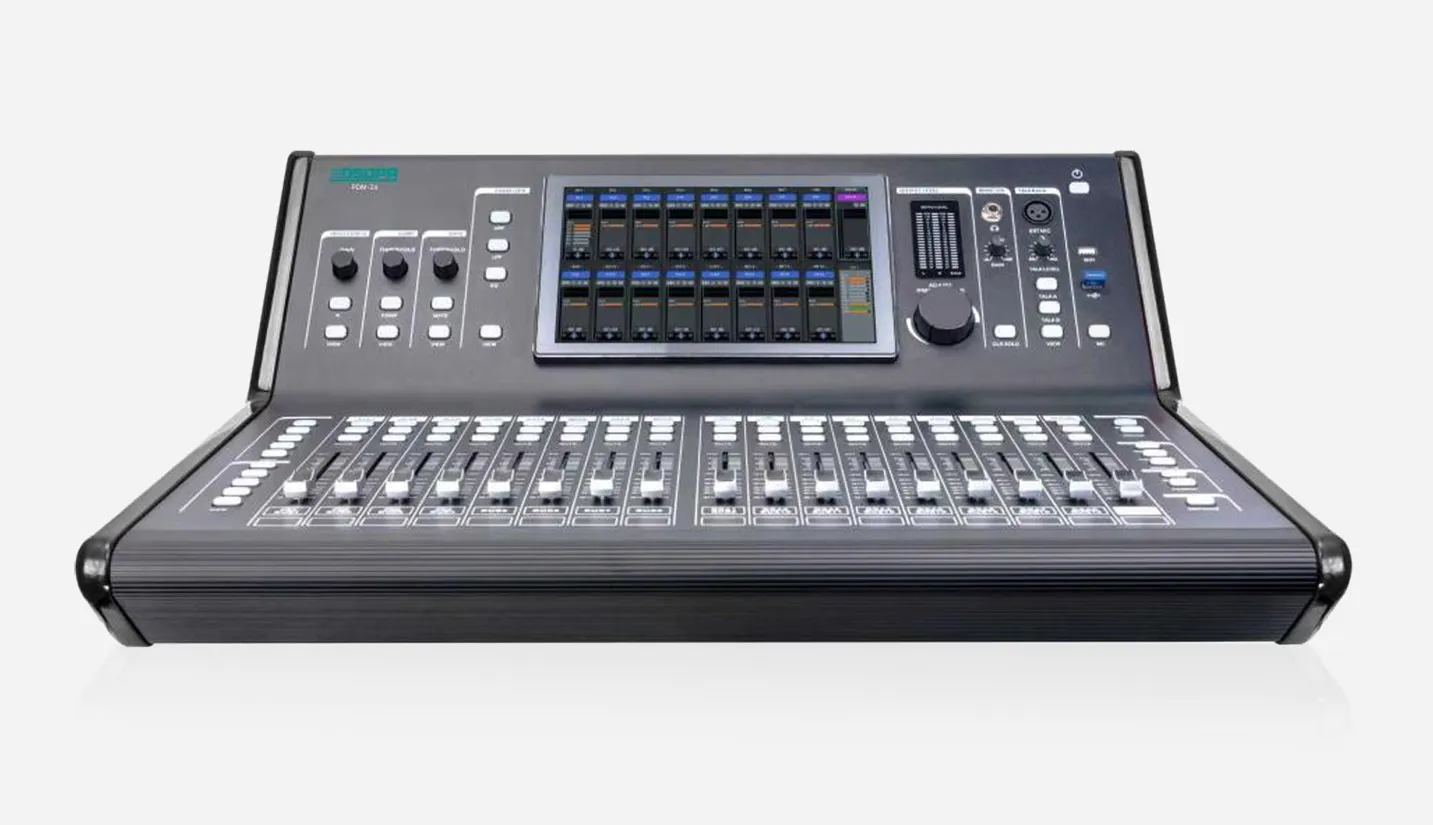

24-Channel Digital Mixing Console PDM-24

10.1-inch capacitive touchscreen with a resolution of 1280×800.
8 signal inputs in total, including 24 XLR analog input channels with microphone preamplifiers (8 COMBO connectors), 1 stereo USB playback input, and 2 digital expansion inputs.
24 XLR input channels support: 2 GEQ insert modules, 48V phantom power on/off, phase reverse, digital gain, 0–500 ms delay, pan and level control, user-definable channel name and color, 5-band parametric EQ (parametric / high-shelf / low-shelf selectable), high-pass filter, low-pass filter, noise gate, sidechain mute, and sidechain compression.
20 signal outputs in total, including 12 XLR analog outputs, 1 stereo USB recording output, 2 XLR monitor outputs, 1 stereo TRS headphone monitoring output, and 2 digital expansion outputs.
12 XLR output channels support: 4 GEQ insert modules, 0–500 ms delay, pan and level control, user-definable channel name and color, 9-band parametric EQ (parametric / high-shelf / low-shelf selectable), high-pass and low-pass filters.
17 motorized faders with 100 mm throw.
21 mix buses in total, including 16 mono buses, 4 effects buses, and 1 stereo main output bus.
Built-in 4 effects buses, offering 8 effects types: reverb, echo, chorus, wah, tremolo, distortion, pitch shift, and flanger, freely configurable for flexible application.
Built-in 4 effects buses, offering 8 effects types: reverb, echo, chorus, wah, tremolo, distortion, pitch shift, and flanger, freely configurable for flexible application.
Six 31-band GEQ modules in total, including two 31-band GEQ modules for inputs and four 31-band GEQ modules for outputs.
One talkback input with talkback function, controlled via two dedicated control buttons.
8 DCA groups and 4 mute groups.
100 scene memories, including 4 quick-access scene recall buttons.
Expansion slot supports optional modules, including Dante 2×2, AES, and stereo sound card expansion cards.
USB stereo playback and recording supported.
Wireless network control, compatible with iOS, Android, and PC platforms.
RS-232 central control interface for third-party control systems, with three commonly used baud rates selectable.
12 V console lamp power output with adjustable brightness for illumination.
Bilingual interface support (Chinese / English), with the control app automatically adapting to the system language.
Two-level panel lock to prevent accidental operation.

Datasheet

Get Quotation

DETAILS

SPECS

This product is a powerful, professional performance-grade digital mixing console distinguished by its unique design, intuitive operation, fast response, and robust signal-processing capability. It features 24 input channels with built-in microphone preamplifiers and 21 mix buses, delivering high-efficiency audio performance. The console operates at a 48 kHz sampling rate and is equipped with high-resolution 192 kHz ADC and DAC converters, ensuring precise and high-fidelity sound reproduction.

Specifications of 24-Channel Digital Mixing Console PDM-24

Model		PDM-24
Channel Processing	Input Processing Channels	24 microphone or line inputs, 1 stereo USB playback, 1 talkback microphone input, 2 expandable digital inputs.
	Output Processing Channels	16 mono BUS buses, 1 stereo MAIN bus, 1 stereo monitor, 1 stereo USB recording, 2 expandable digital outputs.
	Internal Effects Processor	4 ×effectors, mono effects, FX1 and FX2 with echo and reverb, FX3 and FX4 with chorus, wah, tremolo, distortion, pitch shift, and flanger
	GEQ Modules	6 × 31-band GEQ modules, including 2 GEQ modules for input channels; 4 GEQ modules for output channels
	Noise Gate	Threshold: -100dB to -20dB, with noise gate and side chain mute modes
	Compressor	Threshold: -48dB to +12dB Attack time: 3ms to 100ms Release time: 2x, 4x, 6x, 8x, 16x, 32x (release time is a coefficient multiplied by the attack time) Compression ratio: 1.0 to 127, Soft knee: 0 to 20dB
	Equalizer	Input: 5 bands, output: 9 bands Frequency :20Hz to 20kHz (-20dB/+12dB) Q value :0.404 to 28.852 Types :Parametric, high shelf, low shelf
	High-Pass / Low-Pass Filters (HPF / LPF Z)	High-pass: 20Hz to 400Hz (6/12/24/36/48dB slope) low-pass: 120Hz to 20kHz (6/12/24/36/48dB slope)
	Delay	0 to 500ms
	Phase	Standard/Inverted
	Scene Files	Up to 100 scenes can be saved
	Effect Library Files	Up to 100 effect presets can be saved
	Signal Processing Capability	40-bit floating-point processing, 48kHz sample rate
	A/D Converter	32-bit, 192kHz, 115dB dynamic rang
	D/A Converter	24-bit, 192kHz, 127dB dynamic range
Connectors	Microphone/Line Input XLR Interface	24, including 8 combo jacks, balanced input
	Talkback Input XLR Interface	1
	XLR Output Interface	16
	Minitor Output XLR Interface	2 Stereo
	Headphone Output TRS Interface	1 Stereo
	Digital Input / Output Expansion Interface	Supports DANTE 2X2, AES, USB stereo sound card
	USB Interface	2, for connecting USB flash drives for stereo recording/playback, connecting WiFi module for wireless control
	Lamp XLR Interface	DC 12V output, switch and brightness can be configured
	Serial Port	RS232 DB9 serial port, configurable baud rate
IN 1-24 Inputs	Input Impedance	Unbalanced 5kΩ, balanced 10kΩ
	Frequency Response	20Hz to 20kHz (+/-0.5dB)
	Maximum Input Level	22dBu
	Phantom Power	+48V(IN1toIN24)
	Gain	-12dB to 40dB
	S/N	112dB (gain = 0dB, A-weighted)
	Dynamic Range	114dB (gain = 0dB, A-weighted)
	Equivalent Input Noise	-110dBu (gain = 40dB, output = +4dB)
OUT 1-12 Outputs	THD	0.005% (gain = 0dB, output = 0dBu, unweighted) 0.006% (gain = 40dB, output = +20dBu, unweighted)
	Frequency Response	20Hz to 20kHz (+/-0.5dB)
	Maximum Output Level	+22dBu
	Output Impedance	＜100Ω
	Crosstalk	-110dB@1kHz
	Noise Floor	-86dBu (gain = 0dB)
Monitor and Headphone	Output Impedance	＜50Ω
	Maximum Output Level	+20dBu
	Noise Floor	-81dB (potentiometer = MAX, volume = 0dB)
Talkback Microphone	Input Impedance	Unbalanced 3kΩ, balanced 6kΩ
Talkback Microphone	Maximum Input Level	+6.5dBu (potentiometer = MAX, intercom volume = MAX)
Digital I/O	Digital I/O	AES/EBU, DANTE 2X2, stereo sound card
	Digital I/O	USB stereo playback and recording, supports mp3, wav, and flac file playback.
	USB Format	3.0
	Recording Format	Wav
General	Maximum Gain	80dB from analog input to output
	Channel Crosstalk	-110dB
	Display Screen	10.1 "touch screen 1280x800 resolution
	Linear Potentiometers	17 X 100mm electric linear potentiometers
	System	Android
	Network	External WiFi module, supports control from iOS, Android, and PC
Hardware	Power	AC 100-240V 50/60Hz
	Power Dissipation	50W
	Work Temperature	5℃~40℃
	Dimensions (W×D×H)	Machine: 626x527.28x225.72mm Package:775x665x370mm
	Weight	Net Weight:15kg Gross Weight:23kg
	Accessories	WiFi Module
	Accessories	Power Cable
